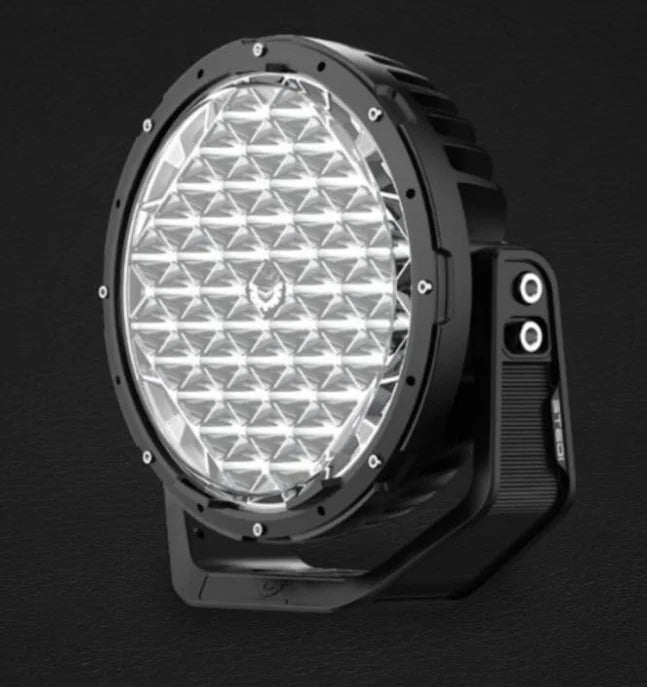

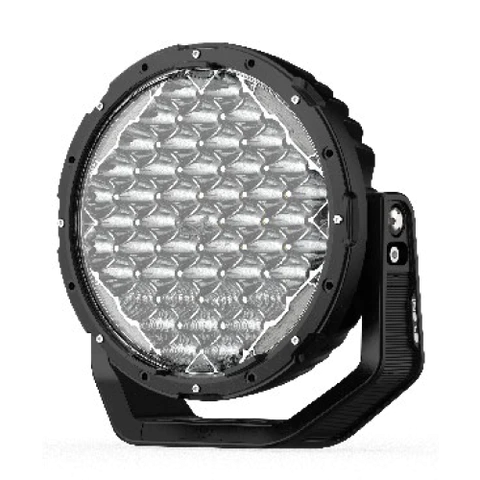

Stedi Type X Pro Plus DRL Base Module
Please Note: That this product comes as the base Module Light ONLY
The Type-X™ PRO PLUS series blends the iconic design cues of the original Type-X™ PRO with modern customisation. Featuring interchangeable bezels, fascia (available in up to 9 colour options), and matching covers, it delivers a bold, timeless look. Optional shoulder trims add an extra layer of personalisation to suit your build.
Beneath its classic aesthetic lies cutting-edge performance. Equipped with an integrated DRL, the Rugged option delivers serious output, throwing light over 1.5km. Engineered for both on- and off-road use, it offers the same uncompromising light performance and durability the PRO PLUS is known for — bringing the best of both worlds to every drive.
Tech Specs
|
OPTICAL BEAM (DRL) |
Combo Beam (36x Spot | 9x Flood | 4x DRL) |
|
OPTICAL BEAM (NON-DRL) |
Combo Beam (36x Spot | 9x Flood) |
|
TESTED LUMENS (DRL) |
29,664lm (Pair) |
|
TESTED LUMENS (NON-DRL) |
30,9222lm (Pair) |
|
1 LUX @ (DRL) |
1540 Metres (Pair) |
|
1 LUX @ (NON-DRL) |
1634 Metres (Pair) |
|
CANDELA (DRL) |
1,846,240cd (Pair) |
|
CANDELA (NON-DRL) |
1,952,000cd (Pair) |
|
AMP DRAW (DRL) |
15.9 @ 12V |
|
AMP DRAW (NON-DRL) |
15.9 @ 12V |
|
INGRESS PROTECTION |
IP68 | Submersible up to 3m |
|
COLOUR TEMP (CCT) |
5000 Kelvin |
|
VOLTAGE COMPATIBILITY |
10 - 30V DC |
|
WEIGHT (EACH – DRL) |
3.65kg (Each) |
|
WEIGHT (EACH – NON-DRL) |
2.84kg (Each) |
|
OPERATING VOLTAGE |
-40°C to 60°C |
| Brand | STEDI |
| Unit of Measure | EACH |
| Description | Stedi Type X Pro Plus DRL Base Module |
| Warranty | Five Years |
| Voltage | 12 or 24 |
| Beam Pattern | Combination |
| Light Type | LED |
| Shape | Round |
| Light Output | 29,664 Effective Lumen (Pair) |
| Environmental | IP68 |
| Size | 8.5 Inch |
| Features | • 8.5 Inch Diameter • 1 Lux At 1,540M (Per Pair) • 29,664 Effective Lumen Per Pair • Fully Waterproof IP68 Rating • Daytime Running Lights built in • Covers, Shoulder Accents & Fascia Rings Available in alternate designs & colours (Sold Separately) |
