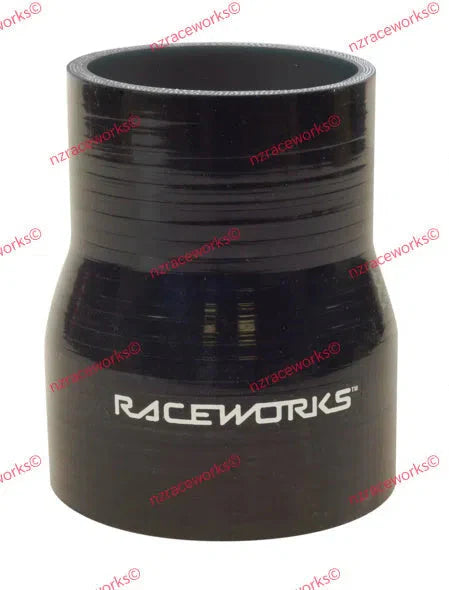

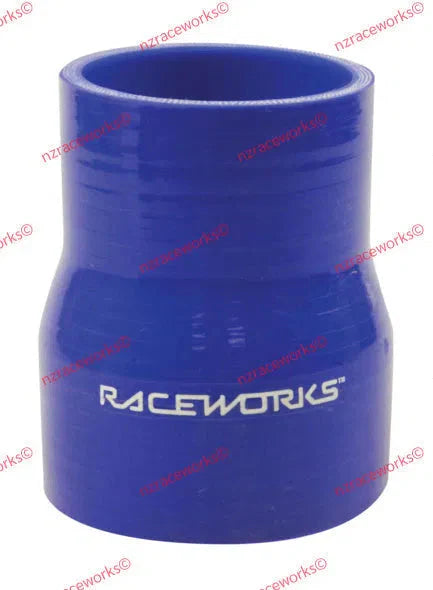

Raceworks Silicone Hose is hand made and contains 5mm walls constructed from 4-ply reinforced silicone polyester, offering burst pressures of up to 348psi (see application table for individual ratings) and a temperature range of -40 to +180 degrees Celsius. All hoses are UV, ozone and electrochemically resistant to avoid fading and separation.
NOTE: Silicone hose is not fuel safe.
All Raceworks hoses feature solid 5mm walls constructed from 4-ply reinforced silicone polyester.
| Dia. Imp. | Dia. Metric | Part # Blue | Part # Black | Lth mm | Min. Burst Pres. |
|---|---|---|---|---|---|
| 0.50³ 0.75³ | 13-19mm | SHR-050075BE | SHR-050075BK | 102mm | 348 PSI |
| 0.75³ 1.00³ | 19-25mm | SHR-075100BK | 102mm | 348 PSI | |
| 1.00³ 1.25³ | 25-32mm | SHR-100125BE | SHR-100125BK | 102mm | 305 PSI |
| 1.00³ 1.50³ | 25-38mm | SHR-100150BE | SHR-100150BK | 102mm | 305 PSI |
| 1.00³ 1.75³ | 25-44mm | SHR-100175BK | 102mm | 305 PSI | |
| 1.00³ 2.00³ | 25-51mm | SHR-100200BE | SHR-100200BK | 102mm | 305 PSI |
| 1.25ï½ 1.50ï½ | 32-38mm | SHR-125150BK | 102mm | 305 PSI | |
| 1.25ï½ 1.75ï½ | 32-44mm | SHR-125175BE | SHR-125175BK | 102mm | 305 PSI |
| 1.50ï½ 1.75ï½ | 38-44mm | SHR-150175BE | SHR-150175BK | 102mm | 305 PSI |
| 1.50ï½ 2.00ï½ | 38-51mm | SHR-150200BE | SHR-150200BK | 102mm | 305 PSI |
| 1.75ï½ 2.00ï½ | 44-51mm | SHR-175200BK | 102mm | 305 PSI | |
| 1.75ï½ 2.25ï½ | 44-57mm | SHR-175225BE | SHR-175225BK | 102mm | 218 PSI |
| 2.00ï½ 2.25ï½ | 51-57mm | SHR-200225BE | SHR-200225BK | 102mm | 218 PSI |
| 2.00ï½ 2.50ï½ | 51-63mm | SHR-200250BE | SHR-200250BK | 102mm | 218 PSI |
| 2.00ï½ 2.75ï½ | 51-70mm | SHR-200275BE | SHR-200275BK | 102mm | 218 PSI |
| 2.00ï½ 3.00ï½ | 51-76mm | SHR-200300BE | SHR-200300BK | 102mm | 218 PSI |
| 2.25ï½ 2.50ï½ | 57-63mm | SHR-225250BE | SHR-225250BK | 102mm | 174 PSI |
| 2.25ï½ 2.75ï½ | 57-70mm | SHR-225275BE | SHR-225275BK | 102mm | 174 PSI |
| 2.25ï½ 3.00ï½ | 57-76mm | SHR-225300BE | SHR-225300BK | 102mm | 174 PSI |
| 2.50ï½ 2.75ï½ | 63-70mm | SHR-250275BE | SHR-250275BK | 102mm | 174 PSI |
| 2.50ï½ 3.00ï½ | 63-76mm | SHR-250300BE | SHR-250300BK | 102mm | 174 PSI |
| 2.50ï½ 3.25ï½ | 63-83mm | SHR-250325BK | 102mm | 174 PSI | |
| 2.75ï½ 3.00ï½ | 70-76mm | SHR-275300BE | SHR-275300BK | 102mm | 174 PSI |
| 2.75ï½ 3.50ï½ | 70-89mm | SHR-275350BE | SHR-275350BK | 102mm | 174 PSI |
| 3.00ï½ 3.25ï½ | 76-83mm | SHR-300325BE | SHR-300325BK | 102mm | 174 PSI |
| 3.00ï½ 3.50ï½ | 76-89mm | SHR-300350BE | SHR-300350BK | 102mm | 174 PSI |
| 3.00ï½ 3.75ï½ | 76-95mm | SHR-300375BE | SHR-300375BK | 102mm | 174 PSI |
| 3.00ï½ 4.00ï½ | 76-102mm | SHR-300400BE | SHR-300400BK | 102mm | 174 PSI |
| 3.25ï½ 3.50ï½ | 83-89mm | SHR-325350BE | SHR-325350BK | 102mm | 174 PSI |
| 3.25³ 3.75³ | 82-95mm | SHR-325375BE | SHR-325375BK | 102mm | 174 PSI |
| 3.25ï½ 4.00ï½ | 83-102mm | SHR-325400BE | SHR-325400BK | 102mm | 174 PSI |
| 3.50ï½ 3.75ï½ | 89-95mm | SHR-350375BE | SHR-350375BK | 102mm | 145 PSI |
| 3.50ï½ 4.00ï½ | 89-102mm | SHR-350400BE | SHR-350400BK | 102mm | 145 PSI |
| 3.50ï½ 4.50ï½ | 89-114mm | SHR-350450BE | SHR-350450BK | 102mm | 145 PSI |
| 3.75ï½ 4.00ï½ | 95-102mm | SHR-375400BE | SHR-375400BK | 125mm | 145 PSI |

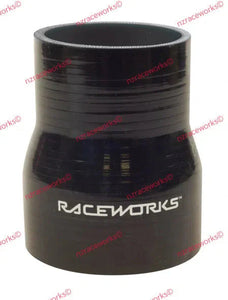

| 3.75³ 4.50³ | 95-114mm | SHR-375450BE | SHR-375450BK | 125mm | 145 PSI |
| 4.00ï½ 4.50ï½ | 102-114mm | SHR-400450BE | SHR-400450BK | 125mm | 145 PSI |
| 4.00ï½ 5.00ï½ | 102-127mm | SHR-400500BE | SHR-400500BK | 125mm | 145 PSI |
| 4.50ï½ 5.00ï½ | 114-127mm | SHR-450500BE | SHR-450500BK | 125mm | 145 PSI |
| 5.00ï½ 6.00ï½ | 127-152mm | SHR-500600BE | SHR-500600BK | 125mm | 145 PSI |
