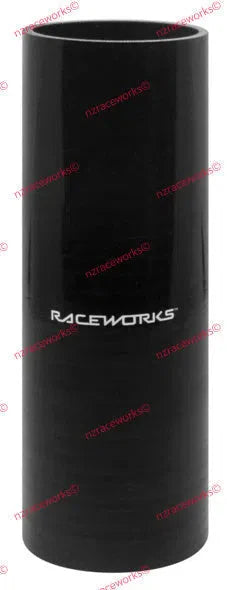

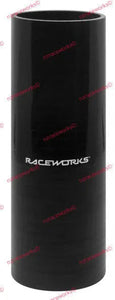

RACEWORKS SILICONE HOSE STRAIGHT -MEDIUM
Raceworks Silicone Hose is hand made and contains 5mm walls constructed from 4-ply reinforced silicone polyester, offering burst pressures of up to 348psi (see application table for individual ratings) and a temperature range of -40 to +180 degrees Celsius. All hoses are UV, ozone and electrochemically resistant to avoid fading and separation.
NOTE: Silicone hose is not fuel safe.
All Raceworks hoses feature solid 5mm walls constructed from 4-ply reinforced silicone polyester.

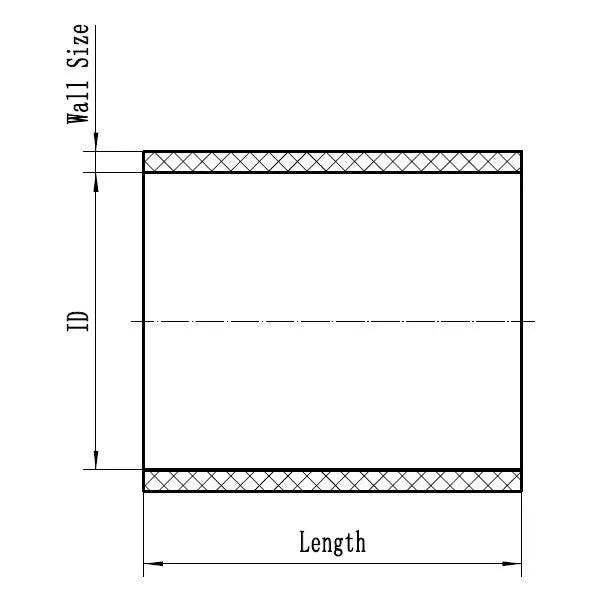

| Dia. Imp. | Dia. Metric | Part # Blue | Part # Black | Lth mm | Min. Burst Pres. |
|---|---|---|---|---|---|
| 0.50 | 13mm | SHS-050BEM | SHS-050BKM | 254mm | 348 PSI |
| 1.00 | 25mm | SHS-100BEM | SHS-100BKM | 254mm | 348 PSI |
| 1.25 | 32mm | SHS-125BEM | SHS-125BKM | 254mm | 305 PSI |
| 1.50 | 38mm | SHS-150BEM | SHS-150BKM | 254mm | 305 PSI |
| 1.75 | 44mm | SHS-175BEM | SHS-175BKM | 254mm | 305 PSI |
| 2.00 | 51mm | SHS-200BEM | SHS-200BKM | 254mm | 218 PSI |
| 2.25 | 57mm | SHS-225BEM | SHS-225BKM | 254mm | 174 PSI |
| 2.50 | 63mm | SHS-250BEM | SHS-250BKM | 254mm | 174 PSI |
| 2.75 | 70mm | SHS-275BEM | SHS-275BKM | 254mm | 174 PSI |
| 3.00 | 76mm | SHS-300BEM | SHS-300BKM | 254mm | 174 PSI |
| 3.25 | 82mm | SHS-325BEM | SHS-325BKM | 254mm | 174 PSI |
| 3.75 | 95mm | SHS-375BEM | SHS-375BKM | 254mm | 145 PSI |
| 4.00 | 102mm | SHS-400BEM | SHS-400BKM | 254mm | 145 PSI |
| 4.50 | 114mm | SHS-450BEM | SHS-450BKM | 254mm | 145 PSI |
| 5.00 | 127mm | SHS-500BEM | SHS-500BKM | 254mm | 145 PSI |
| 6.00 | 152mm | SHS-600BEM | SHS-600BKM | 254mm | 145 PSI |
