RACEWORKS AN ORB Male to Barb
Each Raceworks Orb Adapter comes with an O-ring.

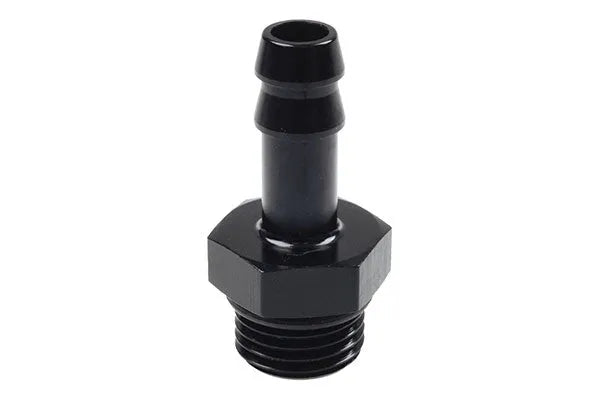

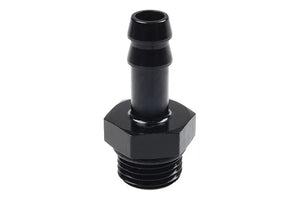

AN ORB to Barb Straight
| AN | Barb | Part Number |
|---|---|---|
| -4 | 3/8Â | RWF-414-04-06BK |
| -6 | 1/4Â | RWF-414-06-04BK |
| -6 | 5/16Â | RWF-414-06-05BK |
| -6 | 3/8Â | RWF-414-06-06BK |
| -8 | 5/16Â | RWF-414-08-05BK |
| -8 | 3/8Â | RWF-414-08-06BK |
| -8 | 1/2Â | RWF-414-08-08BK |
| -10 | 5/16Â | RWF-414-10-05BK |
| -10 | 3/8Â | RWF-414-10-06BK |
| -10 | 1/2Â | RWF-414-10-08BK |
| -10 | 5/8Â | RWF-414-10-10BK |
| -12 | 1/2 | RWF-414-12-08BK |
| -12 | 5/8 | RWF-414-12-10BK |
AN ORB To Barb 90°
| AN | Barb | Part Number |
|---|---|---|
| -6 | 1/4 | RWF-415-06-04BK |
| -6 | 5/16 | RWF-415-06-05BK |
| -6 | 3/8 | RWF-415-06-06BK |
| -8 | 5/16 | RWF-415-08-05BK |
| -8 | 3/8 | RWF-415-08-06BK |
| -8 | 1/2 | RWF-415-08-08BK |
| -10 | 3/8 | RWF-415-10-06BK |
| -10 | 1/2 | RWF-415-10-08BK |
| -12 | 1/2 | RWF-415-12-08BK |
| -12 | 5/8 | RWF-415-12-10BK |
