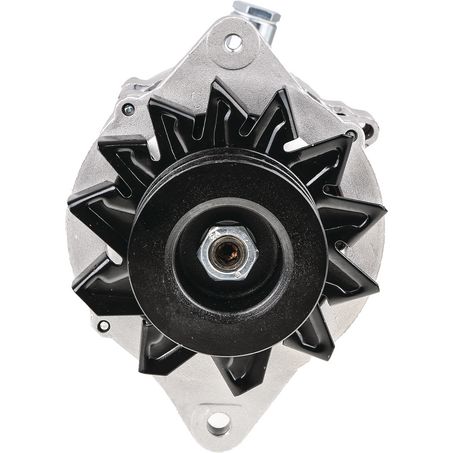

OEX Alternator 12V 70A Hitachi Style

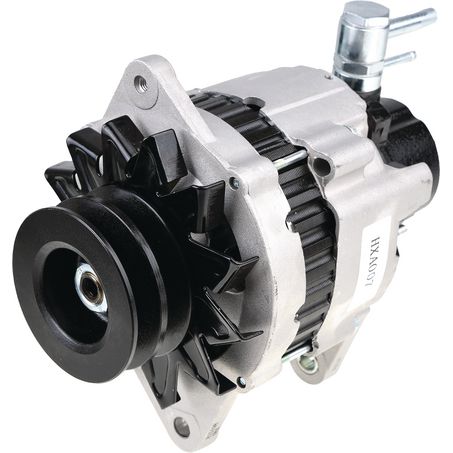

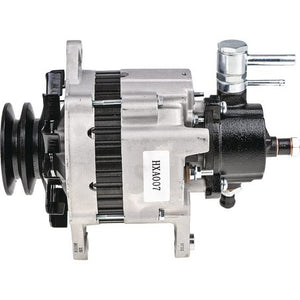

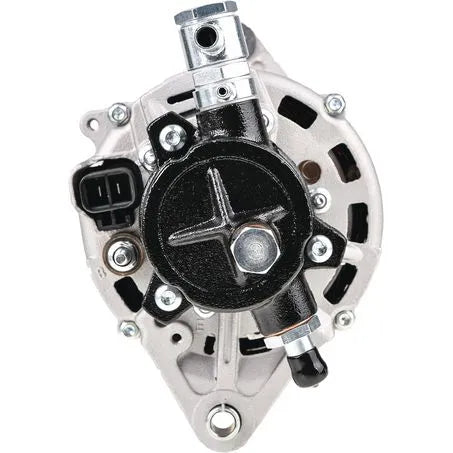

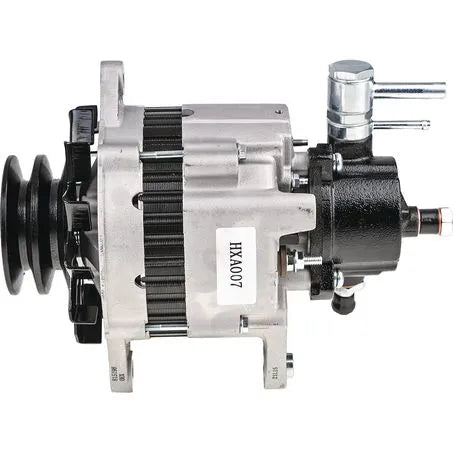

NEW 12 volt 70 amp alternator with AA section pulley and 50cc vac pump. Unit has 2 terminal connector. Confirm vac pump, voltage, output, regulator plug, pulley and mounting with original to confirm suitability.
Suits Holden Rodeo, Isuzu Elf, Mazda B2200, Nissan 720, Atlas, Caravan, Navara, Patrol, Safari
TD23, TD27, TD42
| Adjusting Hole Diameter | M8 x 1.25 |
| Inside Mounting Legs | 80mm |

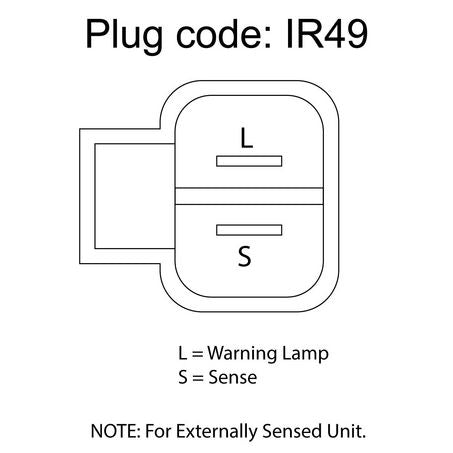

| Pin Code | IR49 |
| Pivot Hole Diameter | 10 |
| Power Rating [Amp] | 70 |
| Pulley Outside Diameter | 84mm |
| Pulley Section | AA |
| Regulator Type | Internal |
| Suits Unit Make | Hitachi |
| Voltage | 12 |
| Note | 50cc Vac Pump. Internally Regulated. Adaptor to suit HXK-32, HXK-24 |
| Alternator Mount | Twin Leg |
| Mount Cnt to Cnt | 175mm |
HXK36 - (Wiring harness adaptor plug)
Required in application for which a battery ‘sense’ is not already installed in the existing alternator
regulator harness.
There is a requirement to check for battery power (positive) to the ‘S’ terminal of the vehicle alternator
regulator harness. This should be performed with a test light or voltmeter while the ignition is in the ‘Off’
position.
If the harness does not have power to "S" terminal, the HXK-36 will be required.
Installation instruction: Plug HXK36 to the alternator and connect the eyelet terminal to
Battery Positive as pictured below, with the opposite end plugged to the wiring harness of the vehicl
