| Part No. | ACX0821L |
| Type | ELECTRICAL CABLE |
| Brand | OEX |
| Unit of Measure | ROLL |

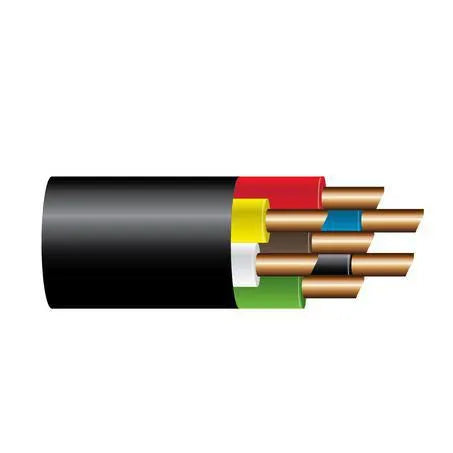

| Description | OEX 7 Core Trailer Cable, With Black Sheath |
| Warranty | One Year |
| Conductor Strand Diameter | .3mm |
| Number of Conductor Strands | 9, 16, 26, 65 |
| Trace Colour | No Trace |
| Conductor Cross Section | 0.64mm2, 1.13mm2, 1.84mm2, 4.59mm2 |
| Note | Oxygen Free Copper |
| Length | 100m |
| Cable Size | 2.5mm, 3mm, 4mm,6mm |
| Cable Type | Sheathed |
| Gauge | 19, 16, 15, 11 |
| Item Type | Seven Core Cable |
| Environmental | UV Stabilized |
| Sheath Colour | Black |
| Cable Colour | Red, Black, Green, Yellow, Blue, White, Brown |
| Temp Rating | V90 (90C) |
| Voltage Rating | Up to 110V |
| Conductor Material | Copper |
| Compliance | AS/NZ 3808:2000 & RoHS |
| Insulation Type | PVC |
| Weight | 8.17kg |
| Features | • OEX 7 Core Trailer Cable • Colour: Red, Black, Green, Yellow, Blue, White, Brown with Black Sheath • Suitable for voltages up to 120V • Cable diameter: 2.5, 3, 4, 6mm • Cable Length: 10, 30, 100 metres • Amp rating: 7A at 30°C • Oxygen Free High Conductivity Copper • UV Stabilised and ROHS approved • Temp rating: V90 (90°C) • All Australian premium quality copper • 100% Australian owned and made |
