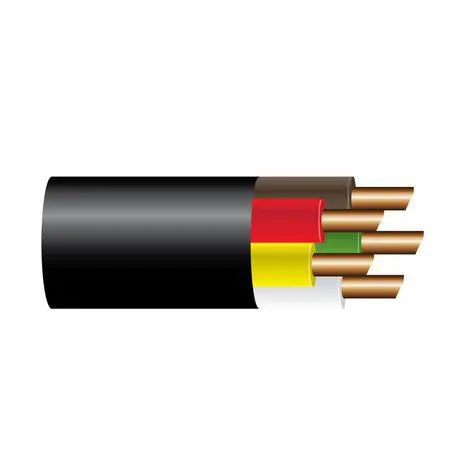

OEX 5 Core Trailer Cable, With Black Sheath

Name: OEX 5 Core Trailer Cable, With Black Sheath
Brand: OEX
SKU: ACX0820-6BL
Price: 29.0 NZD
Availability: InStock

ACX0820-6BL

Tax included. Shipping calculated at checkout.

Size

Length

Quantity

Quantity must be 1 or more

Part No.	ACX0815L
Type	ELECTRICAL CABLE
Brand	OEX
Unit of Measure	ROLL
Description	OEX 5 Core Trailer Cable, With Black Sheath
Warranty	One Year
Conductor Strand Diameter	.3mm
Number of Conductor Strands	9, 16, 26, 65
Conductor Cross Section	0.64mm2, 1.13mm2, 1.84mm2, 4.59mm2
Note	Oxygen Free Copper
Length	6m, 30m, 30m, 100m, 500m
Cable Size	2.5mm, 3mm, 4mm, 6mm
Gauge	19, 16, 15, 11
Item Type	Five Core Cable
Environmental	UV Stabilized
Sheath Colour	Black
Cable Colour	Red, Green, Yellow, White, Brown (control Red, white, Blue, Red, Violet)
Temp Rating	V90 (90C)
Voltage Rating	Up to 110V
Conductor Material	Copper
Compliance	AS/NZ 3808:2000 & RoHS
Insulation Type	PVC
Weight
Features	• OEX 5 Core Trailer Cable • Colour: Red, Green, Yellow, White, Brown with Black Sheath • Suitable for voltages up to 120V • Cable diameter: 2.5,3,4,6mm • Cable Length: 6m,10m,30m,100m, 500m • Amp rating: 30A at 30°C • Oxygen Free High Conductivity Copper • UV Stabilised and ROHS approved • Temp rating: V90 (90°C) • All Australian premium quality copper • 100% Australian owned and made
