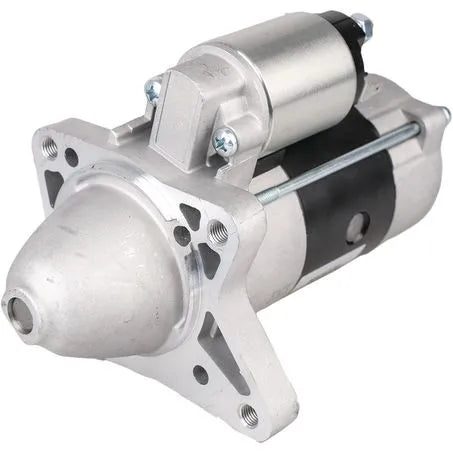

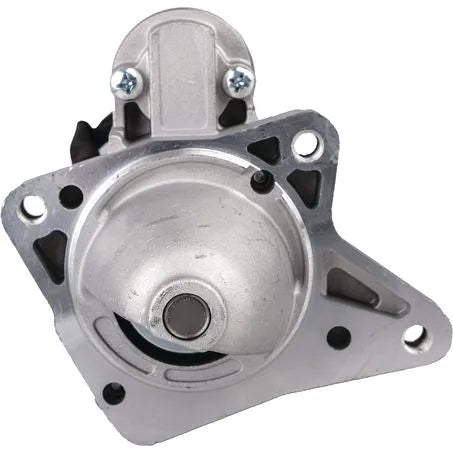

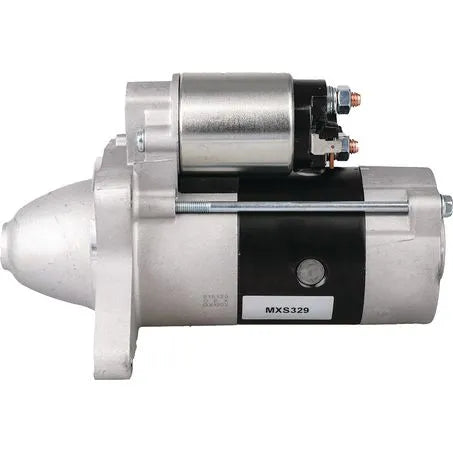

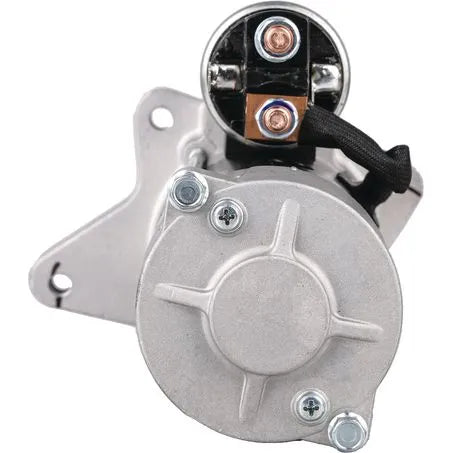

STARTER 12V 10TH CW MITSUBISHI STYLE
| Flange Diameter | 81mm |
| Mount Centres A | 137mm |
| Mount Centres B | 95mm |
| Mount Centres C | 75mm |
| Mount Hole Diameter | M10x1.25 |
| Number of Teeth | 10 |
| Overall Length | 230mm |
| Pinion at Rest | 18mm |
| Pinion Diameter | 32mm |
| Power Rating | 2.2kW |
| Rotation | CW |
| Suits Unit Make | Mitsubishi |
| Voltage | 12 |
| Note | Worn ignition switch barrel can delay key return from start position to ignition position this delay can potentially damage the starter motor (held in mesh). Must inspect the function of the key prior to new starter fitment Will replace 9 tooth, 11 tooth and 12 tooth units. |
| Item Type | Starter Motor |
| New / Reman. | New |
| Starter Mount Type | 3 Hole |
| Wet / Dry Clutch | Dry |
| Weight | 4.7kg |
| Features | • Worn ignition switch barrel can delay key return from start position to ignition position this delay can potentially damage the starter motor (held in mesh). • Must inspect the function of the key prior to new starter fitment • Will replace 9 tooth, 11 tooth and 12 tooth units. |
| Must inspect the function of the IG key prior to new starter fitment. Will replace 9 tooth, 11 tooth and 12 tooth units. |
| FORD COURIER PC D 2.2L R2 SOHC 8v Diesel Direct Inj. 4cyl 47kW Cab Chassis RWD [01/88 - 04/96] |
| FORD COURIER PC D 2.2L R2 SOHC 8v Diesel Direct Inj. 4cyl 47kW Utility RWD [06/85 - 04/96] |
| FORD COURIER PD TD 2.5L WL-T SOHC 12v Turbo Diesel 4cyl 63kW Utility AWD [05/96 - 02/99] |
| FORD COURIER PD TD 2.5L WL-T SOHC 12v Turbo Diesel 4cyl 63kW Utility RWD [05/96 - 02/99] |
| FORD COURIER PD TD 2.5L WL-T SOHC 12v Turbo Diesel 4cyl 64kW Cab Chassis AWD [05/96 - 02/99] |
| FORD COURIER PD TD 2.5L WL-T SOHC 12v Turbo Diesel 4cyl 64kW Cab Chassis RWD [05/96 - 02/99] |
| FORD COURIER PE D 2.5L WL Diesel 64kW Cab Chassis AWD [02/99 - 11/02] |
| FORD COURIER PE D 2.5L WL Diesel 64kW Cab Chassis RWD [02/99 - 11/02] |
| FORD COURIER PE TD 2.5L WLAT (12 V) SOHC 12v Turbo Diesel 4cyl 86kW Cab Chassis AWD [02/99 - 11/02] |
| FORD COURIER PE TD 2.5L WLAT (12 V) SOHC 12v Turbo Diesel 4cyl 86kW Cab Chassis RWD [02/99 - 11/02] |
| FORD COURIER PE TD 2.5L WLAT (12 V) SOHC 12v Turbo Diesel 4cyl 86kW Utility AWD [02/99 - 11/02] |
| FORD COURIER PE TD 2.5L WLAT (12 V) SOHC 12v Turbo Diesel 4cyl 86kW Utility RWD [02/99 - 11/02] |
| FORD COURIER PG TD 2.5L WLAT (12 V) SOHC 12v Turbo Diesel 4cyl 86kW Cab Chassis AWD [11/02 - 07/04] |
| FORD COURIER PG TD 2.5L WLAT (12 V) SOHC 12v Turbo Diesel 4cyl 86kW Cab Chassis RWD [11/02 - 07/04] |
| FORD COURIER PG TD 2.5L WLAT (12 V) SOHC 12v Turbo Diesel 4cyl 86kW Utility AWD [11/02 - 07/04] |
| FORD COURIER PG TD 2.5L WLAT (12 V) SOHC 12v Turbo Diesel 4cyl 86kW Utility RWD [11/02 - 07/04] |
| FORD COURIER PH TD 2.5L WL-T SOHC 12v Turbo Diesel 4cyl 86kW Cab Chassis AWD [08/04 - 12/06] |
| FORD COURIER PH TD 2.5L WLAT (12 V) SOHC 12v Turbo Diesel 4cyl 82kW Cab Chassis AWD [08/04 - 12/06] |
| FORD COURIER PH TD 2.5L WLAT (12 V) SOHC 12v Turbo Diesel 4cyl 82kW Cab Chassis RWD [08/04 - 12/06] |
| FORD COURIER PH TD 2.5L WLAT (12 V) SOHC 12v Turbo Diesel 4cyl 82kW Utility AWD [08/04 - 12/06] |
| FORD COURIER PH TD 2.5L WLAT (12 V) SOHC 12v Turbo Diesel 4cyl 82kW Utility RWD [08/04 - 12/06] |
| FORD COURIER PH TD 2.5L WLAT (12 V) SOHC 12v Turbo Diesel 4cyl 86kW Cab Chassis RWD [08/04 - 12/06] |
| FORD COURIER PH TD 2.5L WLAT (12 V) SOHC 12v Turbo Diesel 4cyl 86kW Utility AWD [08/04 - 12/06] |
| FORD COURIER PH TD 2.5L WLAT (12 V) SOHC 12v Turbo Diesel 4cyl 86kW Utility RWD [08/04 - 12/06] |
| FORD COURIER S1D4 D 2.5L WL Diesel 64kW Cab Chassis AWD [02/99 - 11/02] |
| FORD COURIER S1E4 D 2.5L WL Diesel 64kW Cab Chassis AWD [11/02 - 08/04] |
| FORD COURIER S2E4 D 2.5L WL Diesel 64kW Cab Chassis AWD [01/98 - 12/06] |
| FORD COURIER SAC3 D 2.5L WL Diesel 64kW Cab Chassis RWD [05/96 - 02/99] |
| FORD COURIER SACP D 2.5L WL Diesel 64kW Cab Chassis RWD [12/95 - 02/99] |
| FORD COURIER SACW D 2.5L WL Diesel 64kW Cab Chassis RWD [05/96 - 02/99] |
| FORD COURIER SBD4 D 2.5L WL Diesel 64kW Cab Chassis AWD [11/02 - 08/04] |
| FORD COURIER SDD4 TD 2.5L WLAT,WLT Diesel 86kW Cab Chassis RWD [02/99 - 11/02] |
| FORD COURIER SGH3 D 2.5L WL Diesel 64kW Cab Chassis AWD [05/96 - 02/99] |
| FORD COURIER TDdi 2.5L WL-T SOHC 12v Turbo Diesel 4cyl 80kW Utility AWD [03/98 - 09/05] |
| FORD ECONOVAN SGM3 2.5L WL Diesel 64kW Van RWD [01/96 - 12/05] |
| FORD FREDA SG5WF 2.5L J5-DE Petrol Van RWD [06/95 - 04/02] |
| FORD FREDA SGLWF 2.5L WLAT,WLT Diesel 86kW Van RWD [06/95 - 02/99] |
| FORD RANGER PJ TD 3.0L WEAT DOHC 16v Turbo Diesel Direct Inj. 4cyl 115kW Utility AWD [11/06 - 03/09] |
| FORD RANGER PJ TD 3.0L WEAT DOHC 16v Turbo Diesel Direct Inj. 4cyl 115kW Utility RWD [11/06 - 03/09] |
| FORD RANGER PJ TDdi 2.5L WLAT (16 V) DOHC 16v Turbo Diesel Direct Inj. 4cyl 105kW Cab Chassis RWD [11/06 - 03/09] |
| FORD RANGER PJ TDdi 2.5L WLAT (16 V) DOHC 16v Turbo Diesel Direct Inj. 4cyl 105kW Utility RWD [11/06 - 03/09] |
| FORD RANGER PJ TDdi 3.0L WEAT DOHC 16v Turbo Diesel Direct Inj. 4cyl 115kW Cab Chassis AWD [11/06 - 03/09] |
| FORD RANGER PJ TDdi 3.0L WEAT DOHC 16v Turbo Diesel Direct Inj. 4cyl 115kW Cab Chassis RWD [11/06 - 03/09] |
| FORD RANGER PK TDdi 2.5L WLAT (16 V) DOHC 16v Turbo Diesel Direct Inj. 4cyl 105kW Utility RWD [03/09 - 11/11] |
| FORD RANGER PK TDdi 3.0L WEAT DOHC 16v Turbo Diesel Direct Inj. 4cyl 115kW Cab Chassis AWD [03/09 - 11/11] |
| FORD RANGER PK TDdi 3.0L WEAT DOHC 16v Turbo Diesel Direct Inj. 4cyl 115kW Cab Chassis RWD [03/09 - 11/11] |
| FORD RANGER PK TDdi 3.0L WEAT DOHC 16v Turbo Diesel Direct Inj. 4cyl 115kW Utility AWD [03/09 - 11/11] |
| FORD RANGER PK TDdi 3.0L WEAT DOHC 16v Turbo Diesel Direct Inj. 4cyl 115kW Utility RWD [03/09 - 11/11] |
| FORD RANGER PX i 2.5L DP-AT DOHC 16v Petrol 4cyl 122kW Cab Chassis RWD [11/11 - 04/14] |
| FORD RANGER PX i 2.5L DP-AT DOHC 16v Petrol 4cyl 122kW Utility RWD [11/11 - 04/14] |
| FORD TRANSIT VF,VG TD 2.5L 4GF OHV 8v Turbo Diesel Direct Inj. 4cyl 63kW Cab Chassis RWD [08/94 - 03/00] |
| FORD TRANSIT VF,VG TD 2.5L 4GF OHV 8v Turbo Diesel Direct Inj. 4cyl 63kW Cab Chassis RWD [11/92 - 08/94] |
| MAZDA B-SERIES UF 2.5L WL Diesel 64kW Cab Chassis AWD [01/96 - 12/99] |
| MAZDA B-SERIES UF 2.5L WL Diesel 64kW Cab Chassis RWD [01/96 - 12/99] |
| MAZDA B-SERIES,BOUNTY,BRAVO,PROCEED UN B2500 BRAVO TD 2.5L WL-T SOHC 12v Turbo Diesel 4cyl 86kW Utility RWD [02/99 - 10/06] |
| MAZDA B-SERIES,BOUNTY,BRAVO,PROCEED UN B2500 BRAVO TD 2.5L WLF5 SOHC 12v Turbo Diesel 4cyl 86kW Utility AWD [02/99 - 03/05] |
| MAZDA B-SERIES,BRAVO,PROCEED UFY0 B2500 BRAVO TD 2.5L WL-T SOHC 12v Turbo Diesel 4cyl 64kW Utility AWD [04/96 - 02/99] |
| MAZDA B-SERIES,BRAVO,PROCEED UFY0 B2500 BRAVO TD 2.5L WL-T SOHC 12v Turbo Diesel 4cyl 64kW Utility RWD [04/96 - 02/99] |
| MAZDA B-SERIES,BRAVO,PROCEED UN B2500 BRAVO TD 2.5L WL-T SOHC 12v Turbo Diesel 4cyl 86kW Cab Chassis RWD [02/99 - 03/05] |
| MAZDA B-SERIES,BRAVO,PROCEED UN B2500 BRAVO TD 2.5L WLF5 SOHC 12v Turbo Diesel 4cyl 86kW Cab Chassis AWD [02/99 - 03/05] |
| MAZDA BONGO SGL5 2.5L WLAT,WLT Diesel 86kW Van RWD [01/95 - 08/01] |
| MAZDA BONGO,E-SERIES SGL35,SGLW TD 2.5L WL-T SOHC 12v Turbo Diesel 4cyl 92kW Bus RWD [06/95 - 09/99] |
| MAZDA BONGO,E-SERIES SGL35,SGLW TD 2.5L WL-T SOHC 12v Turbo Diesel 4cyl 92kW Bus RWD [09/99 - 10/01] |
| MAZDA BONGO,E-SERIES SGL5,SGLR TD 2.5L WL-T SOHC 12v Turbo Diesel 4cyl 92kW Bus AWD [06/95 - 09/99] |
| MAZDA BOUNTY UNY0W 2.5L WL Diesel 64kW Cab Chassis RWD [01/98 - 12/06] |
| MAZDA BOUNTY UNY0W 2.5L WLAT,WLT Diesel 86kW Cab Chassis AWD [01/98 - 12/06] |
| MAZDA BT-50 UNY0E3 CDVi 3.0L WEAT DOHC 16v Diesel Direct Inj. 4cyl 115kW Cab Chassis AWD [12/06 - 09/11] |
| MAZDA BT-50 UNY0E3 CDVi 3.0L WEAT DOHC 16v Diesel Direct Inj. 4cyl 115kW Cab Chassis RWD [12/06 - 09/11] |
| MAZDA BT-50 UNY0E3 CDVi 3.0L WEAT DOHC 16v Diesel Direct Inj. 4cyl 115kW Utility AWD [10/06 - 12/15] |
| MAZDA BT-50 UNY0E3 CDVi 3.0L WEAT DOHC 16v Diesel Direct Inj. 4cyl 115kW Utility RWD [12/06 - 12/15] |
| MAZDA BT-50 UNY0W3 CDVi 2.5L WLAT (16 V) DOHC 16v Turbo Diesel Direct Inj. 4cyl 105kW Cab Chassis RWD [12/06 - 09/11] |
| MAZDA BT-50 UNY0W3 MRZ-CD 2.5L WLAA DOHC 16v Turbo Diesel Direct Inj. 4cyl 105kW Utility RWD [08/06 - 06/13] |
| MAZDA E-SERIES SKY0W 2.5L WL Diesel 64kW Van RWD [01/99 - 12/05] |
| MAZDA E-SERIES SRY0W 2.5L WL Diesel 64kW Van RWD [01/97 - 12/00] |
| MAZDA MPV LVLR 2.5L WL-T Diesel 86kW MPV AWD [10/95 - 05/99] |
| MAZDA MPV LVLW I TD 2.5L WL11 SOHC 12v Turbo Diesel 4cyl 85kW MPV RWD [05/96 - 09/99] |
| MAZDA PROCEED UVL6R 2.5L WLAT,WLT Diesel 86kW Utility AWD [03/96 - 12/99] |
| MAZDA T-SERIES,TITAN WGE1,WGE4,WGEA,WGFA T4000 4.0L TF OHV 8v Diesel Direct Inj. 4cyl 79kW Cab Chassis RWD [05/95 - 06/00] |
| MAZDA TITAN SY54L 2.5L WLAT/WLT Diesel Truck RWD [10/00 ON] |
| MAZDA TITAN SY54T T2500 2.5L WL-T Diesel Cab Chassis RWD [10/00 ON] |
| MAZDA TITAN SY56L 2.5L WLAT/WLT Diesel Truck RWD [10/00 ON] |
| MAZDA TITAN SY56T 2.5L WLAT/WLT Diesel Truck RWD [10/00 ON] |
| MITSUBISHI DELICA SK56VM 2.5L WL Diesel 64kW Van RWD [09/99 - 01/04] |
