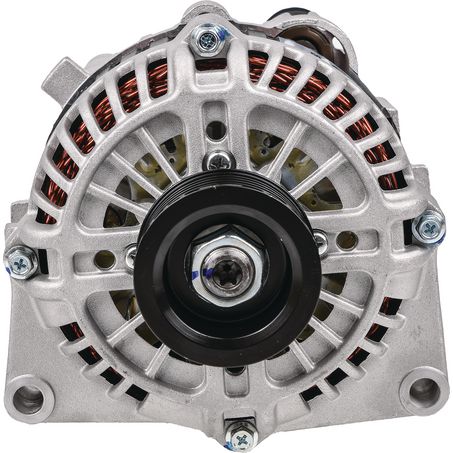

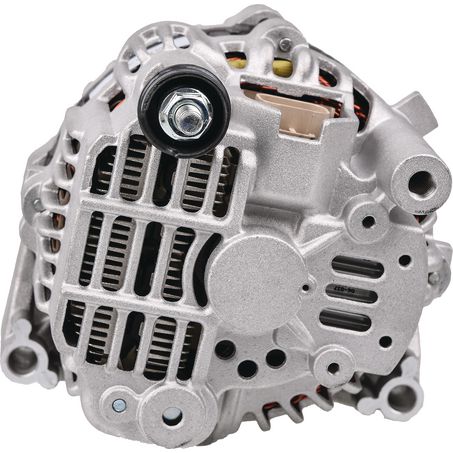

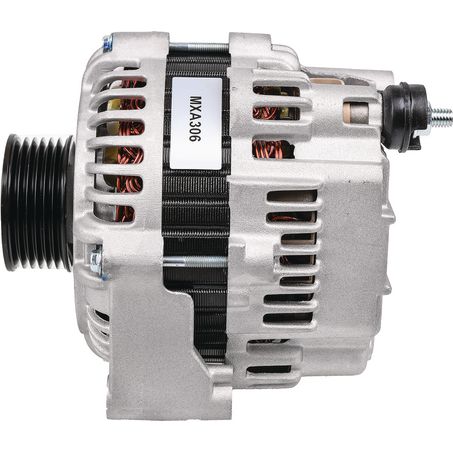

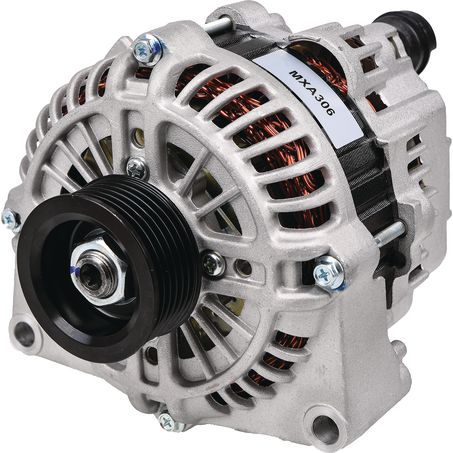

ALT 12V 140A MITSUBISHI STYLE HOLDEN, HSV
| Adjusting Hole Diameter | 10.5 |
| Mount Leg Thickness | 50mm |

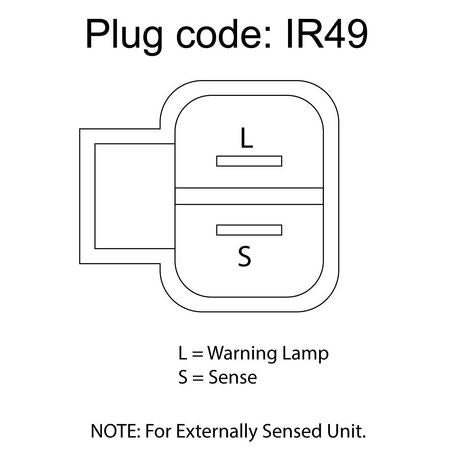

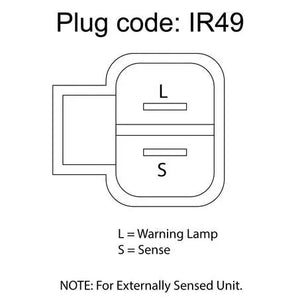

| Pin Code | IR49 |
| Pivot Hole Diameter | 10.5 |
| Power Rating [Amp] | 140 |
| Pulley Outside Diameter | 57.5mm |
| Pulley Section | 6 Groove |
| Regulator Type | Internal |
| Suits Unit Make | Mitsubishi |
| Voltage | 12 |
| Note | Pin. Lug Length: 51mm. - Unit fitted with standard regulator. MXA306 will not interchange with MXA2020 or MXA332. Adaptor to suit HXK-32, HXK-24 |
| Alternator Mount | Single Leg |
| Mount Cnt to Cnt | 139mm |
| New / Reman. | New |
| Weight | 5.96kg |
| Features | Pin. Lug Length: 51mm. Unit fitted with standard regulator. MXA306 will not interchange with MXA2020 or MXA332. Adaptor to suit HXK-32, HXK-24 MXA306 will not interchange with MXA330 |
MXA306 will not interchange with MXA332 or MXA2020
| HDT COMMODORE VX Aero Signature 5.7L LS1(350CUV8) OHV 16v Petrol V8 255kW Sedan RWD [09/00 - 09/02] |
| HDT COMMODORE VX Aero Signature 5.7L LS1(350CUV8) OHV 16v Petrol V8 265kW Sedan RWD [09/00 - 09/02] |
| HDT COMMODORE VX Aero Signature 5.7L LS1(350CUV8) OHV 16v Petrol V8 275kW Sedan RWD [09/00 - 09/02] |
| HDT COMMODORE VX Aero Signature 5.7L LS1(350CUV8) OHV 16v Petrol V8 285kW Sedan RWD [09/00 - 09/02] |
| HOLDEN ADVENTRA VY i V8 CX8/LX8 5.7L LS1 OHV 16v Petrol V8 235kW Wagon AWD [08/03 - 10/04] |
| HOLDEN ADVENTRA VZ i V8 5.7L LS1 OHV 16v Petrol V8 250kW Wagon AWD [11/04 - 12/07] |
| HOLDEN ADVENTRA VZ i V8 CX8/LX8 5.7L LS1 OHV 16v Petrol V8 235kW Wagon AWD [10/04 - 12/07] |
| HOLDEN BERLINA VT i V8 5.7L LS1 OHV 16v Petrol V8 220kW Sedan RWD [06/99 - 08/00] |
| HOLDEN BERLINA VT i V8 5.7L LS1 OHV 16v Petrol V8 220kW Wagon RWD [06/99 - 08/00] |
| HOLDEN BERLINA VX i V8 5.7L LS1 OHV 16v Petrol V8 225kW Sedan RWD [09/00 - 09/02] |
| HOLDEN BERLINA VX i V8 5.7L LS1 OHV 16v Petrol V8 225kW Wagon RWD [09/00 - 09/02] |
| HOLDEN BERLINA VY i V8 5.7L LS1 OHV 16v Petrol V8 225kW Sedan RWD [09/02 - 08/04] |
| HOLDEN BERLINA VY i V8 5.7L LS1 OHV 16v Petrol V8 225kW Wagon RWD [09/02 - 08/04] |
| HOLDEN BERLINA VZ i V8 5.7L LS1 OHV 16v Petrol V8 235kW Sedan RWD [09/04 - 12/05] |
| HOLDEN BERLINA VZ i V8 5.7L LS1 OHV 16v Petrol V8 235kW Wagon RWD [09/04 - 12/05] |
| HOLDEN BERLINA VZ i V8 6.0L L76,LS2(364CUV8) OHV 16v Petrol V8 260kW Sedan RWD [12/05 - 06/06] |
| HOLDEN BERLINA VZ i V8 6.0L L76,LS2(364CUV8) OHV 16v Petrol V8 260kW Wagon RWD [12/05 - 06/06] |
| HOLDEN BERLINA,COMMODORE VT i V8 5.7L LS1 OHV 16v Petrol V8 220kW Sedan RWD [06/99 - 08/00] |
| HOLDEN BERLINA,COMMODORE VT i V8 5.7L LS1 OHV 16v Petrol V8 220kW Wagon RWD [06/99 - 08/00] |
| HOLDEN BERLINA,COMMODORE VX i V8 5.7L LS1 OHV 16v Petrol V8 225kW Sedan RWD [09/00 - 09/02] |
| HOLDEN BERLINA,COMMODORE VX i V8 5.7L LS1 OHV 16v Petrol V8 225kW Wagon RWD [09/00 - 09/02] |
| HOLDEN BERLINA,COMMODORE VY i V8 5.7L LS1 OHV 16v Petrol V8 235kW Sedan RWD [09/02 - 08/04] |
| HOLDEN BERLINA,COMMODORE VY i V8 5.7L LS1 OHV 16v Petrol V8 235kW Wagon RWD [09/02 - 08/04] |
| HOLDEN BERLINA,COMMODORE VY i V8 5.7L LS1 OHV 16v Petrol V8 245kW Sedan RWD [09/02 - 08/04] |
| HOLDEN BERLINA,COMMODORE VZ i V8 5.7L LS1 OHV 16v Petrol V8 235kW Sedan RWD [09/04 - 12/05] |
| HOLDEN BERLINA,COMMODORE VZ i V8 5.7L LS1 OHV 16v Petrol V8 235kW Wagon RWD [09/04 - 12/05] |
| HOLDEN BERLINA,COMMODORE VZ i V8 6.0L L76,LS2(364CUV8) OHV 16v Petrol V8 260kW Wagon RWD [01/06 - 01/07] |
| HOLDEN BERLINA,COMMODORE VZ i V8 SV8, SS 6.0L L76,LS2(364CUV8) OHV 16v Petrol V8 260kW Sedan RWD [11/05 - 06/06] |
| HOLDEN BERLINA,COMMODORE VZ i V8 SV8, SS, SS Z 5.7L LS1 OHV 16v Petrol V8 250kW Sedan RWD [09/04 - 12/05] |
| HOLDEN CALAIS VT i V8 5.7L LS1 OHV 16v Petrol V8 220kW Sedan RWD [06/99 - 10/00] |
| HOLDEN CALAIS VX i V8 5.7L LS1 OHV 16v Petrol V8 225kW Sedan RWD [09/00 - 09/02] |
| HOLDEN CALAIS VY i V8 5.7L LS1 OHV 16v Petrol V8 235kW Sedan RWD [08/03 - 08/04] |
| HOLDEN CALAIS VZ i V8 5.7L LS1 OHV 16v Petrol V8 235kW Sedan RWD [08/04 - 01/06] |
| HOLDEN CALAIS VZ i V8 6.0L L76 OHV 16v Petrol V8 260kW Sedan RWD [11/05 - 06/06] |
| HOLDEN CAPRICE WH i V8 5.7L LS1 OHV 16v Petrol V8 220kW Sedan RWD [06/99 - 10/00] |
| HOLDEN CAPRICE WH i V8 5.7L LS1 OHV 16v Petrol V8 225kW Sedan RWD [10/00 - 04/03] |
| HOLDEN CAPRICE WK i V8 5.7L LS1 OHV 16v Petrol V8 245kW Sedan RWD [05/03 - 07/04] |
| HOLDEN CAPRICE WL i V8 5.7L LS1 OHV 16v Petrol V8 250kW Sedan RWD [08/04 - 01/06] |
| HOLDEN CAPRICE WL i V8 6.0L L76 OHV 16v Petrol V8 260kW Sedan RWD [02/06 - 07/06] |
| HOLDEN COMMODORE VU i V8 5.7L LS1 OHV 16v Petrol V8 225kW Utility RWD [12/00 - 09/02] |
| HOLDEN COMMODORE VY i V8 5.7L LS1 OHV 16v Petrol V8 225kW Utility RWD [09/02 - 08/04] |
| HOLDEN COMMODORE VY i V8 5.7L LS1 OHV 16v Petrol V8 235kW Utility RWD [09/02 - 08/04] |
| HOLDEN COMMODORE VY i V8 5.7L LS1 OHV 16v Petrol V8 245kW Utility RWD [09/02 - 08/04] |
| HOLDEN COMMODORE VZ i V8 5.7L LS1 OHV 16v Petrol V8 250kW Utility RWD [09/04 - 02/06] |
| HOLDEN COMMODORE VZ i V8 6.0L L76,LS2(364CUV8) OHV 16v Petrol V8 260kW Utility RWD [11/05 - 08/07] |
| HOLDEN CREWMAN VY i V8 5.7L LS1 OHV 16v Petrol V8 225kW Utility AWD [09/03 - 07/04] |
| HOLDEN CREWMAN VY i V8 5.7L LS1 OHV 16v Petrol V8 225kW Utility RWD [09/03 - 07/04] |
| HOLDEN CREWMAN VZ i V8 5.7L LS1 OHV 16v Petrol V8 235kW Utility AWD [08/04 - 02/06] |
| HOLDEN CREWMAN VZ i V8 5.7L LS1 OHV 16v Petrol V8 235kW Utility RWD [08/04 - 02/06] |
| HOLDEN CREWMAN VZ i V8 6.0L L76,LS2(364CUV8) OHV 16v Petrol V8 260kW Utility AWD [11/05 - 07/06] |
| HOLDEN CREWMAN VZ i V8 SS/SS Thunder 6.0L L76,LS2(364CUV8) OHV 16v Petrol V8 260kW Utility RWD [11/05 - 07/06] |
| HOLDEN MONARO V2 i V8 5.7L LS1 OHV 16v Petrol V8 225kW Coupe RWD [12/01 - 01/03] |
| HOLDEN MONARO V2 i V8 5.7L LS1 OHV 16v Petrol V8 235kW Coupe RWD [01/03 - 08/03] |
| HOLDEN MONARO V2 i V8 5.7L LS1 OHV 16v Petrol V8 245kW Coupe RWD [08/03 - 09/04] |
| HOLDEN ONE TONNER VY i V8 5.7L LS1 OHV 16v Petrol V8 235kW Cab Chassis RWD [08/03 - 07/04] |
| HOLDEN ONE TONNER VZ i V8 5.7L LS1 OHV 16v Petrol V8 235kW Utility RWD [11/04 - 12/05] |
| HOLDEN ONE TONNER VZ i V8 5.7L LS1 OHV 16v Petrol V8 260kW Utility RWD [11/04 - 12/05] |
| HOLDEN STATESMAN WH i V8 5.7L LS1 OHV 16v Petrol V8 220kW Sedan RWD [06/99 - 11/02] |
| HOLDEN STATESMAN WH i V8 5.7L LS1 OHV 16v Petrol V8 225kW Sedan RWD [11/02 - 04/03] |
| HOLDEN STATESMAN WK i V8 5.7L LS1 OHV 16v Petrol V8 235kW Sedan RWD [05/03 - 07/04] |
| HOLDEN STATESMAN WK i V8 5.7L LS1 OHV 16v Petrol V8 245kW Sedan RWD [05/03 - 07/04] |
| HOLDEN STATESMAN WL i V8 5.7L LS1 OHV 16v Petrol V8 250kW Sedan RWD [08/04 - 07/06] |
| HOLDEN STATESMAN WL i V8 6.0L L76 OHV 16v Petrol V8 260kW Sedan RWD [02/06 - 07/06] |
| HSV AVALANCHE VY i V8 5.7L LS1 OHV 16v Petrol V8 260kW Utility AWD [03/04 - 09/04] |
| HSV AVALANCHE VY i V8 5.7L LS1 OHV 16v Petrol V8 260kW Wagon AWD [10/03 - 04/06] |
| HSV CAPRICE VR 215i 5.7L HSVV8 OHV 16v Petrol V8 215kW Sedan RWD [10/94 - 04/95] |
| HSV CAPRICE VS 215i 5.7L HSVV8 OHV 16v Petrol V8 215kW Sedan RWD [04/95 - 09/96] |
| HSV CLUBSPORT VT i V8 5.7L LS1 OHV 16v Petrol V8 250kW Sedan RWD [07/99 - 10/00] |
| HSV CLUBSPORT VX i V8 5.7L LS1 OHV 16v Petrol V8 255kW Sedan RWD [09/00 - 09/02] |
| HSV CLUBSPORT VY i V8 5.7L LS1 OHV 16v Petrol V8 260kW Sedan RWD [10/02 - 08/03] |
| HSV CLUBSPORT VY i V8 5.7L LS1 OHV 16v Petrol V8 285kW Sedan RWD [09/03 - 09/04] |
| HSV COUPE 4 VZ i V8 5.7L LS1 OHV 16v Petrol V8 270kW Coupe AWD [07/04 - 04/06] |
| HSV GRANGE VS 5.7L HSVV8 OHV 16v Petrol V8 215kW Sedan RWD [10/96 - 04/99] |
| HSV GRANGE WH i V8 5.7L LS1 OHV 16v Petrol V8 250kW Sedan RWD [07/99 - 11/00] |
| HSV GRANGE WH i V8 5.7L LS1 OHV 16v Petrol V8 255kW Sedan RWD [10/00 - 09/03] |
| HSV GRANGE WK i V8 5.7L LS1 OHV 16v Petrol V8 285kW Sedan RWD [10/03 - 09/04] |
| HSV GRANGE WL i V8 6.0L LS2(364CUV8) OHV 16v Petrol V8 298kW Sedan RWD [09/04 - 12/06] |
| HSV GTO V2 i V8 5.7L LS1 OHV 16v Petrol V8 255kW Coupe RWD [03/01 - 08/03] |
| HSV GTO VX,VZ i V8 5.7L LS1 OHV 16v Petrol V8 285kW Coupe RWD [09/03 - 09/04] |
| HSV GTO VX,VZ i V8 6.0L LS2(364CUV8),L76 OHV 16v Petrol V8 297kW Coupe RWD [10/04 - 11/07] |
| HSV GTS V2 i V8 5.7L LS1 OHV 16v Petrol V8 300kW Coupe RWD [03/01 - 09/04] |
| HSV GTS VR i V8 5.7L HSVV8 OHV 16v Petrol V8 215kW Sedan RWD [05/94 - 04/95] |
| HSV GTS VS SERIES 2 5.7L 350 cu.in Stroker Petrol Sedan RWD [06/96 - 12/99] |
| HSV GTS VS i V8 5.7L HSVV8 OHV 16v Petrol V8 215kW Sedan RWD [04/95 - 08/97] |
| HSV GTS VT i V8 5.7L HSVV8 OHV 16v Petrol V8 220kW Sedan RWD [09/97 - 06/99] |
| HSV GTS VT i V8 5.7L LS1 OHV 16v Petrol V8 300kW Sedan RWD [04/00 - 09/00] |
| HSV GTS VX i V8 5.7L LS1 OHV 16v Petrol V8 300kW Sedan RWD [09/00 - 08/01] |
| HSV GTS VY i V8 5.7L LS1 OHV 16v Petrol V8 300kW Sedan RWD [10/02 - 09/04] |
| HSV MALOO VU i V8 5.7L LS1 OHV 16v Petrol V8 255kW Utility RWD [03/01 - 09/02] |
| HSV MALOO VY i V8 5.7L LS1 OHV 16v Petrol V8 260kW Utility RWD [10/02 - 09/03] |
| HSV MALOO VY i V8 5.7L LS1 OHV 16v Petrol V8 285kW Utility RWD [10/03 - 09/04] |
| HSV SENATOR VR i V8 5.7L HSVV8 OHV 16v Petrol V8 215kW Sedan RWD [08/93 - 04/95] |
| HSV SENATOR VS i V8 5.7L HSVV8 OHV 16v Petrol V8 215kW Sedan RWD [04/95 - 08/97] |
| HSV SENATOR VT i V8 5.7L HSVV8 OHV 16v Petrol V8 220kW Sedan RWD [09/97 - 06/99] |
| HSV SENATOR VT i V8 5.7L HSVV8 OHV 16v Petrol V8 230kW Sedan RWD [09/97 - 06/99] |
| HSV SENATOR VT i V8 5.7L LS1 OHV 16v Petrol V8 250kW Sedan RWD [09/97 - 06/99] |
| HSV SENATOR VT i V8 5.7L LS1 OHV 16v Petrol V8 250kW Wagon RWD [09/97 - 08/00] |
| HSV SENATOR VX i V8 5.7L LS1 OHV 16v Petrol V8 255kW Sedan RWD [09/00 - 09/02] |
| HSV SENATOR VX i V8 5.7L LS1 OHV 16v Petrol V8 300kW Sedan RWD [09/00 - 09/02] |
| HSV SENATOR VY i V8 5.7L LS1 OHV 16v Petrol V8 260kW Sedan RWD [10/02 - 08/03] |
| HSV SENATOR VY i V8 5.7L LS1 OHV 16v Petrol V8 285kW Sedan RWD [09/03 - 09/04] |
| HSV SENATOR VZ i V8 6.0L LS2(364CUV8),L76 OHV 16v Petrol V8 297kW Sedan RWD [10/04 - 07/06] |
| HSV STATESMAN VR 215i 5.7L HSVV8 OHV 16v Petrol V8 215kW Sedan RWD [10/94 - 04/95] |
| HSV STATESMAN VS 215i 5.7L HSVV8 OHV 16v Petrol V8 215kW Sedan RWD [04/95 - 09/96] |
| HSV STATESMAN VS SERIES 2 5.7L 350 cu.in Stroker Petrol Sedan RWD [06/96 - 05/98] |
| HSV SV300 VX i V8 5.7L LS1 OHV 16v Petrol V8 300kW Sedan RWD [09/01 - 12/01] |
| HSV SV99 VT SERIES 2 5.7L Gen3 LS1 Petrol Sedan RWD [06/99 - 09/00] |
| HSV SV99 VT SERIES 2 5.7L Gen3 LS1 Petrol Sedan RWD [07/99 - 01/00] |
| HSV SV99 VT i V8 5.7L LS1 OHV 16v Petrol V8 250kW Sedan RWD [07/99 - 10/00] |
