MAXIiSYS Advanced Automotive Diagnostic Tablet
MAXIiSYS Advanced Automotive Diagnostic Tablet

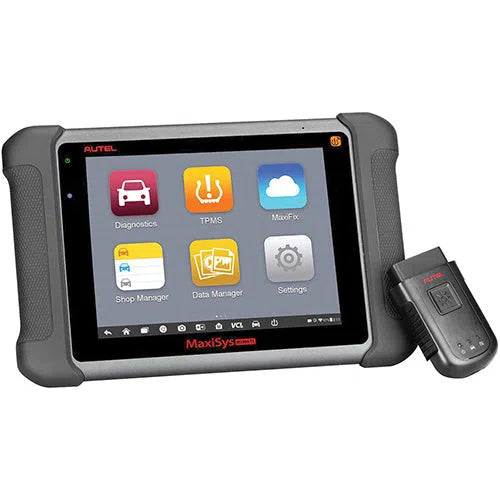

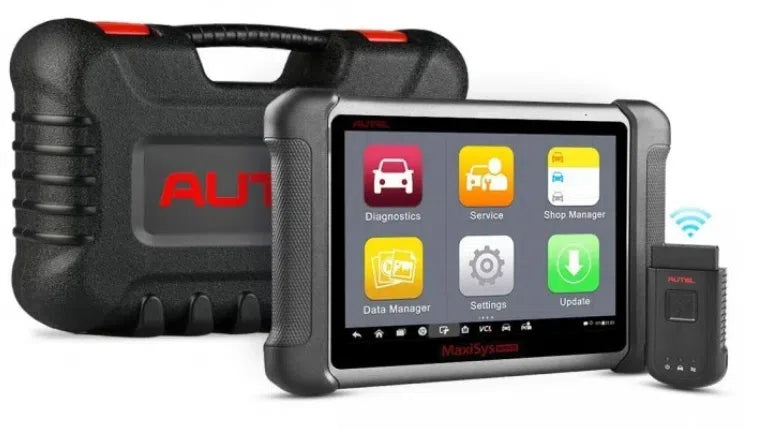

Autel MaxiSys MS906BT is the latest addition to the MaxiSys product line of advanced wireless diagnostic devices. The device is based on the Android operating system featured with the best possible coverage of OE-level diagnostics and ECU coding capability. Utilizing the powerful Exynos 5260 6-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15), an capacitive HD touch screen, and long-distance wireless communication, the MaxiSys MS906BT efficiently provides comprehensive vehicle diagnostics and analysis.
AUTEL MaxiSys MS906BT Advanced Wireless Diagnostic Devices for Android Operating System
Four Reasons to Get.AUTEL MaxiSys MS906BT:
1. High Quality Hardware Configuration:.8 inch touch screen easy-to-use comprehensive vehicle diagnostics and analysis scanner, With Android 4.4.2 Operating System for fast boot-up and multitasking, Support OE-Level Vehicle coverage and functions
2. Advanced Version for MS906:.As advanced version of Autel MS906, Autel MS906BT comes with advanced ECU Coding capability compatible with add-ons like oscilloscope and digital inspection camera, USB port and HDMI port. It supports both wireless via Bluetooth and lined connection for data transmission and wireless OE-Level all modules diagnosis.
3. Supports 2 Communication Methods:.Wireless BT and USB: BT pairing is recommended as the first choice for the communication between the Display Tablet and the VCI device. The working range for BT communication is about 164 feet (about 50 m); this means you can perform vehicle diagnosis freely around the workshop with greater convenience.The USB cable connection is a simple and quick way to establish communication between the Display Tablet and the MaxiVCIV100.
4. Wireless All Modules Diagnosis:.Autel MaxiSys MS906BT diagnostic scan tool supports data transmission through wireless BT communication or traditional USB connection. And Bluetooth pairing is fast with working range up to 164 feet(around 50m). The wireless scanner can transmit vehicle data to the powerful android tablet without physical connection which allows you to perform vehicle all available modules OE-Level diagnosis remotely in the shade of a tree.
MS906BT Features:
1.Easy and intuitive navigation makes finding what you need simple and fast
2.The most extensive complete system coverage for more than 80 US, Asian and European makes and models
3.Enhanced wireless BT connectivity between the display tablet and VCI device allows greater mobility and ease at work
4.One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
Note:
.
1. Language:.English
2. One year warranty and One year free update online, after that, you can buy update service from us:.MS906BT update service.

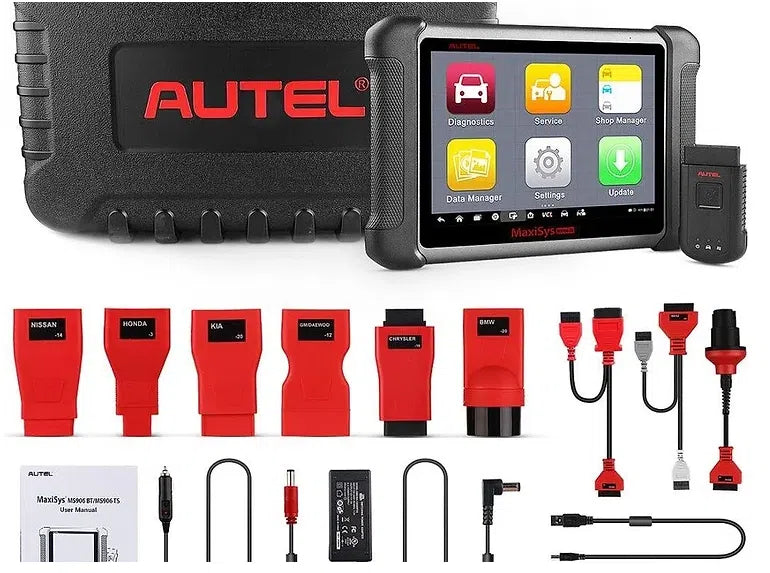

3. If you need other Autel MS906BT Parts, Please check.Autel MaxiSYS-VCI100 (MS906BT Bluetooth)
4..Benz 14 Pin Adapter Does Not Contains in the package. if you want it, you need to buy it seperately..BENZ 14 adapter
5..Support Wifi and Bluetooth..But Wifi is only for Update. Can Not Use Wifi Connection to Do Diagnose. Bluetooth is available for connectivity between the display tablet and VCI device allows greater mobility and ease at work.
.

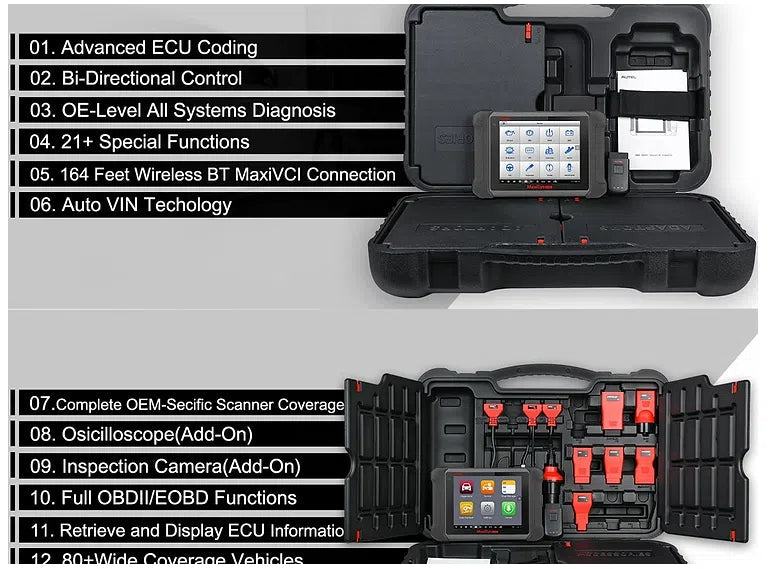

MaxiSys MS906BT.Functions:
Read Clear Codes on All Available Modules
Autel MaxiSys MS906BT, as a professional scan tool and upgraded version of Autel MS906, it can access wirelessly via Bluetooth connection ALL available vehicle modules including but not limited to PCM, ECM, EPS, PDM, BCM, TPM, SCCM, RADIO and etc. With complete capability for codes, it can read and clear codes on all systems and subsystems and be able to show live PID data of multiple sensors in graph text.
Bluetooth Wireless Diagnosis
The Autel MaxiVCI allows the bluetooth diagnostic scanner to communicate with the DLC via Bluetooth and lined USB connection. With an ultra long working range of about 164 feet (about 50m), you can perform vehicle OE-Level All Modules diagnosis and services remotely without worrying about the cable might not be long enough or the limited space and hot air in your car.
Bi-directional Control
Bi-directional Control not only performs various bi-directional tests to check the operating conditions of ABS and SRS, but also applies to functions such as Component Test and Active Test, Actuator Test. Active Test is used to access vehicle-specific subsystem and component tests. During an active test, the tester outputs commands to the ECU in order to drive the actuators. This test determines the integrity of the system or parts by reading the engine ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay, or switch, between two operating states.
AUTO VIN TECHNOLOGY
Autel MS906BT diagnostic system features the latest VIN-based Auto VIN Scan function to identify CAN vehicles in just one touch, which allows the technician to quickly detect vehicles, scan all the diagnosable ECUs on every vehicle and run diagnostics on the selected system.
Advanced ECU Coding Capability
Autel MS906BT automotive diagnostic tool with advanced ECU Coding function, which is one of the features not available in the MS906. ECU Coding allows you to establish a data link to the electronic control system of the test vehicle via the VCI device for vehicle diagnosis, service or coding. You can operate functional tests, retrieve vehicle diagnostic information such as trouble codes, event codes and live data, and perform ECU coding, for various vehicle control systems, such as engine, transmission, ABS and more.
Coding functions are usually used by advanced specialists. Coding is conditionally divided into two types:
The first is the computer coding during replacement, commissioning, used to install a new computer in the car. When performing the procedure, the computer is informed of vehicle's VIN, the configuration and other information necessary for correct operation.
The second is the coding of the computer for tuning the body electronics to the user, usually the BCM. The procedure will allow you to offer the customer individual customization of the car for him, locking the doors, setting alarms, the function "lead to home", setting the salon and outdoor lighting, etc
IMMO Keys/Key Fob
The IMMO service of MS906BT can disable a lost vehicle keys and program the replacement key fob. One or more replacement key fobs can be programmed.( Before programming, please check and erase the fault codes. )
Note: Key function is only available for most vehicles with low security level, not applicable to vehicles with high-level safety systems such as BMW, Benz
Digital and Graphical Display of Parameters
Using MaxiSys you can display the parameters of the system conveniently. Some parameters are more likely to be monitored in analog form, for example, pressure. Some parameters are more conveniently viewed in graphical form, by observing their change in time (potentiometers, oxygen sensor). Some parameters must be displayed in the graph to observe changes relative to each other (for example, air mass flow and engine speed). Only in MaxiSys all these ways of displaying are available for all parameters and all components, regardless of the makes and models of the car.
Special Tests
The actuators are not always visually visible or too complex to assess their performance with organoleptic (eyes, ears) methods through normal activation. That's why the test-components are implemented in MaxiSys scanners. Test-components will allow you to include special test modes in the computer, in which the electronic system itself creates conditions for verification and evaluates its results with further recommendations to the expert
Adaptation and Initialization
After replacement, for repair or cleaning of some sensors and many actuators of electronic systems, an adaptation or initialization procedure is required. When performing this procedure, the basic values of their work, the reference point, are established. In a modern car, there are many such elements that require similar procedures, which makes these functions vital for the service. In MaxiSys systems, these procedures are presented at the dealer level.
2. Special Functions:
1..IMMO Service: Disable a lost vehicle keys and program the replacement key fob.
2..Oil Reset Service: Reset service mileage and service intervals for the Engine Oil Life system.
3..SAS Service: Perform calibration for the Steering Angle Sensor and automatically cleared the fault memory.
4..DPF Regeneration Service: Clear the blockage through continuous burning of the particulate matter captured in the DPF filter.
5..TPMS Service: Quickly look up the tire sensor IDs from the vehicle's ECU, perform TPMS programming and reset procedures after tire sensors are replaced.
6..EPB Service: Deactivate and activate the brake control system, assist with brake fluid control, open and close brake pads, and set brakes after disc or pad replacement, etc.
7..BMS Service: Allow the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
8..ABS/SRS Services: Perform various bi-directional test to check the operating conditions of both the Anti-lock Braking System and the Supplemental Restraint System, such as Automated Bleeding, Pump Motor Test,and checking Module information, etc.
MaxiSys MS906BT.Features:
1. Internal reliable 32GB SSD for better performance
2. 802.11b/g/n Wi-Fi to access your favorite web resources
3. Smart AutoVIN technology for identifying vehicle easily
4. Instant remote control tech support anytime, anywhere
5. Extraordinarily powerful Samsung Exynos Hexa-core processor
6. Built-in 8-megapixel rear camera with autofocus and flashlight
7. USB, audio and auxiliary ports make it easy to connect accessories
8. Open source Android Operating System for fast boot-up and multitasking
9. Easy and intuitive navigation makes finding what you need simple and fast
10. Built-in rechargeable lithium-polymer battery for up to 14 hours of continuous operation
11. Unique ergonomic design with rubberized outer protection and a rugged internal housing
12. Automatic system and software updates with real-time push message notifications via internet
13. Convenient data management system for managing internal program applications and reviewing data
14. 8.0" 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology for ultra-mobility
15. Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc.
16. The most extensive complete system coverage for more than 80 US, Asian and European makes and models
17. Exceptional OE-Level functionality from comprehensive OBDII diagnostics services to advanced ECU coding
18. Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
19. Enhanced wireless BT connectivity between the display tablet and VCI device allows greater mobility and ease at work
20. Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
21. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
MaxiSys MS906BT Vehicle Coverage:
For Asian: Acura, Daihatsu, Hyundai, Infiniti, Fiat, Mazda, Nissan, Scion, Subaru, Toyota, Manhindra, Proton, Daewoo, Honda, HyundaiCV, Isuzu, Lexus, Mitsubishi, Samsung, Ssang Yong, Suzuki, Fuso, Perodua, Tata
For European: VW, Abarth, Aston Martin, MINI, Sprinter, SKODA, Citroen, Fiat, Lancia, Maserati, Opel, Porsche, SAAB, Vauxhall, Seat, Bugatti, Audi, For EU, BMW, Alfa, Benz, Maybach, Ferrari, Jaguar, Land Rover, Peugeot, Renault, Smart, Volvo, Lamborghini, Bentley, Rolls-Royce, VW CV, Dacia, LT3
For USA: Chrysler, Dodge, Ford, GM, JEEP
Question on the new.Maxisys MS906, MS906BT, and MS906TS:
MS906 has the same apperance with.MS906BT, but MS906BT has a few advantage than MS906:
1. MS906BT is installed Bluetooth, allowing diagnosis wirelessly..
2. MS906BT's diagnostic coverage includes premium vehicle brands such as Maserati and Bentley, which would be required for high-end service shops.
3. MS906BT supports oscilloscope and digital inspection camera add-ons which are not supported by MS906.
4. Finally, MS906BT has the capability to perform coding for covered vehicles..
MS906TS is added TPMS function based on MS906BT.
.
The MS906BT have all the capabilities of the maxisys mini ms905 as far as vehicle coverage and capabilities for codes, live data, actuation tests, adaptations and ECU coding .comparing the new MS906BT to the MS905 and they are similar in size but the MS906BT seems to have improvements such as faster processors, slightly larger screen, twice the battery capacity and better camera
MaxiSys MS906BT is the latest addition to the MaxiSys product line of advanced wireless diagnostic devices. The device is based on the Android operating system featured with the best possible coverage of OE-level diagnostics and ECU coding capability. Utilizing the powerful Exynos 5260 6-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15), capacitive HD touch screen, and long-distance wireless communication, the MaxiSys MS906BT efficiently provides comprehensive vehicle diagnostics and analysis.
Comparison for Autel Maxisys MS906 and MS906BT
MS906 has the same apperance with MS906BT, but MS906BT has several advantages than MS906:
1. MS906BT is installed Bluetooth, allowing diagnosis wirelessly.
2. MS906BT' s diagnostic coverage includes premium vehicle brands such as Maserati and Bentley, which would be required for high-end service shops.
3. MS906BT supports oscilloscope and digital inspection camera add-ons which are not supported by MS906.
4. Finally, MS906BT has the capability to perform coding for covered vehicles. MS906TS is added TPMS function based on MS906BT.
5. MS906BT has complete OEM-Specifc scanner Coverage!
Autel DS808 vs Autel MS906BT vs Autel MS908P
The Main Difference Between the MS906BT and the DS808
MS906BT communicates with the car via Bluetooth communication (DS808 is hardline)
MS906BT comes with a full kit of OBDI cables for the older models
MS906BT gets software updates (specifically coding updates) earlier then DS808.
The software of the DS808 and MS906BT is very similar. So the DS808 is a great value for money option, but if you want all
the bells and whistles, the Autel MS906BT is the way to go.
The Main Difference Between the MS906BT and the MS908P
1. The Autel MS908P can perform flashing/reprogramming on newer vehicles having more onboard computers (ECM TCM) that are
programmed with thousands of parameters (control spark, fuel, idle etc).
2. Updating this software normally requires the car to be sent to dealers
3. Replacing new parts or changing existing parameters on many of the new vehicles requires flash reprogramming
4. Autel provides their own server for BMW BENZ software (free as long as you are active on updates). All other OEM
flashing software can be purchased separately and used with the MS908P VCI device.
Below is an Autel comparison chart among Autel Maxisys MS906BT, Autel Diagnostic DS808K and Autel Maxisys MS908P. This will help you make an informed decision
