EURO MAP SENSOR -1 to +7, (8 bar) pressure
Contains a Stainless Steel Diaphragm. All Eurosensor sensors must not be mounted directly into the fuel rail or engine block; they must be remotely mounted and connected via a flexible hose. If required, use Pressure Sensor Extension Hose RWM-005 or ALY-152BK4.
The 8 Bar MAP Variohm Eurosensor reads up to 7 Bar absolute pressure.
This means that it is suitable for turbo or supercharged applications running up to 7 Bar (or 101psi) of boost pressure.

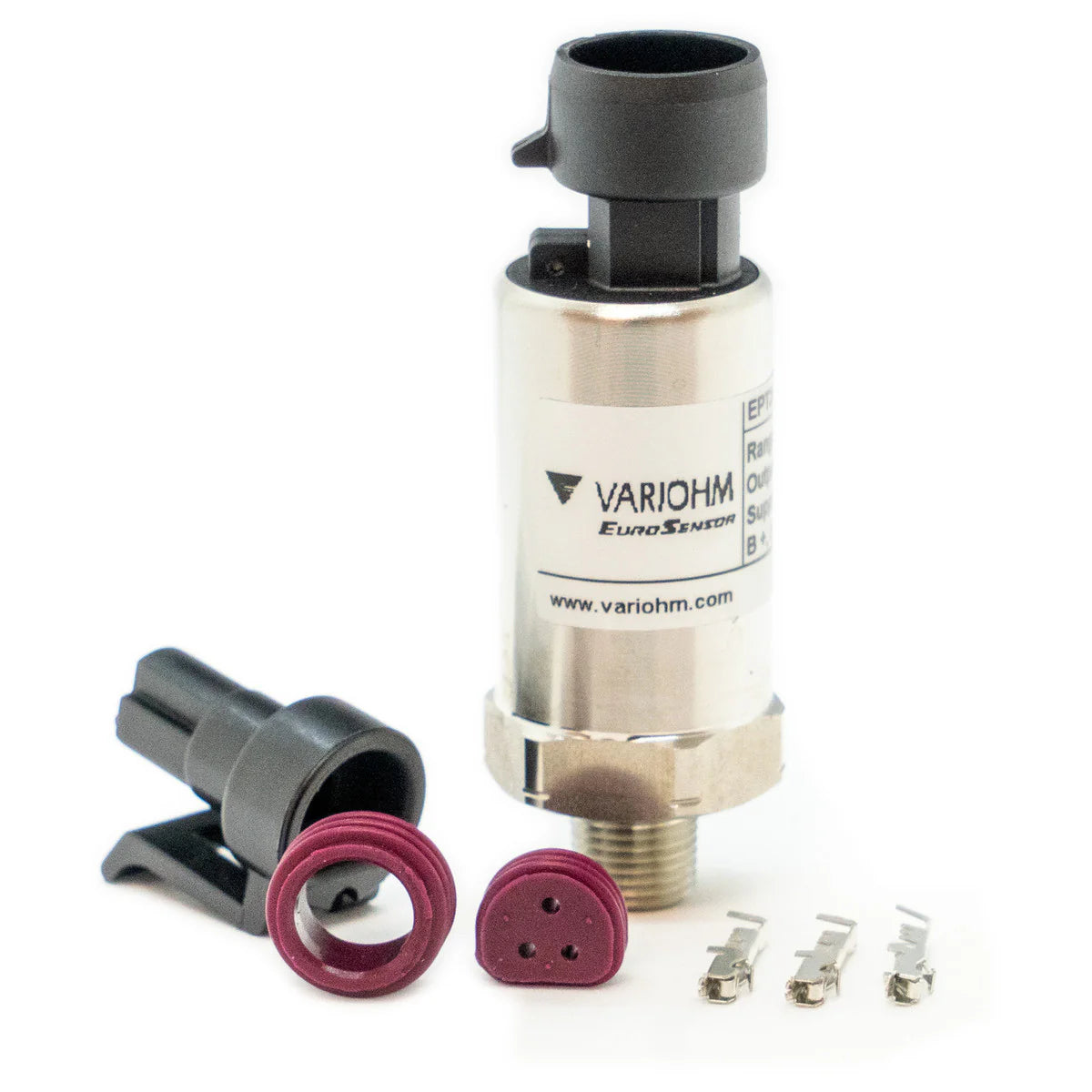

- Includes Plug and Pins
- Push wire through connector; crimp on terminal; pull wire/terminal back into connector
- Using Link G4/G4+/G4X ECU’s select the MAP sensor type in PC Link as ‘Variohm 8 Bar’
Calibration - 0kpa = 0.5v, 800kpa = 4.5v
PIN A = 0v
PIN B = 5v
PIN C = Signal
8 Bar Euro MAP Sensor, 1/8 NPT. Includes Plug Pins.
Supported boost level 101.5psi
