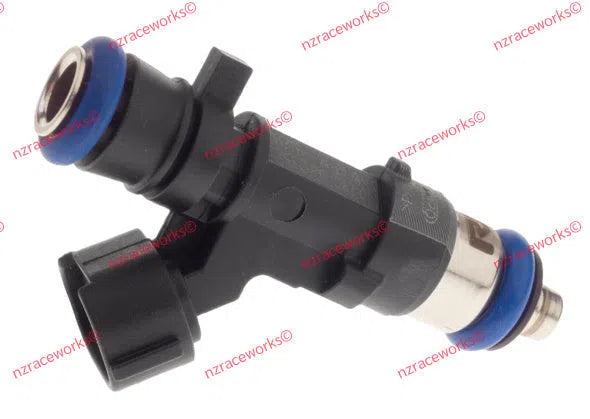

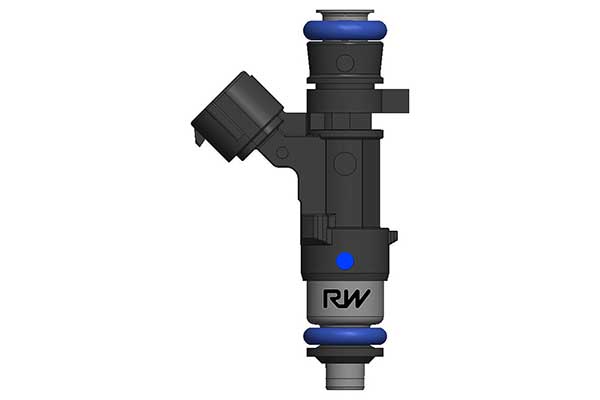

RACEWORKS 1200CC RACEWORKS (MODIFIED BOSCH) 3/4 LENGTH INJECTOR

Modified/High Flowed Bosch Injector
Size: 1200cc (114 Lb/hr) @ 3bar and 1400cc (133Lb/hr) @ 4bar.
Impedance: High (12 Ohms)
Plug: Denso. Top O-Ring: 14mm.
Ethanol; Methanol Safe
Spray Pattern: Narrow Cone
Spray Direction: Straight

Flow variance is +/- 1.5% (3% Total)

Download Injectors Size Charts PDF

Direct fit applications
Nissan 350Z V6
Nissan 370Z V6
Nissan GT-R R35 V6 Twin Turbo
Nissan Patrol TB48 I6
Nissan Skyline R34 RB25 I6
Nissan Stagea WGC34/WGNC34 RB25 I6
Subaru Impreza GD/GG H4 N/A

Injectors are a direct fit physically, but as with all Raceworks Injectors, will require a tune. While the vehicles listed above are direct fit, the injector can be used in many other applications with the appropriate extensions, o-rings or plug adapters. SeeInjector Upgrade Guidefor more details.

FLYWHEEL POWER FIGURES (ESTIMATED) PER INJECTOR

Modified Injectors

This is done for increased flow.

Various organisations commonly do this by ‘de-capping’ the injectors. Almost all Bosch EV14 injectors have a cap on the nozzle that is laser welded. This cap controls flow, assisting Bosch in reducing flow variance, and determines spray pattern. A nozzle may have multiple holes drilled on precise angles, to give desired spray pattern, commonly a cone with a particular spray width and angle. By removing this the flow of the injector is significantly increased, which leads to a larger flow variance and reduction in the quality of the spray pattern.

Raceworks injectors are de-capped but are taken one step further, and the remaining single hole/pintle is precisely drilled to restore the spray pattern quality and width.

All Raceworks injectors are statically and dynamically flow matched. This is done to accurately replicate their operating conditions in a vehicle. The n-Heptane test fluid is temperature controlled, and the injectors are preconditioned with 10,000 pulses, before being statically flowed at 3 different fuel pressures. They are then dynamically flowed at the same 3 fuel pressures, but with 25 different pulse widths. The injectors are also flowed at 10 different voltages, from 6V-15V respectively. What is most important is the set of injectors aren’t pulsed at the same time, as is the case with many inferior Injector Flow Benches. Pulsing at the same time causes a pressure differential through the rail and isn’t an accurate representation of their true firing order.
