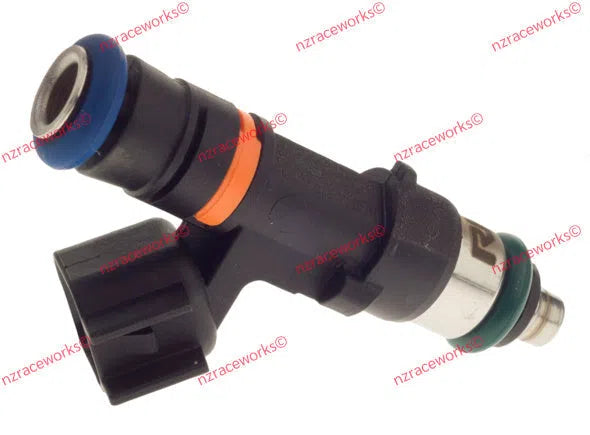

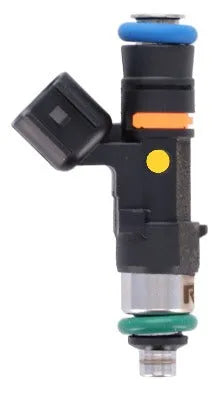

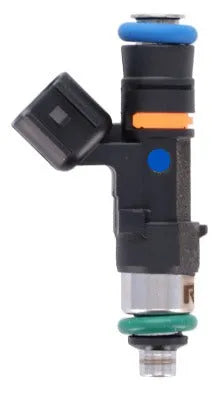

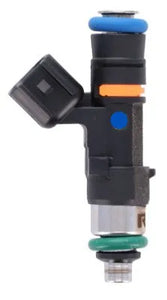

RACEWORKS 980CC RACEWORKS (MODIFIED BOSCH) INJECTOR 3/4 LENGTH
Modified/High Flowed Bosch InjectorSize: 980cc (95 Lb/hr) @ 3bar and 1150cc (110Lb/hr) @ 4bar.
Impedance: High (12 Ohms)
Plug: USCAR. Top O-Ring: 14mm.
Ethanol Methanol Safe
Spray Patternarrow Cone
Spray Directiontraight
Flow variance is +/- 1.5% (3% Total)
Download Injectors Size Charts PDF
Direct fit applications
Holden Commodore VZ V6
Holden Commodore VE V6 (Excluding SIDI)
Injectors are a direct fit physically, but as with all Raceworks Injectors, will require a tune. While the vehicles listed above are direct fit, the injector can be used in many other applications with the appropriate extensions, o-rings or plug adapters.
See Injector Upgrade Guider more details.
FLYWHEEL POWER FIGURES (ESTIMATED) PER INJECTOR
| Normally Aspirated Gasoline | 185HP | 140KW |
| Forced Inducted Low Boost Gasoline | 155HP | 115KW |
| Forced Inducted High Boost Gasoline | 165HP | 125KW |
| Normally Aspirated E85 | 140HP | 105KW |
| Forced Inducted Low Boost E85 | 110HP | 80KW |
| Forced Inducted High Boost E85 | 120HP | 90KW |
