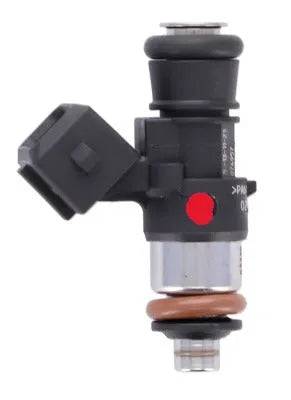

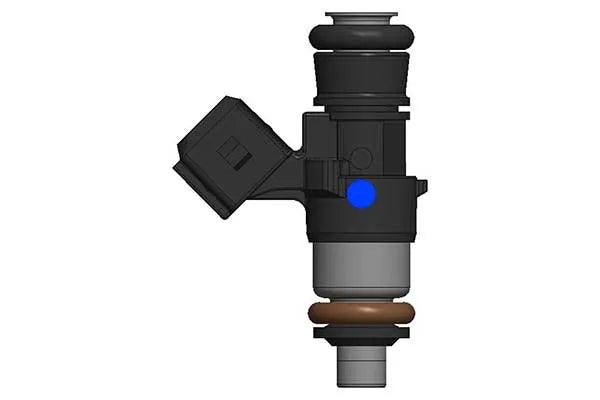

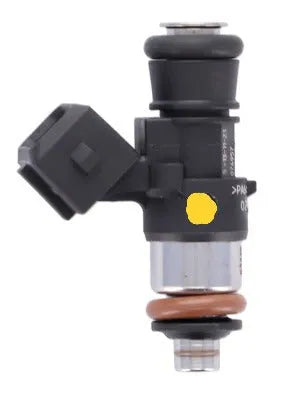

RACEWORKS BOSCH MOTORSPORT 1500CC SHORT INJECTOR
Description
HIGHEST flowing standard mass production Bosch PFI fuel injector available (excluding customer exclusive Motorsport versions).
- 1462cc/min = 1000g/min = 132lb/hr @ 3bar
- Single cone spray
- Compact body length
- Regular tip nozzle
- Jetronic connector
- 8.5 ohm resistance
- E85 compatible
- Commonly referred to as Bosch 1500cc injector
| Size: 1500cc (143 lb/hr) and 1650cc (157Lb/hr) @ 4bar Impedance: High (8.4Ohms) Plug: Bosch Jetronic/Minitimer, Top O-Ring: 14mm E85 Safe Spray Pattern: Pencil Spray Direction: Straight  Flow variance is +/- 1.5% (3% Total) |
INJ-223 |
Download Injector Calibration Data PDF
Download Injectors Size Charts PDF
FLYWHEEL POWER FIGURES (ESTIMATED) PER INJECTOR
| Normally Aspirated Gasoline | 250HP | 190KW |
| Forced Inducted Low Boost Gasoline | 210HP | 160KW |
| Forced Inducted High Boost Gasoline | 230HP | 170KW |
| Normally Aspirated E85 | 140HP | 100KW |
| Forced Inducted Low Boost E85 | 150HP | 110KW |
| Forced Inducted High Boost E85 | 165HP | 120KW |
Â
Did you know all Raceworks injectors are dynamically flow matched?
Raceworks injectors all start off as a genuine Bosch EV14 injector. They are all compatible with and warranted for use with Gasoline, Ethanol and Methanol/Alcohol based fuels, for 2 years.
All Raceworks injectors are statically and dynamically flow matched. This is done to accurately replicate their operating conditions in a vehicle. The n-Heptane test fluid is temperature controlled, and the injectors are preconditioned with 10,000 pulses, before being statically flowed at 3 different fuel pressures. They are then dynamically flowed at the same 3 fuel pressures, but with 25 different pulse widths. The injectors are also flowed at 10 different voltages, from 6V-15V respectively. What is most important is the set of injectors aren€„¢t pulsed at the same time, as is the case with many inferior Injector Flow Benches. Pulsing at the same time causes a pressure differential through the rail and isn€„¢t an accurate representation of their true firing order.
