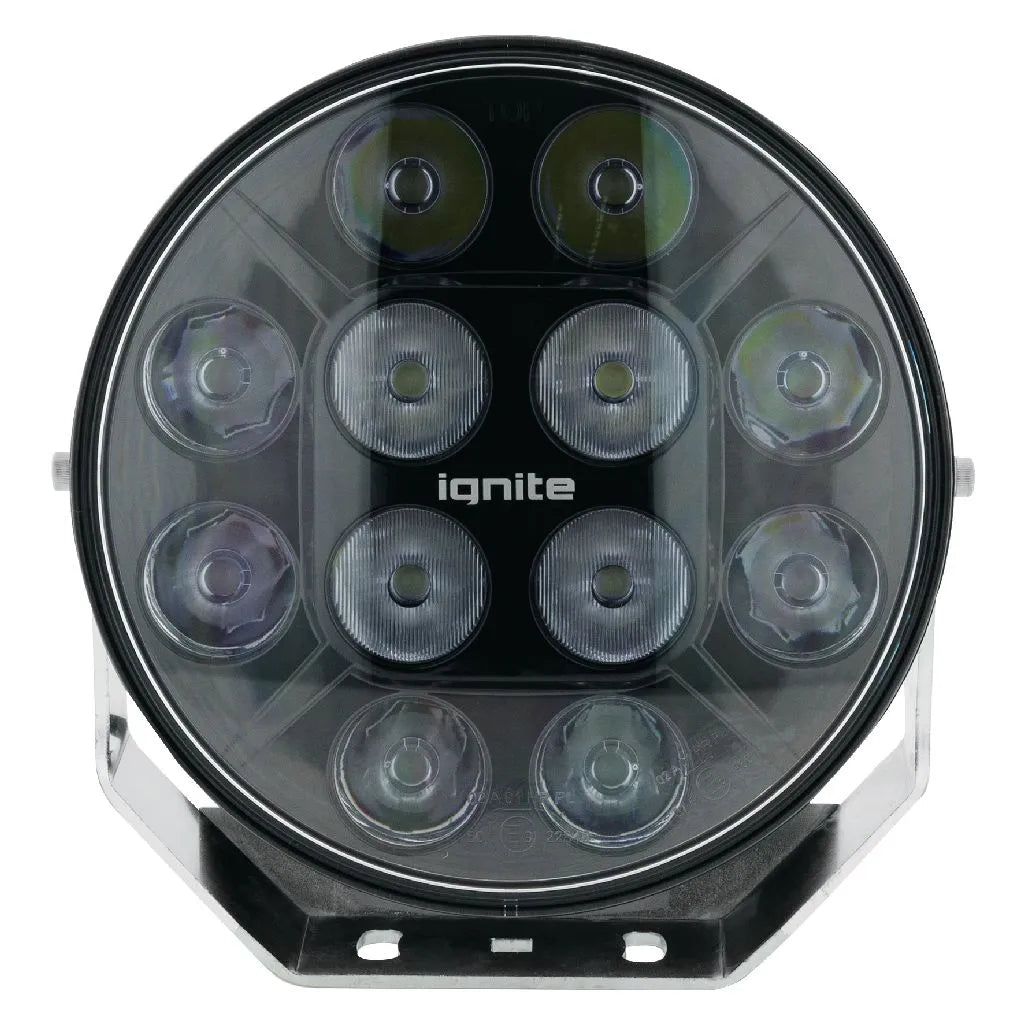

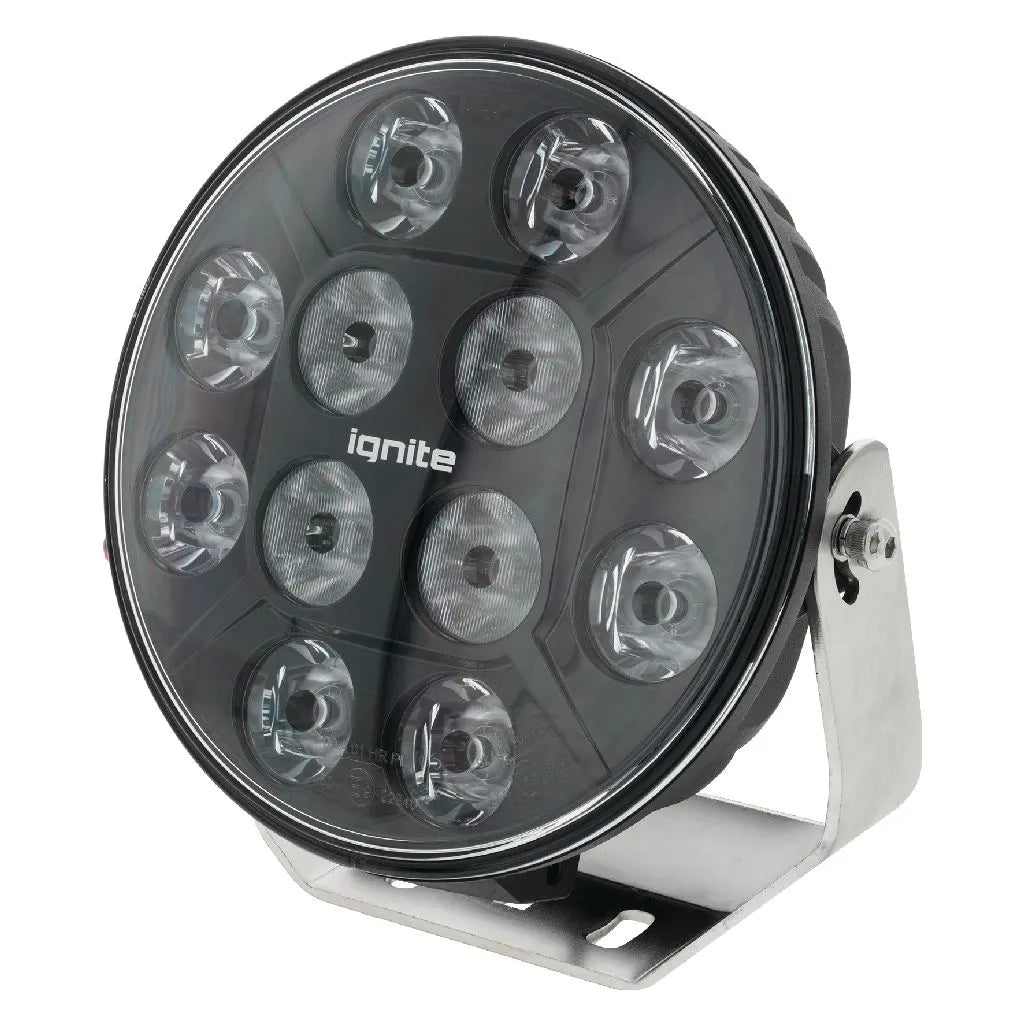

IGNITE 9" LED SPOT BEAM 25Deg 9-36V 120 Watt BLK
9" Ignite Round Slimline LED Driving Light 9 - 36 Volt 120 Watt
With Black Fascia

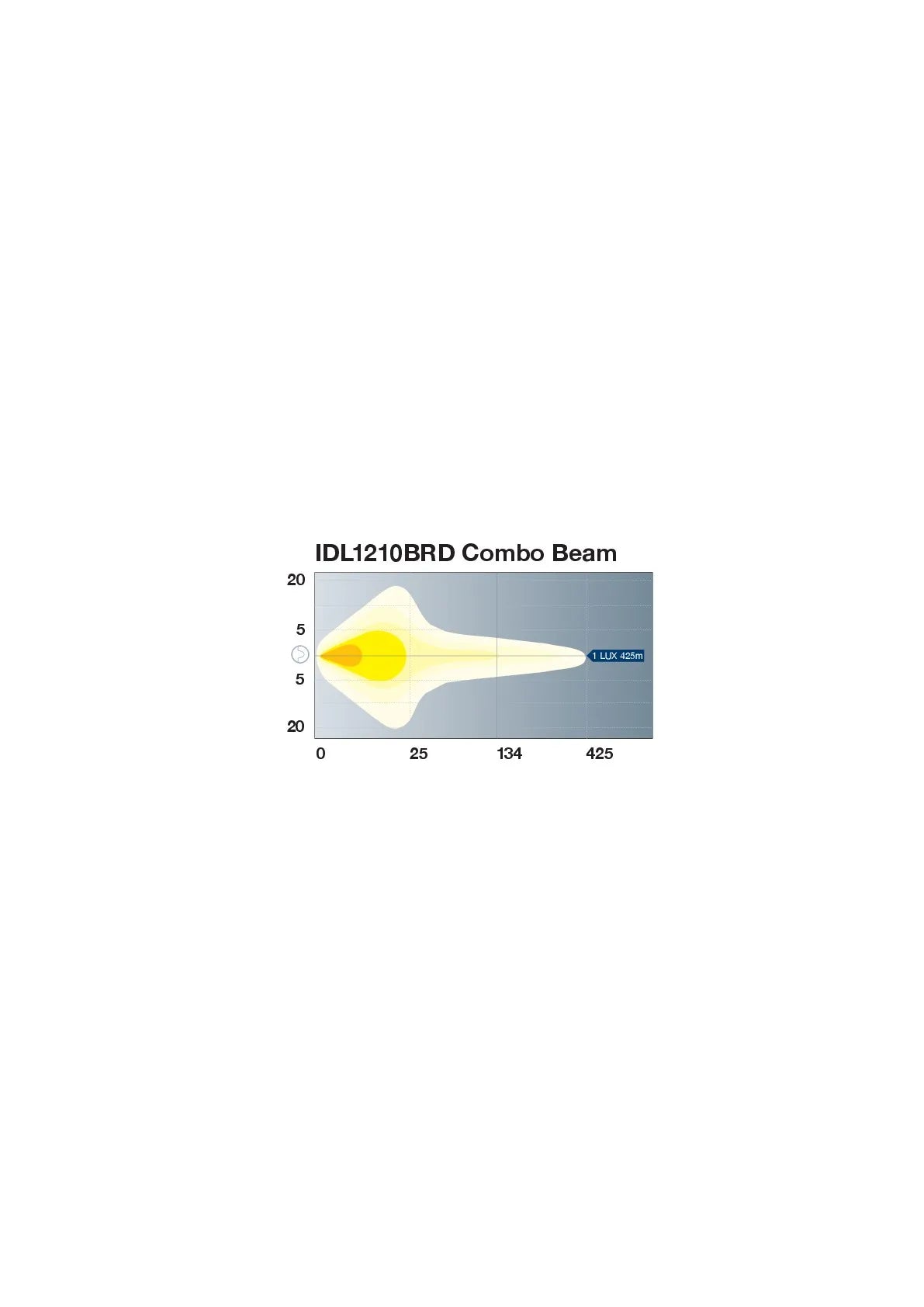

10° Combined Spot (Pencil) and 30° Flood (Spread) Beam
12 x 10 Watt High Intensity CREE LED's
12,000 Raw and 9,600 Effective Lumens and 6,500K
297,025cd Peak Beam Intensity
Current Draw: 7.7amp @ 12 Volt and 3.6amp @ 24 Volt
Patented TIR Polycarbonate Retractors and Reflectors with Lexan Polycarbonate Lens
Integrated Electronic Thermal Management (ETM)

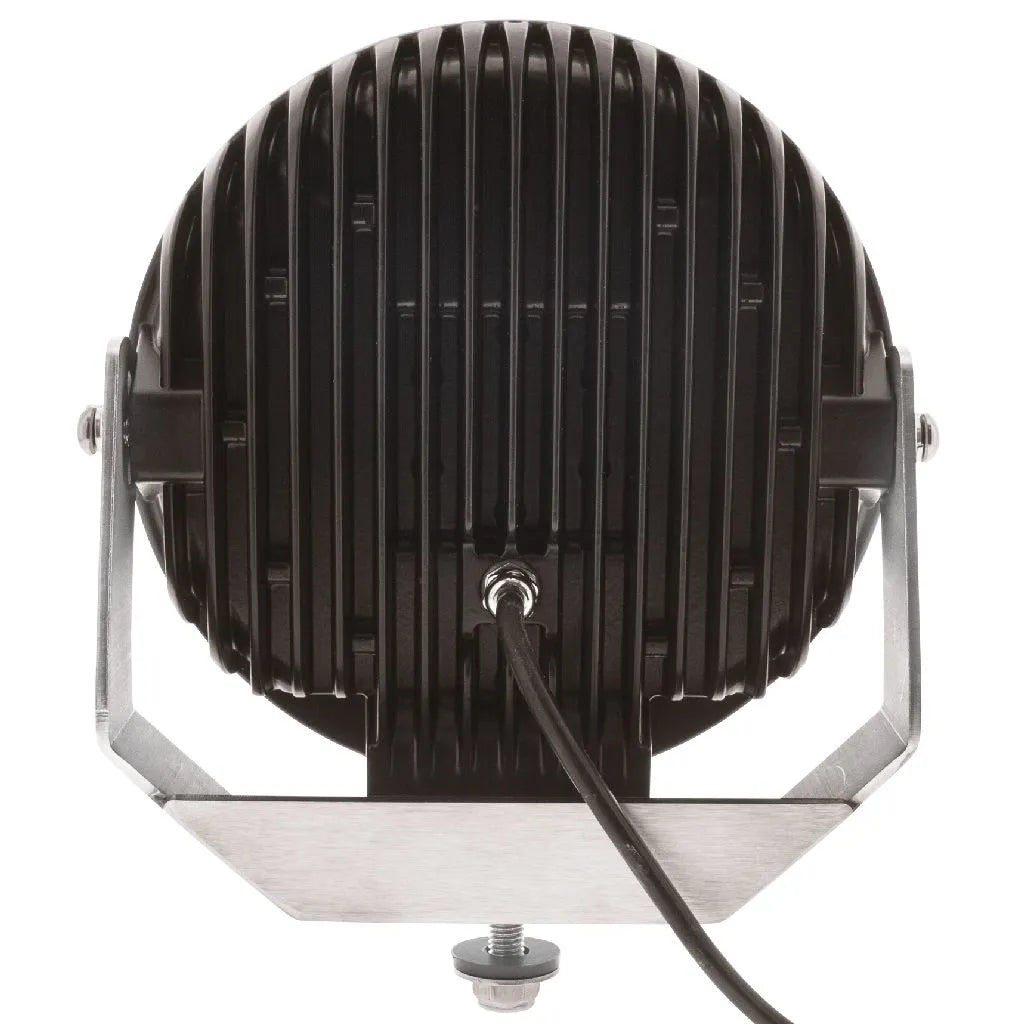

Black anodised Powder coated Die Cast Aluminium Alloy (ADC12) Housing with integrated
Heat-Sink and Pressure Equalising Vent
Stainless Steel (SUS304) Multiple Bolt Mount Bracket and Hardware
230mm Lead with 2 Pin Deutsch Plug
Over and Under Voltage Protection
Reverse Polarity Protection
UV, Water and Shock resistant to 6G
Anti-rust, Corrosion and Freezing Resistance
50,000 Hours LED Lifespan
ECE R112 (Ref 37.5), R10, R7 and CE Approved
IP68 and IP69K Rating
Environment Temperature: -40°C ~ +60°C
5 Year Warranty
Weight: 900g
.
