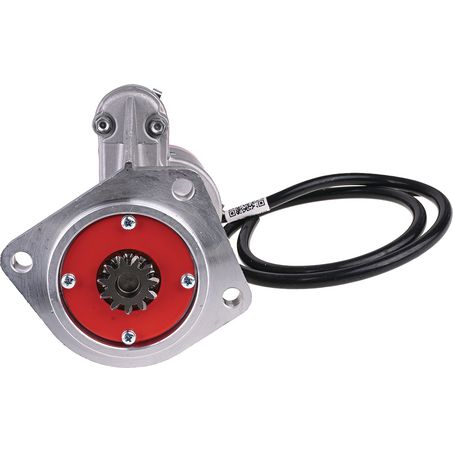

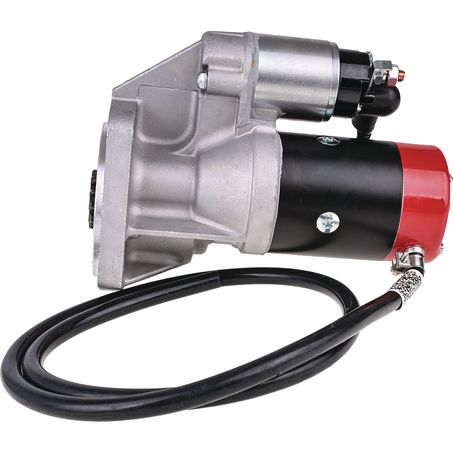

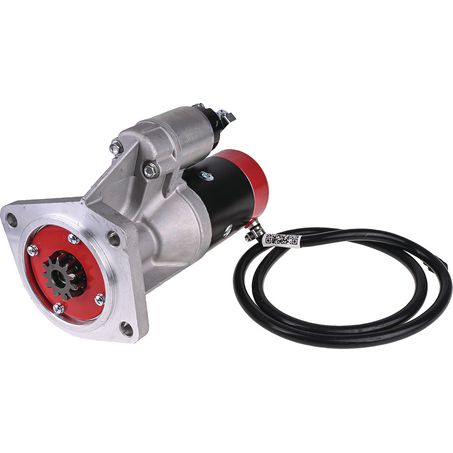

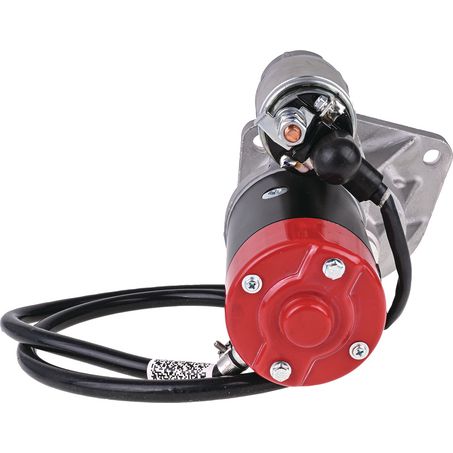

OEX Starter Motor 12V 11Th CW - Water Resistant
Suits Nissan Patrol, TD42, TD42T
Check voltage drop at the starter switch terminal and the battery positive terminal on the starter. Excessive voltage drop commonly causes premature starter failure.
| Description | OEX Starter Motor 12V 11Th CW - Water Resistant |
| Warranty | 3yr Passenger 1yr Commercial |
| Flange Diameter | 105mm |
| Mount Centres A | 140mm |
| Mount Centres B | 115mm |
| Mount Centres C | 80mm |
| Mount Hole Diameter | 13 |
| Number of Teeth | 11 |
| Overall Length | 236mm |
| Pinion at Rest | 10mm |
| Pinion Diameter | 40mm |
| Power Rating | 2.2kW |
| Rotation | CW |
| Suits Unit Make | Hitachi |
| Voltage | 12 |
| Note | • Follow included instructions. • Do not cut drain tube • Check voltage drop at the starter switch terminal and the battery positive terminal on the starter. Excessive voltage drop commonly causes premature starter failure. |
| New / Reman. | New |
| Starter Mount Type | 3 Hole |
| OEM Number | HXS025 |
| Weight | 6.3kg |
| Features | • Water resistant • Follow included instructions. • Do not cut drain tube • Check voltage drop at the starter switch terminal and the battery positive terminal on the starter. • Excessive voltage drop commonly causes premature starter failure. |
