RACEWORKS EFI 800HP 3PORT FUEL PRESSURE REGULATOR | FPR-502BK

FPR-502BK
NZRACEWORKS
$324.50
$324.50
Sold out, Please enquire.
Tax included. Shipping calculated at checkout.

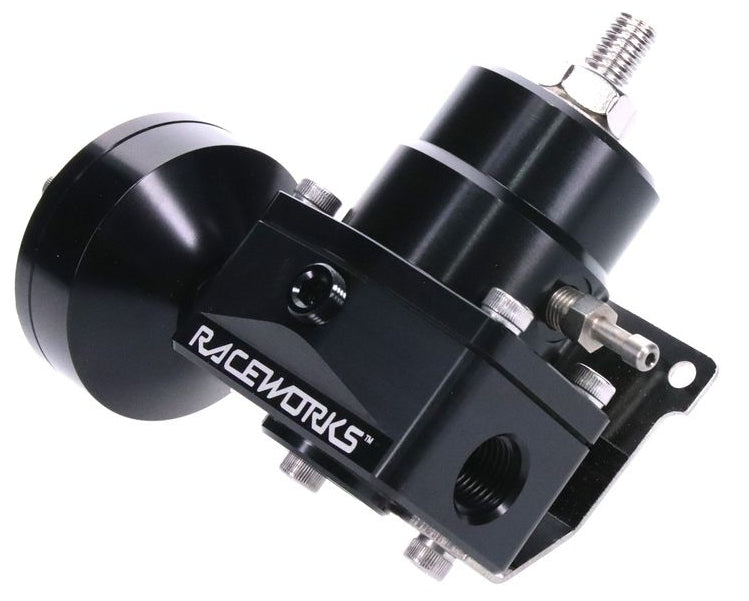

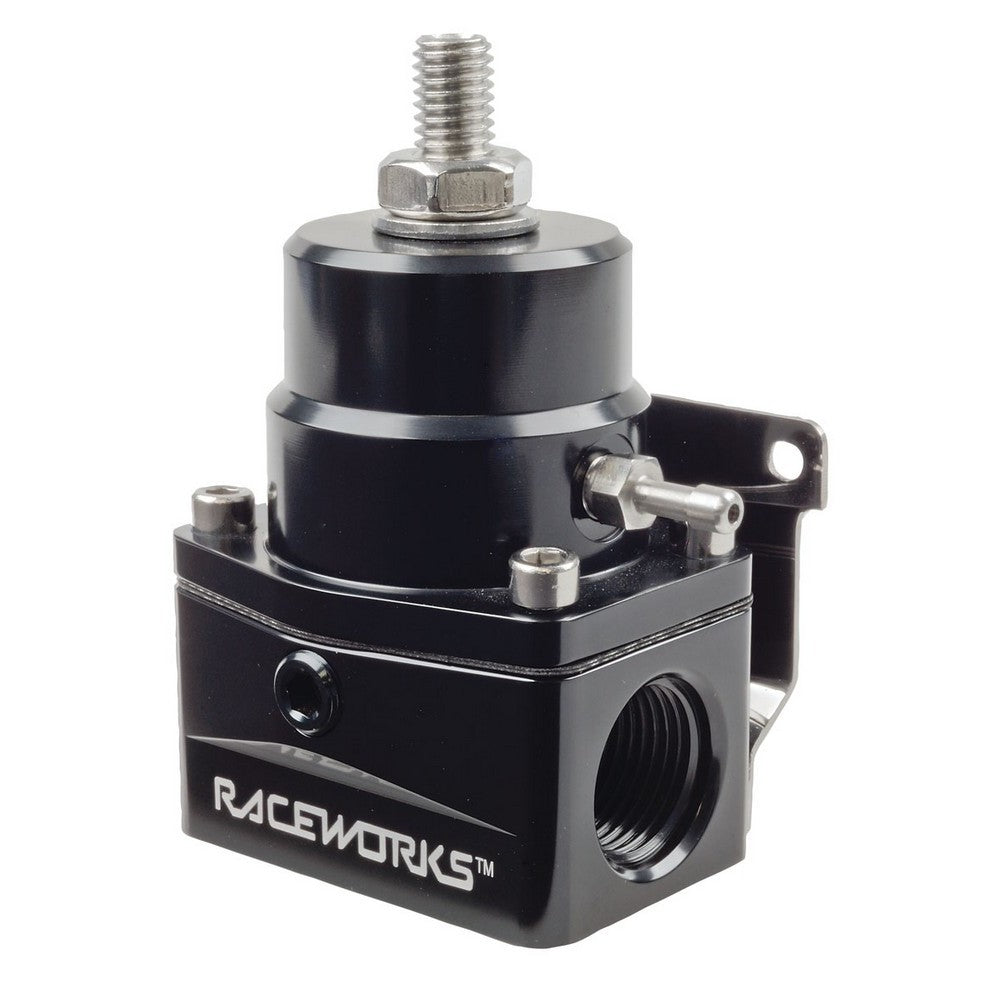

RACEWORKS EFI 800HP 3PORT FUEL PRESSURE REGULATOR AN-10 PORTS

Specifications Part Number
2 x AN-10 Inlets and AN-10 Return. 1/8 NPT Gauge Port. Base Pressure Range of 40-75PSI (2.75-5.2Bar). Boost Referenced (1:1 Ratio). Boost Reference Port is 1/16 NPT. Dimensions are 101mm high, 62mm wide and 60mm deep with no fittings. E85 and PUMP Fuel Safe. Bypass Rate of 550LPH. FPR-502BK

FUEL PLUMBING GUIDE

Fittings to Suit

AN Male Flare Straight



AN-6 RWF-920-06-10BK
AN-8 RWF-920-08-10BK
AN-10 RWF-920-10BK
AN-12 RWF-920-12-10BK



RWF-920-08-10BK

Barb Straight



5/16 RWF-414-10-05BK
3/8 RWF-414-10-06BK
1/2 RWF-414-10-08BK
5/8 RWF-414-10-10BK



RWF-414-10-06BK

Barb 90deg



3/8 RWF-415-10-06BK
1/2 RWF-415-10-08BK



AN Male Flare Straight Long



AN-10 RWF-920-10LBK



RWF-920-12LBK

AN Male Flare 45deg



AN-10 RWF-923-10BK



RWF-923-10BK

AN Male Flare 90deg



AN-8 RWF-922-08-10BK
AN-10 RWF-922-10BK
AN-12 RWF-922-12-10BK



RWF-922-10BK

Banjo Kit



AN-6 RWF-909-06-10BK
AN-8 RWF-909-08-10BK
AN-10 RWF-909-10BK



RWF-909-08BK-MEDRES

AN Female Swivel



AN-10 RWF-907-10BK



RWF-907-10BK-MEDRES

AN ORB Male



AN-8 RWF-921-08-10BK
AN-10 RWF-921-10-10BK



RWF-921-08-08BK-MEDRES

1/8 NPT Port



RWF-813-10-02BK



RWF-813-06-02BK-MEDRES

Blanking Plugs



Int Hex Plug RWF-814-10BK



RWF-814-06BK-MEDRES



Ext Hex Plug RWF-813-10BK



RWF-813-10BK-MEDRES
