| Bosch 10 Digit Number | 0242229613 |

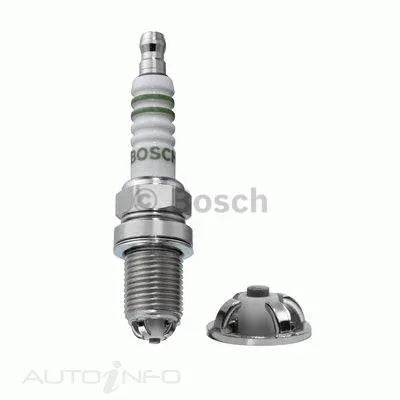

| Key Description | Spark plug, Nickel |
| Connection Terminal | DIN/SAE head cannot be loosened |
| Electrode Gap (mm) | 1.6 |
| Center Electrode Core Material | NiY+Cu |
| Center Electrode Tip Material | NiY |
| Diameter Center Electrode (mm) | 2.6 |
| Ground Electrode Material | NiY |
| Ground Electrode Quantity | 4 |
| Hex Size (mm) | 16 |
| Tightening Angle | 90 |
| Resistor value (kOhm) | 5 |
| Spark position (mm) | 5 |
| Seal seat | flat-crushable |
| Length (mm) | 74.4 |
| Thread (mm) | M 14 x 1,25 |
| Thread Length (mm) | 19 |
| Tight. Torque (Nm) | 28 |
| Net Weight (kg) | 0.042 |
0242229613
