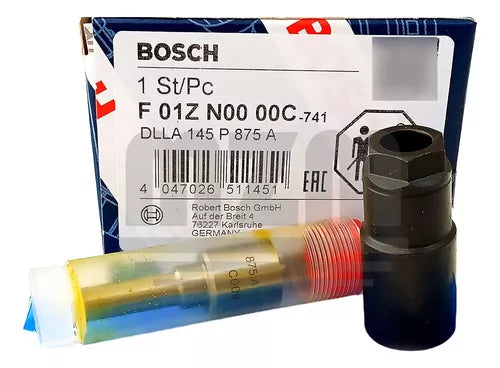

BOSCH COMMON RAIL NOZZLE KIT 4M41 MITSUBISHI | F01ZN0000C

BOSCH COMMON RAIL NOZZLE KIT 4M41 MITSUBISHI

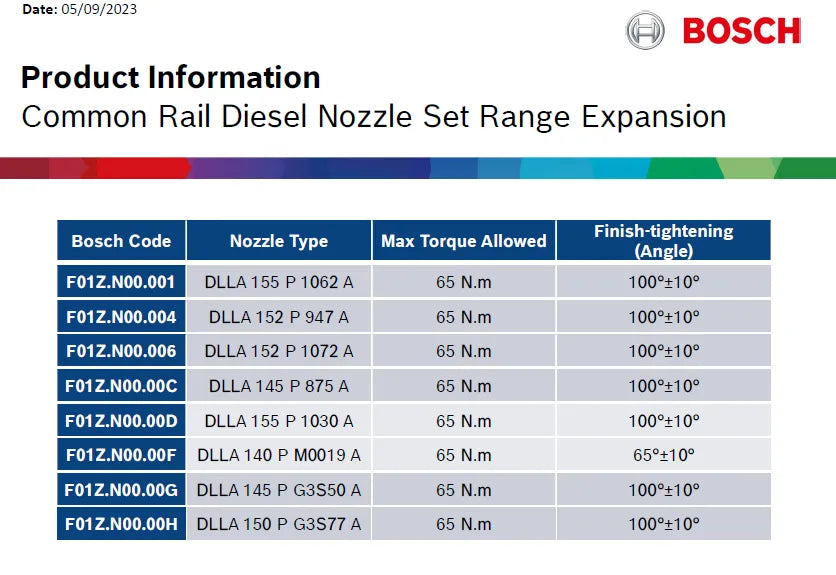

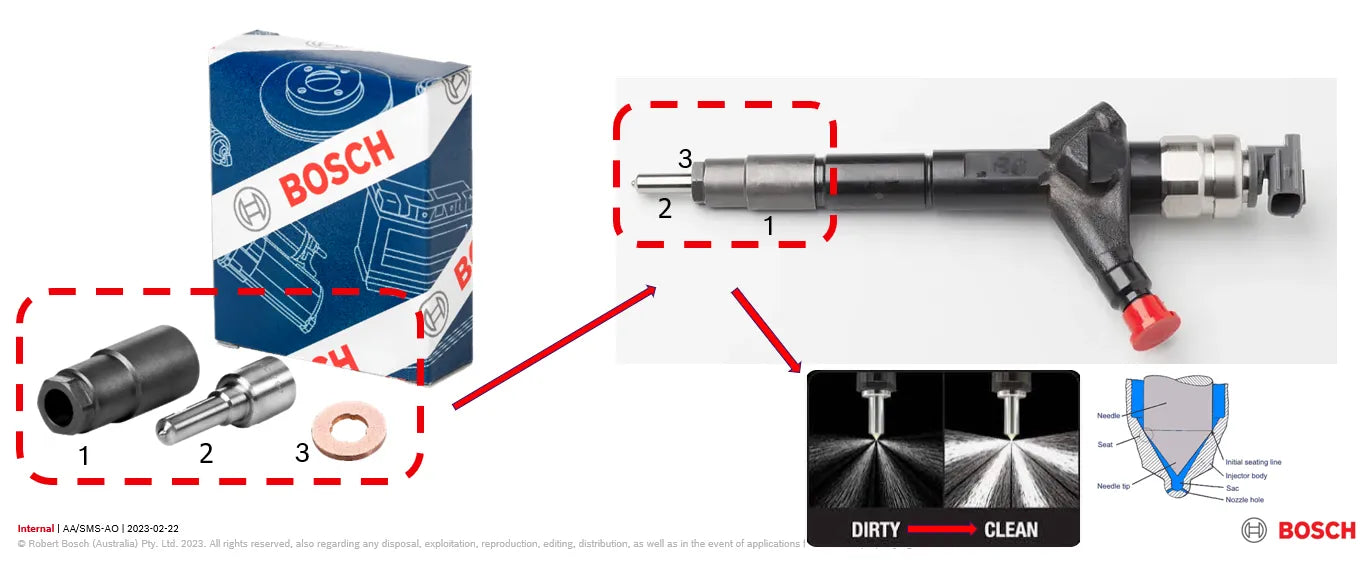

Kit includes Nozzle & components for 4 x injectors. Fits OE injector # 095000-5760 Quality assurance: Replace common rail nozzle as a set The common market practice for first-stage repairs of the common rail injection system is to‚ replace the nozzle only. Bosch recommends replacing the nozzle, cap nut, and high-pressure‚ seal ring altogether for greater repair quality assurance since they are developed and tested‚ for functionality, quality, and safety in unison. Bosch Code Nozzle Type Max Torque Allowed
Finish-tightening
(Angle)
F01Z.N00.001 DLLA 155 P 1062 A‚  ‚  65 N.m 100‚°‚±10‚°
F01Z.N00.004 DLLA 152 P 947 A‚  ‚  ‚ 65 N.m 100‚°‚±10‚°
F01Z.N00.006 DLLA 152 P 1072 A‚  ‚ 65 N.m 100‚°‚±10‚°
F01Z.N00.00C DLLA 145 P 875 A‚  ‚  ‚ 65 N.m 100‚°‚±10‚°
F01Z.N00.00D DLLA 155 P 1030 A‚  ‚ 65 N.m 100‚°‚±10‚°
F01Z.N00.00F DLLA 140 P M0019 A 65 N.m‚  65‚°‚±10‚°
F01Z.N00.00G DLLA 145 P G3S50 A 65 N.m 100‚°‚±10‚°
F01Z.N00.00H DLLA 150 P G3S77 A 65 N.m 100‚°‚±10‚°
