MASTER RELAY BYPASS SWITCH KIT
Energise a Fuel Pump by the Push of a Switch!
Overview
Quickly troubleshoot fuel pump relay circuits or any other automotive relay circuits. The Relay Bypass Switch plugs in place of the relay and provides direct control over that circuit.
The kit includes 6 switches for the most commonly used automotive relays and can be used to activate the fuel pump when the engine is not running (or headlight circuits, air conditioning or thermo fans and more), allowing the fuel pressure or other electrical circuits to be tested.
Convenient Diagnostic kit
Simple universal direct fit relays with on/off switch
Uses include testing Fuel pumps and Thermo fans circuits and operations
Supplied as a set of 6 most commonly used automotive relays in handy plastic workshop kit
Features:
Plugs in place of relay
Actuates fuel pump when the engine is not running
Controls fuel pump or other circuits independent of ?key on? systems
Operating range: 20 Amp continuous, 30 Amp surge (12V)
Covers most Domestic and Imported applications
Application List:
EQP-109-A: Small Spade Relay 2000 and Newer Domestic and Import
EQP-109-B: Medium Spade Relay Domestic and Import
EQP-109-C: Large Spade Relay Volkswagen 1999-2005 Audi 2004-2006
EQP-109-D: Large Spade Relay GM, Chrysler, and Japanese 1985-2008
EQP-109-E: Medium Spade Relay BMW 1995-2006
EQP-109-F: Large Rectangular Relay GM, Chrysler, and Japanese 1995-2007
WARNING: When used for fuel system testing ensure the fuel pump relay is correctly identified before the test relay is substituted as many relays appear identical. ECU or other damage may occur if incorrectly substituted for the main relay or other.

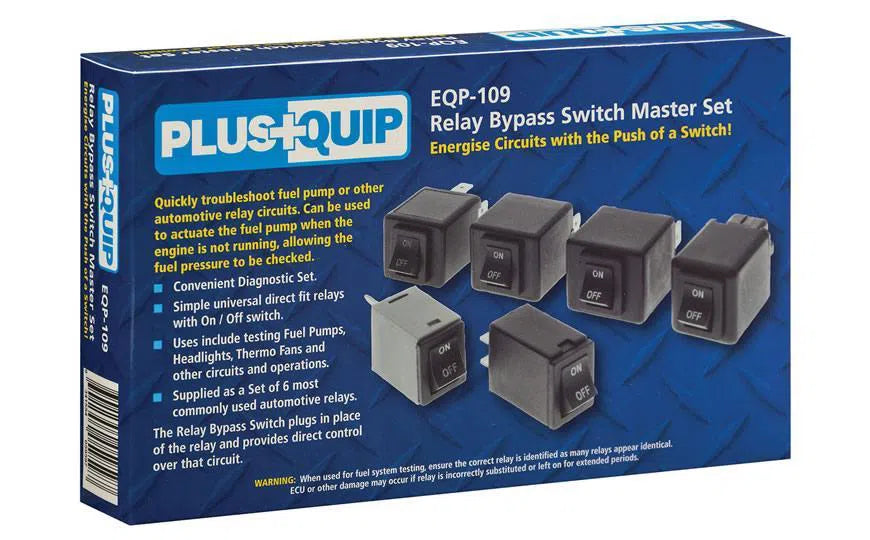

EQP-109 Relay Bypass Switch Master Kit
Specifications
Dimensions
Length: 170mm
Width: 110mm
Height: 30mm
Weight: 0.1kg
EQP-109 Relay Bypass Switch Master Kit
