MULTIMETER AND INFRARED THERMOMETER
Overview
This automotive auto ranging multimeter is suited to the automotive professionals, with features that will assist in their everyday and also the more comprehensive electrical testing.

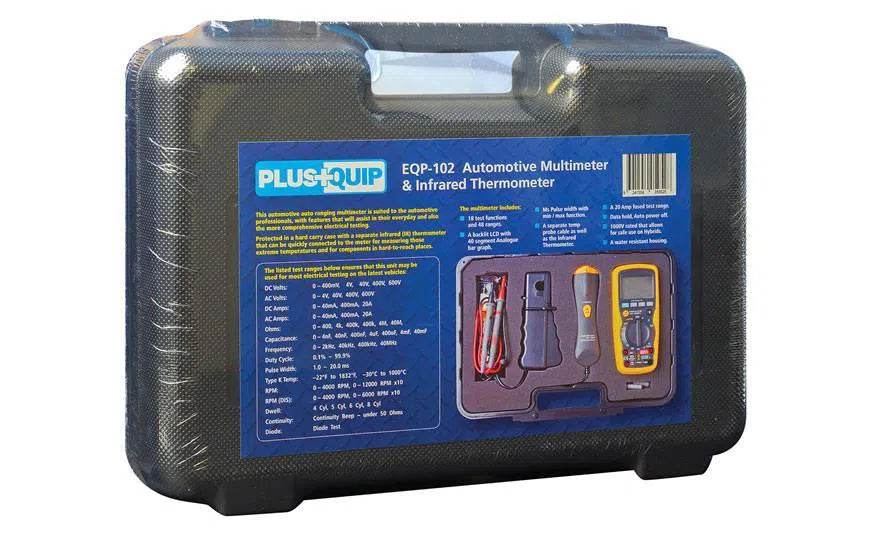

Protected in a hard carry case with a separate infrared (IR) thermometer that can be quickly connected to the meter for measuring those extreme temperatures and for components at those hard to get to places.
The multimeter includes:
18 test functions and 48 ranges.
A backlit LCD with 40 segment Analogue bar graph.
Ms Pulse width with min/max function.
A separate temp probe cable as well as the Infrared Thermometer.
A 20 Amp fused test range
Data hold, Auto power off.
1000V rated that allows the safe use on Hybrids.
A water resistant housing Waterproof to IP67 standards
Test Leads, K-Type Temperature Probe, Infrared Temperature adapter, Inductive Pickup, and User Instructions included in Hard Moulded Case
Features
Laser guided infrared temperature sensor
Also measures Temperature via Temp Probe in Both Fahrenheit and Celsius
Hybrid Safe CAT III 1000 volt safety rated
Large LCD Display with White LED Back-lighting and 40 Segment Analog Bar graph
Peak Min/Max records transient voltages as fast as 1 millisecond
Min/Max Mode records variations in all functions
Milliseconds Pulse Width Measures Fuel Injector ON -TIME
Inductive RPM Readings for both DIS and Conventional Ignitions
20 Amp Test Range ? Dual Fuse Protection
Data Hold, Auto Power-Off, + Trigger Adjust
Shock absorbing double moulded housing
EQP-102 Automotive Multimeter and Infrared Thermometer
Specifications
Dimensions
Height: 182 mm
Width: 82 mm
Depth: 55 mm
Weight: 360 Grams
The listed test ranges below ensures that this unit may be used for most electrical testing on the latest vehicles:
DC Volts: 0-400mV, 4V, 40V, 400V, 600V
AC Volts: 0-4V, 40V, 400V, 600V
DC Amps: 0-40mA, 400mA, 20A
AC Amps: 0-40mA, 400mA, 20A
Ohms: 0-400, 4k, 400k, 400k, 4M, 40M,
Capacitance: 0-4nF, 40nF, 400nF, 4uF, 400uF, 4mF, 40mF
Frequency: 0-2kHz, 40kHz, 400kHz, 40MHz
Duty Cycle: 0.1% ? 99.9%
Pulse Width: 1.0 ? 20.0 ms
Type K Temp: -22F to 1832F, -30C to 1000C
RPM: 0-4000 RPM, 0-12000 RPM x10
RPM (DIS): 0-4000 RPM, 0-6000 RPM x10
Dwell: 4 Cyl, 5 Cyl, 6 Cyl, 8 Cyl
Continuity: Continuity Beep ? under 50 Ohms
Diode: Diode Test
Instruction
EQP-102 Multimeter Instructions for Use PDF
EQP-102 Automotive Multimeter and Infrared Thermometer
