FUEL Line Fitment Tool
Overview
Removing and fitting flexible plastic fuel hose on an In tank fuel pump assembly during a fuel pump replacement without specialty tools can be a difficult task and potentially create areas where fuel under pressure may be released in the fuel tank and cause many performance and drivability problems.

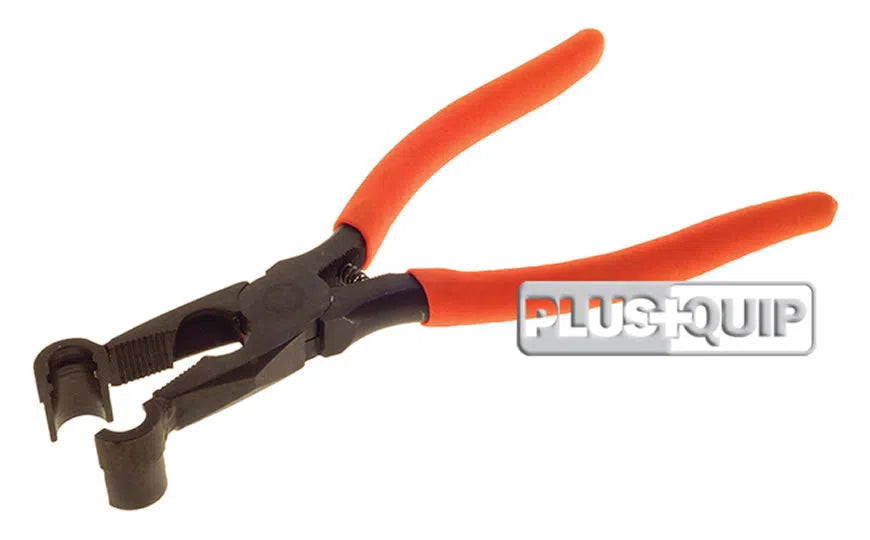

The EQP-029 fuel hose removal and fitting tool has been developed as a quick and simple means of securing the old or new fuel hose during the removal and fitting procedure.
For fitting and removal of fuel hose on In tank fuel pump assembly's
Simple and safe means of securing new or old flexible plastic fuel hose
Minimises damage to hose and fittings, and prevents leakage
Suitable for fuel pump outlets with or without barbs

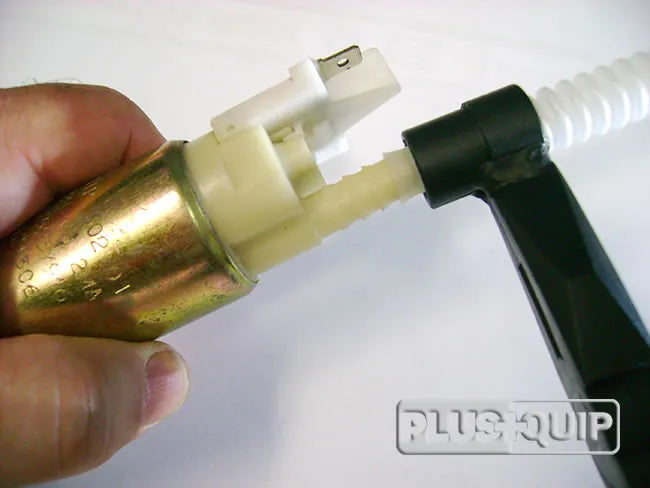

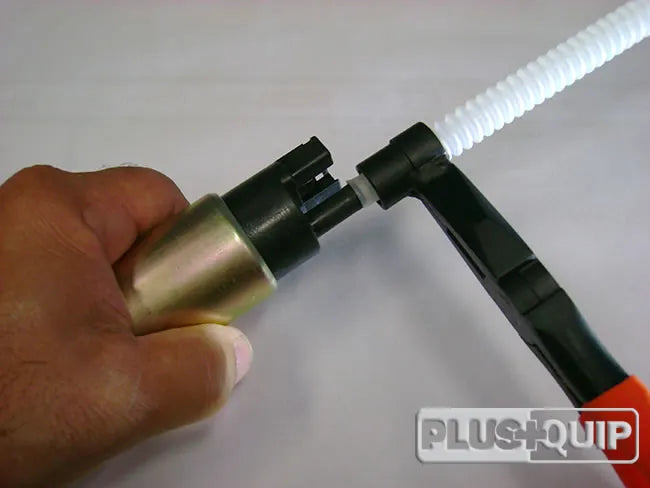

The specially designed clamp pliers allows the fuel hose ends to be attached to the fuel pump and housing fittings minimising any damage to hose and fittings and preventing any leakage.

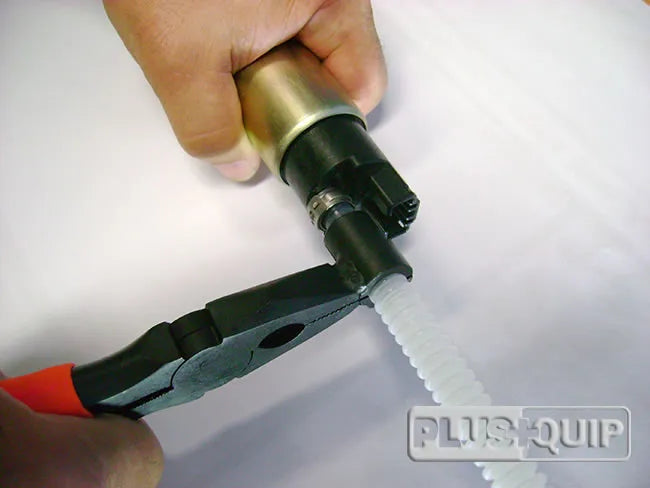

The EQP-029 can be used on both fuel pump outlets with or without barbs, but it is important to fit a suitable clamp using an EQP-020 on the fittings that do not incorporate barbs to ensure a correct seal.
Specifications
Dimensions
Length: 230mm
Width: 100mm
Height: 60mm
Weight: 0.4 kg
