HI VIS VOLT PRO PROBE
Overview
High visibility, simple to use, one handed dynamic voltage testing. Indicates Power and Grounds. Test the circuit's ability to deliver current and identify loose, corroded or broken wires. Capture intermittent spikes or drops in voltage. Take Voltage Snapshots in any mode, any time.
Dynamic voltage drop testing
Voltage snapshot
Min/Max glitch capture
Power and ground LED indicators
Computer safe
Features:
Large super bright LED readout
Super bright LED light
Mode button
Mode LED, Power/Ground LED?s
4in Removable probe extension
Limited Lifetime Warranty

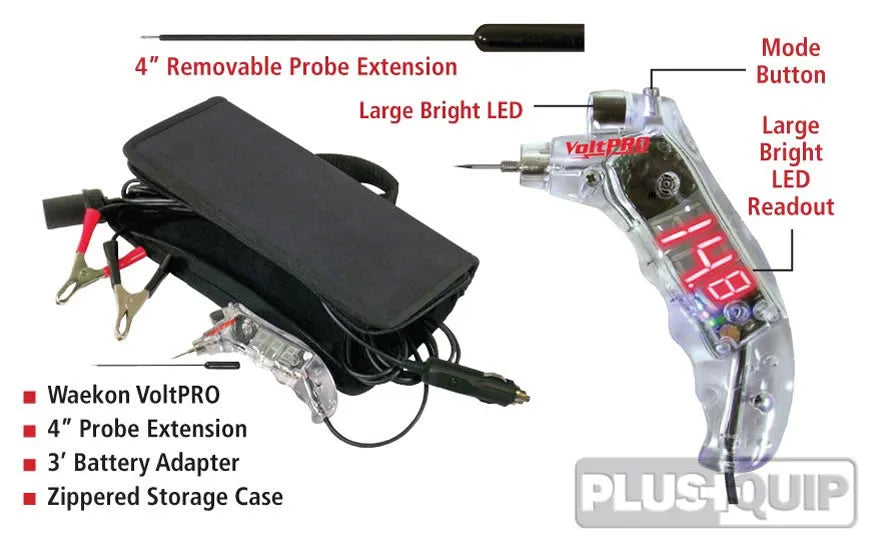

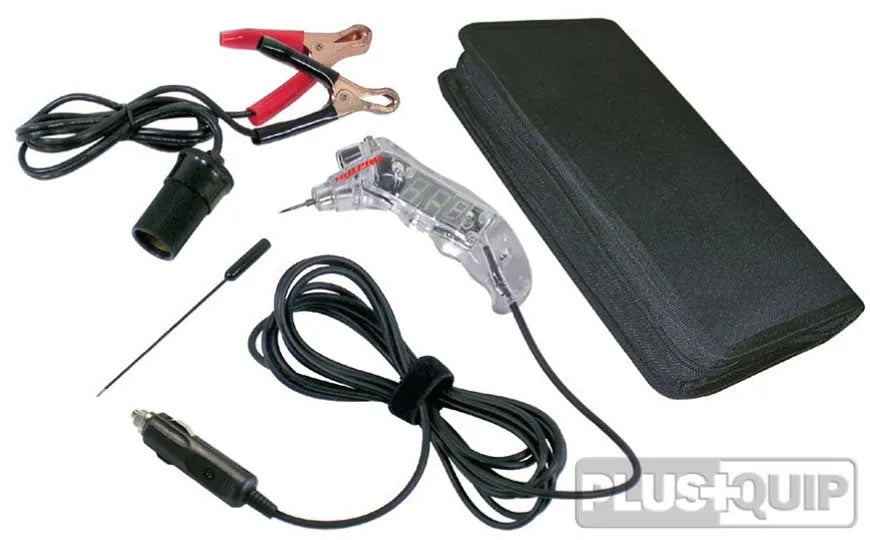

Kit Includes:

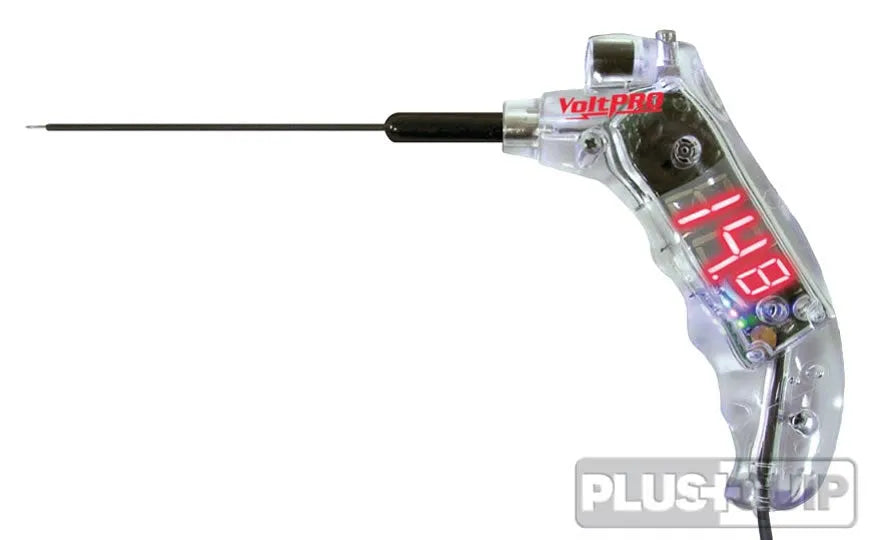

VoltPRO Probe
4in Probe extension
2ft Battery adapter

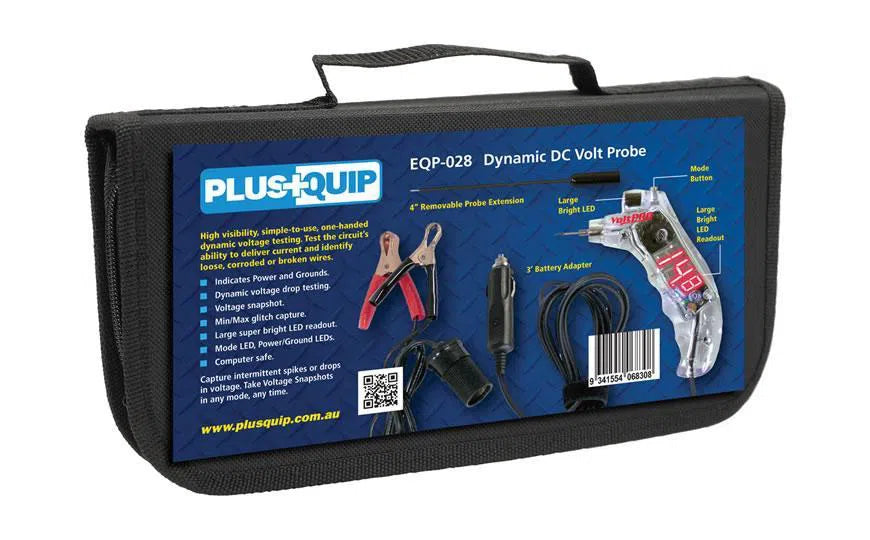

Zippered storage case
EQP-028 dynamic dc volt probe
Specifications
Dimensions
Length: 152mm
Width: 279mm
Height: 38mm
Weight: 1kg
Range: 0-99.9 VDC
Accuracy: +/- 1% full scale
Resolution: 0.1 VDC
Sample rate: 100/sec
Instruction
The VoltPRO DC Probe is easy to use allowing one handed dynamic voltage testing.
It operates in several modes:
Circuit Loading Mode - Test circuit's ability to delivery current (voltage drop testing)
Glitch Capture Mode - Displays intermittent increase/decrease in voltage
Normal Mode - Measure DC voltage
Red/Green LED?s - Identify Power and Ground
Voltage Snapshot - Tap mode button to lock reading in any mode
Computer Safe - Safe to use on complex vehicle systems
