DISCONNECT TOOL FOR QUICK SNAP CONNECTIONS
Overview
Tool set for the releasing of quick?snap connectors commonly used on fuel lines in modern vehicles.
These tools allow for the safe and easy disconnection of the quick-release connectors without any damage to the connector or fuel line. The tools are curved to facilitate easy access to the pipe connectors.
This set of professional equipment includes a comprehensive range of 8 tools in sizes from 8mm to 22mm, to suit a variety of common pipe sizes.
The set covers the following sizes that are colour coded for easy identification:
8mm, 9.5mm, 9.5mm Cooling line, 9.5mm Oil Line, 13mm, 16mm, 19mm, 22mm
This kit is very effective when used in conjunction with the PlusQuip Fuel Line Repair Kit (FSA-007).
EQP 001 Quick Snap Connector Tool Kit
Specifications
Dimensions
Length: 250mm
Width: 220mm
Height: 40mm
Weight: 0.6kg
The set covers the following common pipe sizes:
8mm (5/16?)
9.5mm (3/8?)
9.5mm (3/8?) Cooling line
9.5mm (3/8?) Oil Line
13mm (1/2?)
16mm (5/8?)
19mm (3/4?)
22m (7/8?)
Instruction

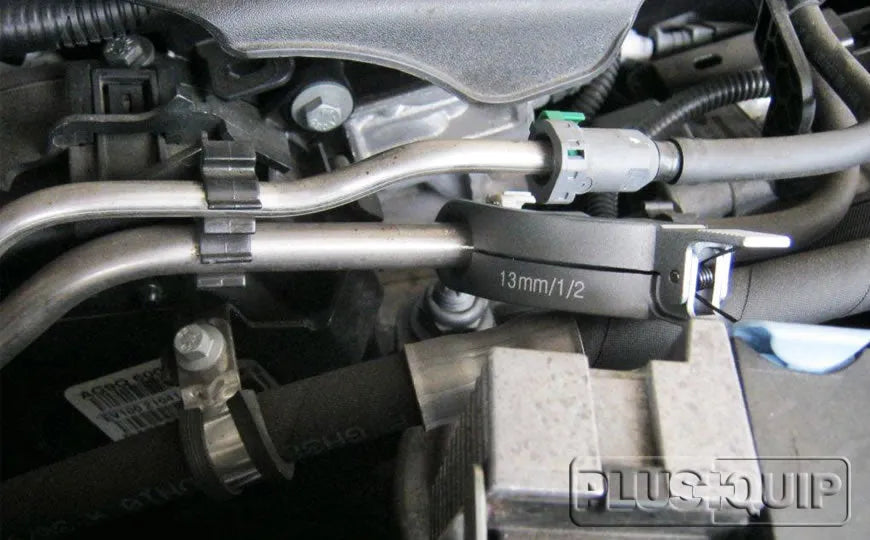

Place the correct size tool over the metal pipe and slide the tool into the fitting to release the locking mechanism.
This allows the quick?snap connector to separate.
NOTE: Use EQP-015 Fuel Line Stopper Kit to prevent excess fluid loss when the connectors have separated.

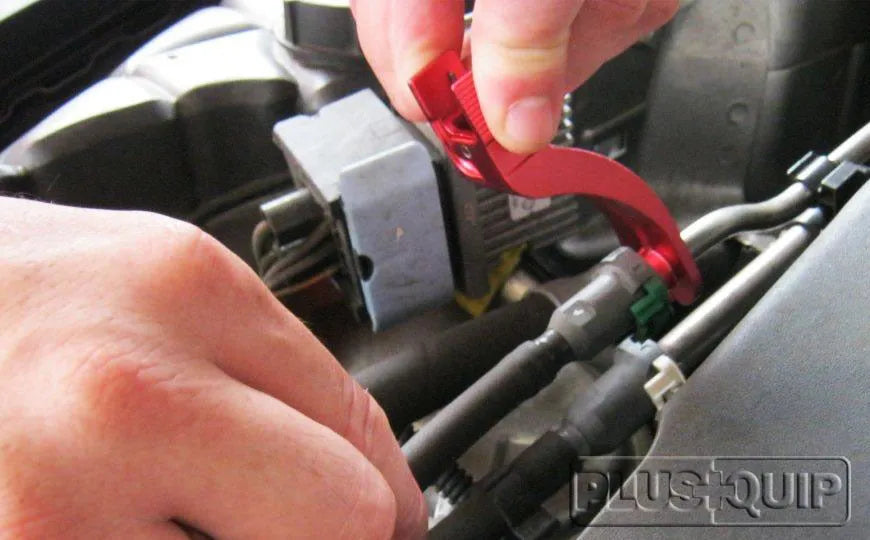

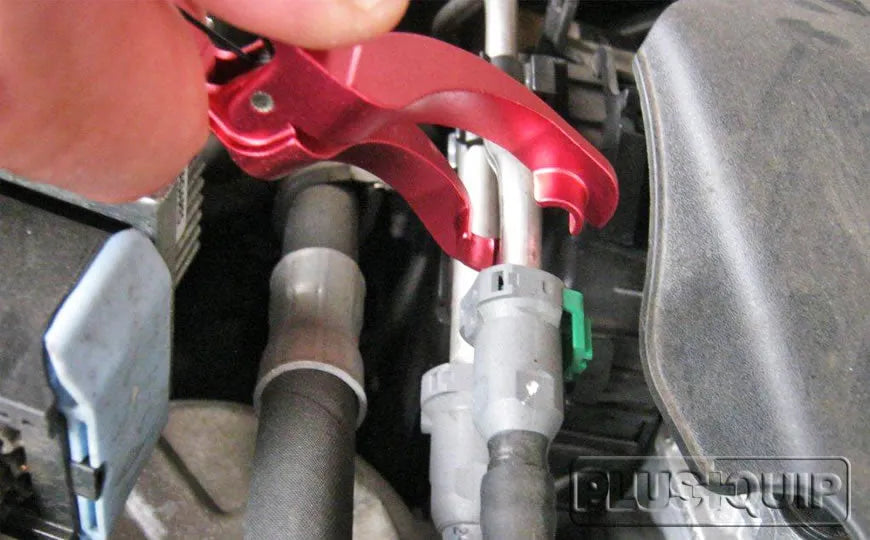

EQP 001 Quick Snap Connector Tool Kit on car

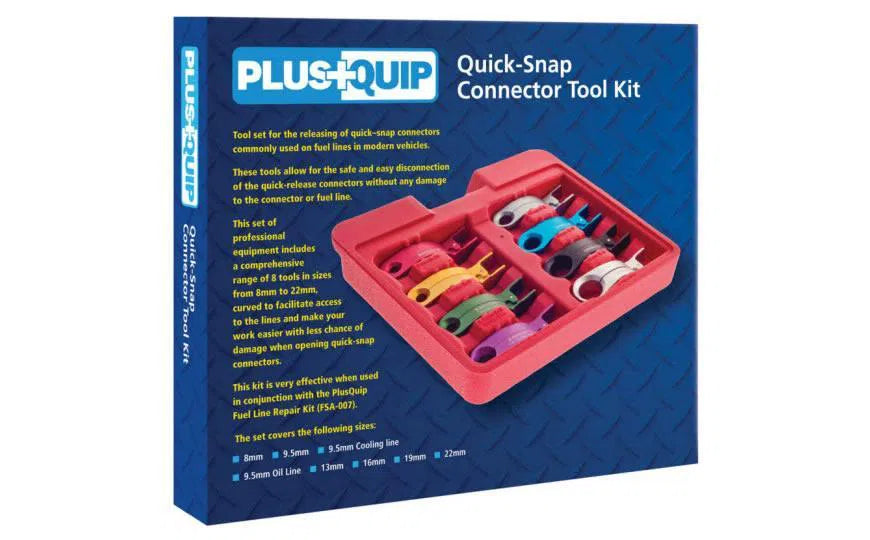

EQP 001 Quick Snap Connector Tool Kit
EQP 001 Quick Snap Connector Tool Kit
