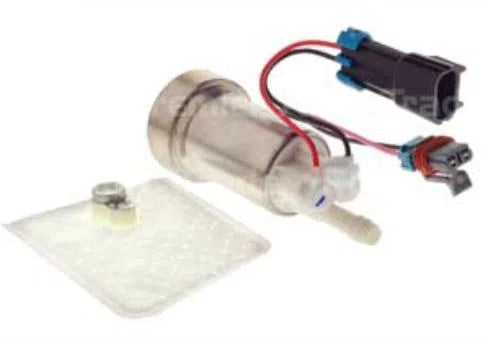

TI AUTOMOTIVE (WALBRO) HELLCAT F90000285 KIT (465LPH @ 3BAR E85 SAFE)
TI AUTOMOTIVE (WALBRO) 525LPH - TI Automotive TCD470 Fuel Pump Highest flow in-tank brushed fuel pump from TI Automotive TI AUTOMOTIVE (WALBRO) Part Number: F90000285 Hellcat + Install Kit 400-1168 Horsepower: 900HP+ at 60PSI, naturally aspirated applications Flow Rate: 470LPH @ 40psi (120+ gph) Fuel: GAS E85
Caution: Extremely High Counterfeit Rate - Buy from an Authorized Dealer Only
F90000285 HELLCAT 525LPH FUEL PUMP HAS THE HIGHEST OUTPUT IN-TANK FUEL PUMP ON THE MARKET
TI Automotive F90000285 39/50 Fuel Pump
Enjoy the highest output on today‚¬„¢s market with our new DCSS 39/50 fuel pump. Able to support an aggressive 700+ horsepower, with a super charger, this innovative dual pumping channel design delivers maximum pressure with superior fuel flow. Operating in both gas and E85, this fuel pump comes with a check valve to avoid system leak-down and extended cranking at start-up. This superior design results in improved hot fuel flow, as well as minimal noise, increasing efficiency by 20% over conventional pumps, delivering unparalleled performance
F90000285 Flex Fuel HP Pump The innovative design of the DCSS 39/50 features a single impeller with two parallel rows of turbine blades. Designed for high performance engines exceeding 500hp.
‚¬¢ Highest flow in-tank brushed fuel pump offering from TI Automotive
‚¬¢ Featuring award winning DCSS technology
‚¬¢ E85 compatible
‚¬¢ Internal check valve ‚¬€ prevent fuel system pressure bleed down ‚¬€ prevent extended cranks
‚¬¢ High pressure relief setting ‚¬€ support supercharger and turbo applications
‚¬¢ Capable of supporting 900+HP at 60PSI naturally aspirated applications
‚¬¢ Flush mountable to existing hanger with installation kit 400-1168
Fuel: GAS; E85
Horsepower: 900+ at 60PSI, naturally aspirated applications
Over All Pump Length: 131mm
Main Housing Diameter: 39mm
Lower Housing Diameter: 50mm
Fuel Inlet Diameter: 11mm OD
Fuel Outlet Diameter: 11mm OD
Flow Rate: 470lph @ 40psi (120+ gph)
Test Voltage: 13.5 Volts
