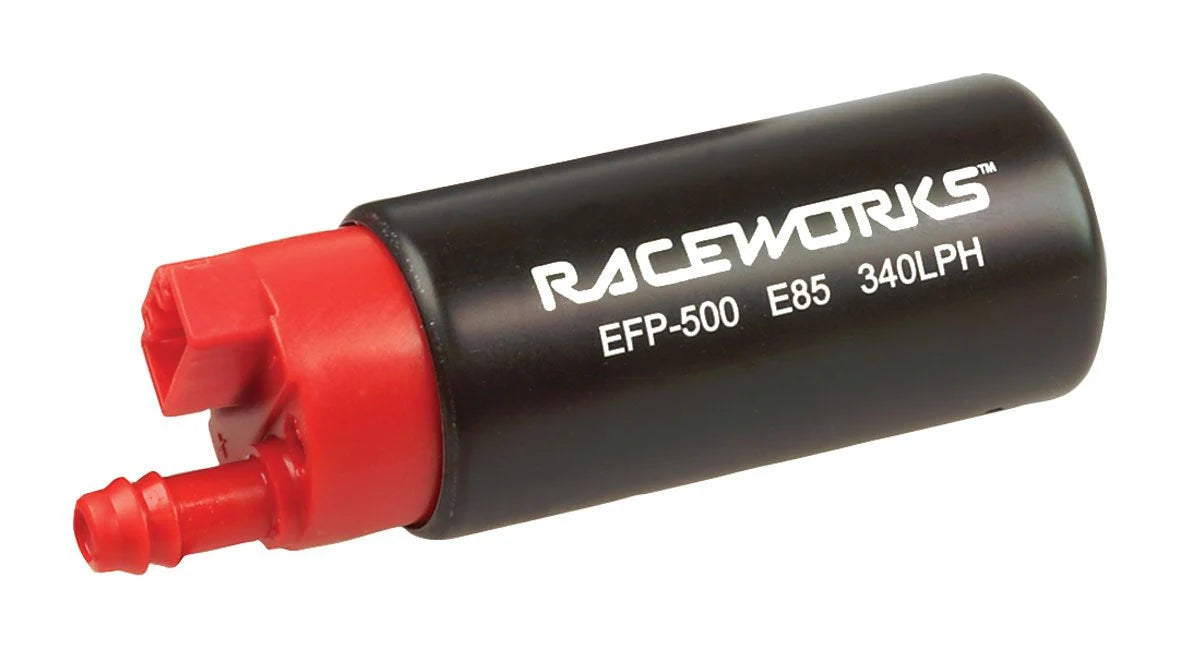

RACEWORKS EFP-500 HIGH PRESSURE (340LPH @ 3BAR E85 SAFE)
RACEWORKS IN-TANK 39MM E85 EFI

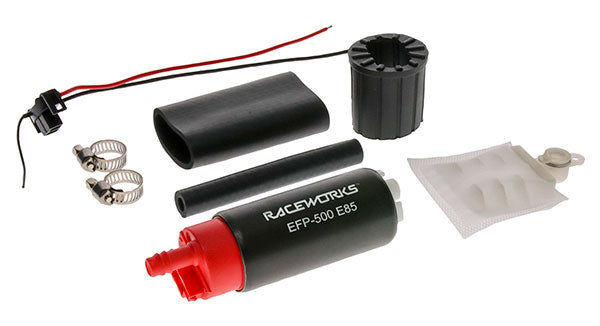

340LPH @ 3bar (12V). For flow details and current draw at 13.5V please consult chart below. 39mm Pump Diameter. Internal Check Valve. Includes 90deg Strainer as pictured. 45deg Strainer also available. Part number is FPS-051.
This pump contains a third wire that is left disconnected. It is a shielding wire.
Upgraded wiring recommended for this pump.
Pump Chart
FLYWHEEL POWER FIGURES (ESTIMATED)
| Normally Aspirated Gasoline | 885HP | 660KW |
| Forced Inducted Low Boost Gasoline | 715HP | 530KW |
| Forced Inducted High Boost Gasoline | 595HP | 445KW |
| Normally Aspirated E85 | 720HP | 535KW |
| Forced Inducted Low Boost E85 | 585HP | 435KW |
| Forced Inducted High Boost E85 | 485HP | 360KW |
