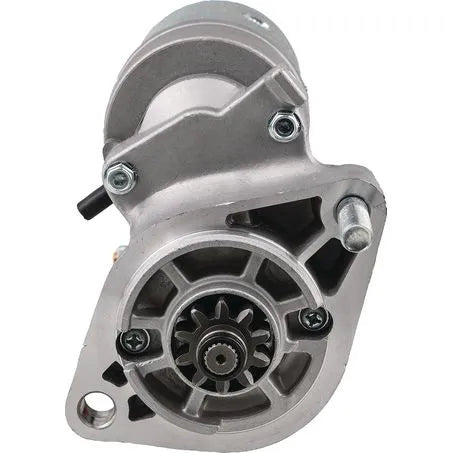

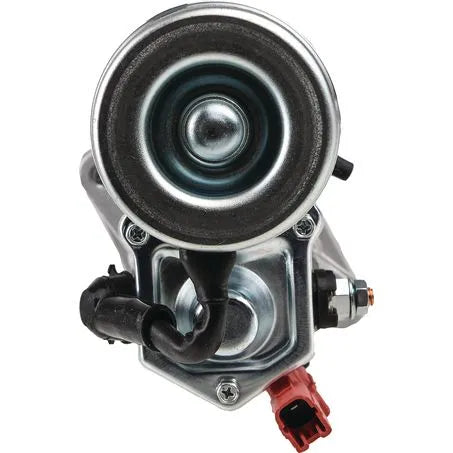

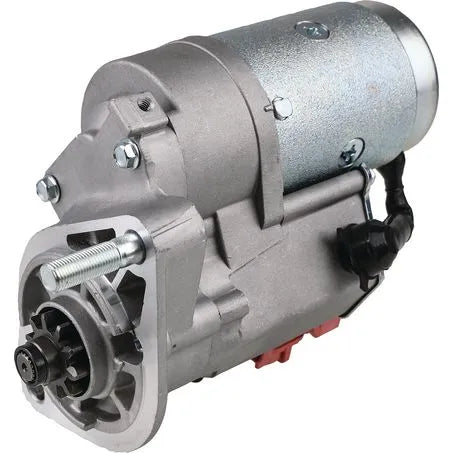

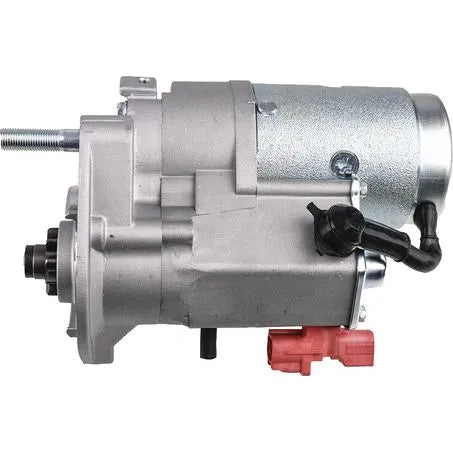

STARTER 12V 10TH CW DENSO STYLE
| Flange Diameter | 82mm |
| Mount Centres A | 130mm |
| Mount Hole Diameter | M12 / 14 |
| Number of Teeth | 10 |
| Overall Length | 240mm |
| Pinion at Rest | 18mm |
| Pinion Diameter | 38mm |
| Power Rating | 2.2kW |
| Rotation | CW |
| Suits Unit Make | Denso |
| Voltage | 12 |
| Note | Start wire terminal suitable for both large and small harness connector. Interchangeable with 11 Tooth version. Replaces 2.7kW Denso starter. |
| New / Reman. | New |
| Starter Mount Type | 2 Hole |
| Wet / Dry Clutch | Dry |
| Weight | 5.9kg |
| Features | • Start wire terminal suitable for both large and small harness connector. • Interchangeable with 11 Tooth version. • Replaces 2.7kW Denso starter. |
| 10 tooth and 11 tooth units are interchangeable. |
| DAIHATSU DELTA V138 Di 3.0L 1KD-FV DOHC 16v Diesel Direct Inj. 4cyl 85kW Cab Chassis RWD [10/03 - 12/06] |
| TOYOTA 4 RUNNER,HILUX SURF KDN215 IV D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 125kW SUV AWD [10/02 - 08/05] |
| TOYOTA 4 RUNNER,HILUX SURF KZN130G,KZN130W II TDi 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 96kW SUV AWD [08/93 - 03/96] |
| TOYOTA CAMROAD KDY230 2.5L 2KD-FTV Diesel Cab Chassis RWD [08/04 - 07/07] |
| TOYOTA CAMROAD KDY231 DiD 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 106kW Cab Chassis RWD [09/07 ON] |
| TOYOTA CAMROAD KDY280 3.0L 1KD-FTV Diesel Cab Chassis RWD [08/04 - 07/07] |
| TOYOTA COMMUTER,HIACE KDH202,KDH212,KDH222 V D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Bus RWD [09/06 - 12/06] |
| TOYOTA COMMUTER,HIACE KDH203R,KDH221,KDH22... V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Bus RWD [08/04 - 01/19] |
| TOYOTA COMMUTER,HIACE KDH205,KDH225,KDH227 V D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 94kW Bus AWD [08/04 - 09/07] |
| TOYOTA COMMUTER,HIACE KDH223 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 100kW Bus RWD [05/10 - 12/14] |
| TOYOTA DYNA KDY221,KDY231 D4d 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 100kW Cab Chassis RWD [10/09 ON] |
| TOYOTA DYNA KDY241 D4d 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 106kW Bus RWD [09/06 ON] |
| TOYOTA DYNA KDY271 D4d 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 106kW Cab Chassis AWD [09/06 ON] |
| TOYOTA DYNA KDY280 2.5L 2KD-FTV Diesel Cab Chassis RWD [01/05 ON] |
| TOYOTA DYNA KDY290 2.5L 2KD-FTV Diesel Cab Chassis RWD [08/04 - 08/07] |
| TOYOTA DYNA,TOYOACE KDY220,KDY230,KDY250 D4d 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 75kW Cab Chassis RWD [08/01 ON] |
| TOYOTA GRANVIA,HIACE REGIUS KCH10 TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 103kW MPV RWD [08/95 - 12/02] |
| TOYOTA GRANVIA,HIACE REGIUS KCH10 TDi 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 96kW MPV RWD [08/95 - 12/04] |
| TOYOTA GRANVIA,HIACE REGIUS KCH16 TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 103kW MPV AWD [08/95 - 12/02] |
| TOYOTA GRANVIA,HIACE REGIUS KCH16 TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 96kW MPV AWD [08/95 - 05/02] |
| TOYOTA HIACE KDH200,KDH220 V D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 75kW Van RWD [01/05 - 09/06] |
| TOYOTA HIACE KDH200,KDH220 V D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Van RWD [09/06 - 07/10] |
| TOYOTA HIACE KDH200,KDH223 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 75kW Van RWD [01/05 - 01/19] |
| TOYOTA HIACE KDH201,KDH221 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 100kW Van RWD [08/07 - 01/19] |
| TOYOTA HIACE KDH201,KDH221 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Van RWD [11/06 - 01/19] |
| TOYOTA HIACE KDH206 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 100kW Van AWD [09/07 - 11/08] |
| TOYOTA HIACE KDH206 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 106kW Van AWD [11/08 - 05/19] |
| TOYOTA HIACE KZH106G,KZH138V IV TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 96kW Van AWD [08/95 - 07/04] |
| TOYOTA HIACE KZH132 IV D 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 96kW Van RWD [08/95 - 08/04] |
| TOYOTA HIACE,REGIUS ACE KCH40G,KZH100,KZH110... IV TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 96kW Bus RWD [08/93 - 08/04] |
| TOYOTA HIACE,REGIUS ACE KDH205,KDH225 V D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 94kW Van AWD [08/04 - 09/07] |
| TOYOTA HIACE,REGIUS ACE KZH106,KZH116,KZH126 IV TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 96kW Bus AWD [08/93 - 08/04] |
| TOYOTA HIACE,REGIUS KCH40W IV TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 104kW Bus RWD [08/99 - 05/02] |
| TOYOTA HIACE,REGIUS KCH46 IV TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 104kW Bus AWD [04/97 - 05/02] |
| TOYOTA HILUX KDN185 III TD 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 125kW SUV AWD [07/00 - 08/05] |
| TOYOTA HILUX KUN16 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 120kW Cab Chassis RWD [02/05 - 08/06] |
| TOYOTA HILUX KUN16 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 126kW Utility RWD [08/06 - 05/15] |
| TOYOTA HILUX KUN16,KUN36 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 120kW Utility RWD [08/05 - 05/15] |
| TOYOTA HILUX KUN16R VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 126kW Cab Chassis RWD [08/06 - 06/15] |
| TOYOTA HILUX KUN25 VII D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 75kW Utility AWD [03/05 - 05/15] |
| TOYOTA HILUX KUN25 VII D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 106kW Utility AWD [12/07 - 05/15] |
| TOYOTA HILUX KUN25R VII D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 88kW Utility AWD [06/06 - 05/15] |
| TOYOTA HILUX KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 120kW Cab Chassis AWD [02/05 - 08/06] |
| TOYOTA HILUX KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 120kW Utility AWD [03/05 - 08/06] |
| TOYOTA HILUX KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 126kW Cab Chassis AWD [08/06 - 09/15] |
| TOYOTA HILUX KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 126kW Utility AWD [08/05 - 09/15] |
| TOYOTA HILUX KZN165 VI TDi 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 85kW Utility AWD [11/01 - 04/05] |
| TOYOTA HILUX KZN165R VI TDi 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 85kW Cab Chassis AWD [12/99 - 04/05] |
| TOYOTA HILUX KZN185 III TDi 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 108kW SUV AWD [08/98 - 06/00] |
| TOYOTA HILUX KZN185 III TDi 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 96kW SUV AWD [12/95 - 07/98] |
| TOYOTA HILUX,TACOMA KDN170,KDN190 VI D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 75kW Utility AWD [11/01 - 07/05] |
| TOYOTA LAND CRUISER 90,LAND CRUISER PRADO,PRADO KDJ90,KDJ95 D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 125kW SUV AWD [02/00 - 08/02] |
| TOYOTA LAND CRUISER 90,LAND CRUISER PRADO,PRADO KDJ90W,KDJ95W D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 120kW SUV AWD [08/00 - 08/02] |
| TOYOTA LAND CRUISER 90,LAND CRUISER PRADO,PRADO KZJ90 TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 103kW SUV AWD [04/95 - 07/00] |
| TOYOTA LAND CRUISER 90,LAND CRUISER PRADO,PRADO KZJ90R,KZJ90W,KZJ95R... TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 92kW SUV AWD [04/96 - 12/02] |
| TOYOTA LAND CRUISER 90,LAND CRUISER PRADO,PRADO KZJ95 TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 96kW SUV AWD [03/00 - 02/03] |
| TOYOTA LAND CRUISER GDJL76R,GDJL78R D-4D 3.5t 2.8L 1GD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 150kW SUV AWD [09/23 ON] |
| TOYOTA LAND CRUISER KZJ71,KZJ78 PRADO IMPORT 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 92kW SUV AWD [05/93 - 05/96] |
| TOYOTA LAND CRUISER PRADO KDJ120,KDJ125 D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 122kW SUV AWD [07/04 - 08/09] |
| TOYOTA LAND CRUISER PRADO KDJ121,KDJ125 D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 127kW SUV AWD [09/02 - 12/10] |
| TOYOTA LAND CRUISER PRADO KDJ125 D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 120kW SUV AWD [09/02 - 08/09] |
| TOYOTA LAND CRUISER PRADO KDJ150,KDJ155 D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 127kW SUV AWD [08/09 - 06/15] |
| TOYOTA LAND CRUISER PRADO KDJ150R,KDJ155R D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 140kW SUV AWD [08/09 ON] |
| TOYOTA LAND CRUISER PRADO KZJ120 D 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 92kW SUV AWD [09/02 - 07/09] |
| TOYOTA LAND CRUISER PRADO KZJ120R D 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 96kW SUV AWD [08/05 - 07/09] |
| TOYOTA REGIUS ACE KDH200 D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Bus RWD [08/04 ON] |
| TOYOTA REGIUS ACE KDH200 D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Van RWD [08/04 - 12/20] |
| TOYOTA REGIUS ACE KDH201,KDH211,KDH221 D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 106kW Van RWD [08/04 - 12/20] |
| TOYOTA REGIUS ACE KDH206 D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 106kW Bus AWD [08/04 - 12/20] |
| TOYOTA REGIUS ACE KDH206 D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 106kW Van AWD [08/04 - 12/20] |
| TOYOTA TOYOACE KDY220,KDY230 DiD 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Cab Chassis RWD [08/04 - 09/07] |
| TOYOTA TOYOACE KDY221,KDY231,KDY241 DiD 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 106kW Cab Chassis RWD [09/07 ON] |
| TOYOTA TOYOACE KDY230 2.5L 2KD-FTV Diesel Cab Chassis RWD [08/04 - 08/07] |
| TOYOTA TOYOACE KDY271,KDY281 DiD 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 106kW Cab Chassis AWD [09/07 ON] |
| TOYOTA TOYOACE KDY290 2.5L 2KD-FTV Diesel Cab Chassis RWD [08/04 - 08/07] |
