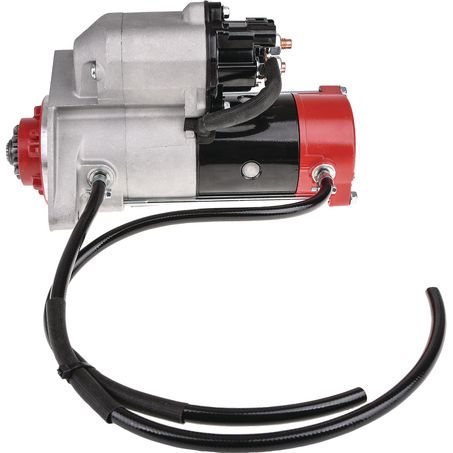

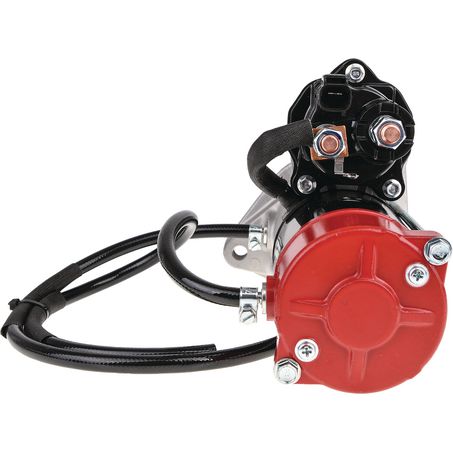

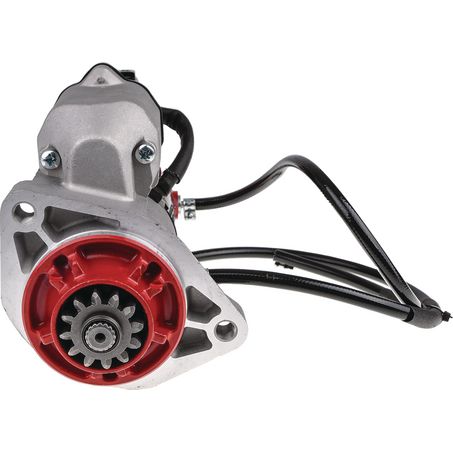

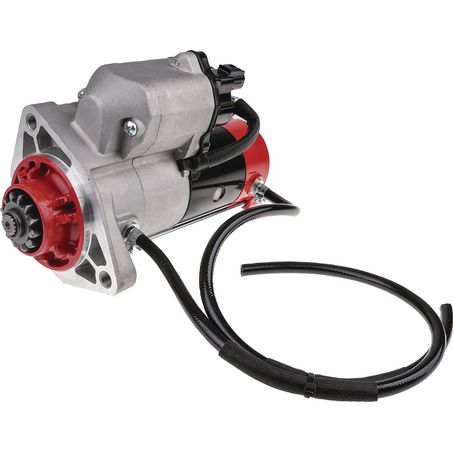

OEX Starter Motor 12V 12Th CW – Water Resistant -SEE NOTE
Suits Toyota Land Cruiser VDJ200, VDJ76R, VDJ78R, VDJ79R
1VD-FTV Euro 4
| Description | SEE NOTE – OEX Starter Motor 12V 12Th CW – Water Resistant |
| Warranty | 3yr Passenger 1yr Commercial |
| Flange Diameter | 91mm |
| Mount Centres A | 131mm |
| Mount Hole Diameter | M12x1.25 |
| Number of Teeth | 12 |
| Overall Length | 280mm |
| Pinion at Rest | 33mm |
| Pinion Diameter | 44mm |
| Rotation | CW |
| Suits Unit Make | Denso |
| Voltage | 12 |
| Note | • Follow included instructions. • Do not cut drain tube. • Voltage drop to the starter motor/starter motor solenoid can cause starter failure. please ensure to check the starter relay and relay base for any burn marks or damage caused by voltage drop. It is highly recommended to replace the starter relay whenever fitting a new starter motor. Starter relay located behind the battery. replacement starter relay part # ACX1944RBL |
