ALT 12V 110A DENSO STYLE
| Pulley Type | Fixed Pulley |
| Adjusting Hole Diameter | M8x1.25 |
| Mount Leg Thickness | 58mm |

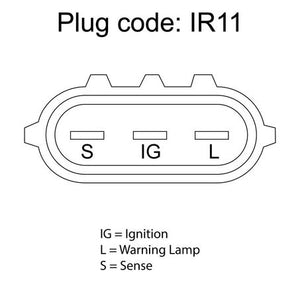

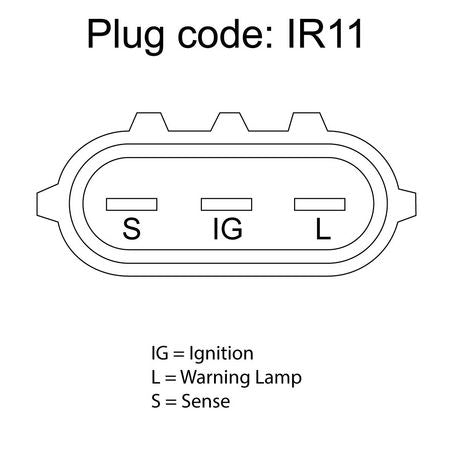

| Pin Code | IR11 |
| Pivot Hole Diameter | 10 |
| Power Rating [Amp] | 110 |
| Pulley Outside Diameter | 76mm |
| Pulley Section | AA |
| Regulator Type | Internal |
| Rotation | CW |
| Suits Unit Make | Denso |
| Voltage | 12 |
| Note | Option offered has active warning light circuit regulator, for Inactive warning light circuit, use adapter harness supplied. Refer instructions supplied with alternator. |
| Alternator Mount | Single Leg |
| Item Type | Alternator |
| Mount Cnt to Cnt | 165mm |
| New / Reman. | New |
| Insulated Return | No |
| Weight | 6.5kg |
| Features | Option offered has active warning light circuit regulator For Inactive warning light circuit, use adapter harness supplied. Refer instructions supplied with alternator. |
| TOYOTA COASTER HZB50 D 4.2L 1H-Z SOHC 12v Diesel 6cyl 94kW Bus RWD [01/93 - 10/02] |
| TOYOTA LAND CRUISER HDJ100 TD 4.2L 1HD-FTE SOHC 24v Turbo Diesel Direct Inj. 6cyl 150kW SUV AWD [01/98 - 08/07] |
| TOYOTA LAND CRUISER HDJ101K TDi 4.2L 1HD-FTE SOHC 24v Turbo Diesel Direct Inj. 6cyl 153kW SUV AWD [01/98 - 08/07] |
| TOYOTA LAND CRUISER HDJ78R TD 24V 4.2L 1HD-FT SOHC 24v Turbo Diesel Direct Inj. 6cyl 122kW SUV AWD [08/01 - 02/07] |
| TOYOTA LAND CRUISER HDJ79R TD 24V 4.2L 1HD-FT SOHC 24v Turbo Diesel Direct Inj. 6cyl 122kW Pickup AWD [08/01 - 01/07] |
| TOYOTA LAND CRUISER HDJ80 TD 4.2L 1HD-T SOHC 12v Turbo Diesel Direct Inj. 6cyl 118kW SUV AWD [08/92 - 12/97] |
| TOYOTA LAND CRUISER HDJ80,HDJ81V TD 24V 4.2L 1HD-FT SOHC 24v Turbo Diesel Direct Inj. 6cyl 125kW SUV AWD [01/95 - 12/97] |
| TOYOTA LAND CRUISER HDJ81 TD 4.2L 1HD-T SOHC 12v Turbo Diesel Direct Inj. 6cyl 123kW SUV AWD [01/90 - 12/97] |
| TOYOTA LAND CRUISER HZJ105 D 4.2L 1H-Z SOHC 12v Diesel 6cyl 96kW SUV AWD [03/98 - 08/07] |
| TOYOTA LAND CRUISER HZJ70RV,HZJ71V,HZJ75... D 4.2L 1H-Z SOHC 12v Diesel 6cyl 96kW SUV AWD [01/90 - 01/07] |
| TOYOTA LAND CRUISER HZJ71,HZJ73 4.2L 1HZ Diesel SUV AWD [08/99 - 08/04] |
| TOYOTA LAND CRUISER HZJ75RP,HZJ79R D 4.2L 1H-Z SOHC 12v Diesel 6cyl 96kW Pickup AWD [01/90 - 01/07] |
| TOYOTA LAND CRUISER HZJ77 D 4.2L 1H-Z SOHC 12v Diesel 6cyl 99kW SUV AWD [04/90 - 07/99] |
| TOYOTA LAND CRUISER HZJ80 D 4.2L 1H-Z SOHC 12v Diesel 6cyl 94kW SUV AWD [01/90 - 12/97] |
| TOYOTA LAND CRUISER HZJ80,HZJ81 D 4.2L 1H-Z SOHC 12v Diesel 6cyl 99kW SUV AWD [01/90 - 12/97] |
| TOYOTA LAND CRUISER PZJ70RV D 3.5L 1PZ SOHC 10v Diesel 5cyl 72kW SUV AWD [01/90 - 08/91] |
| TOYOTA LAND CRUISER PZJ73RV D 3.5L 1PZ SOHC 10v Diesel 5cyl 72kW Hardtop SUV AWD [01/90 - 07/92] |
| TOYOTA LAND CRUISER PZJ77 3.5L 1PZ Diesel SUV AWD [04/90 - 12/94] |
