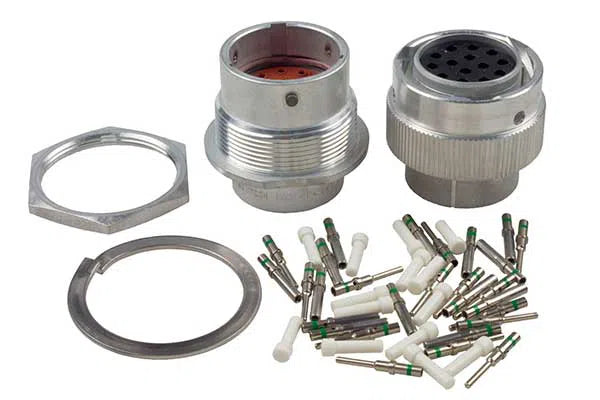

DEUTSCH HD30 18-14 KIT
18-14. Shell size 18. 14 x Size 16 Contacts Green Ring Normal Wire Seal. For use with Standard Insulation Wire (Recommended O.D of 2.54-3.40mm) Mounting hole diameter €“ 38mm Housing Aluminium Seal Silicone Rubber Shock 50G Vibration 20G rms 10 €“ 2000Hz Operating Temperature -55deg C to 125deg C Wire Size 14 AWG (1.0-2.0mm^2) Recommended Strip Length 6.4-8.0mm Current Rating 13A @ 125deg C
