JAYLEC HIGH PERFORMANCE BLACK SERIES ALTERNATOR
ALT 12V 215A CW BLACK SERIES SUIT GM LS & UNIVERSAL

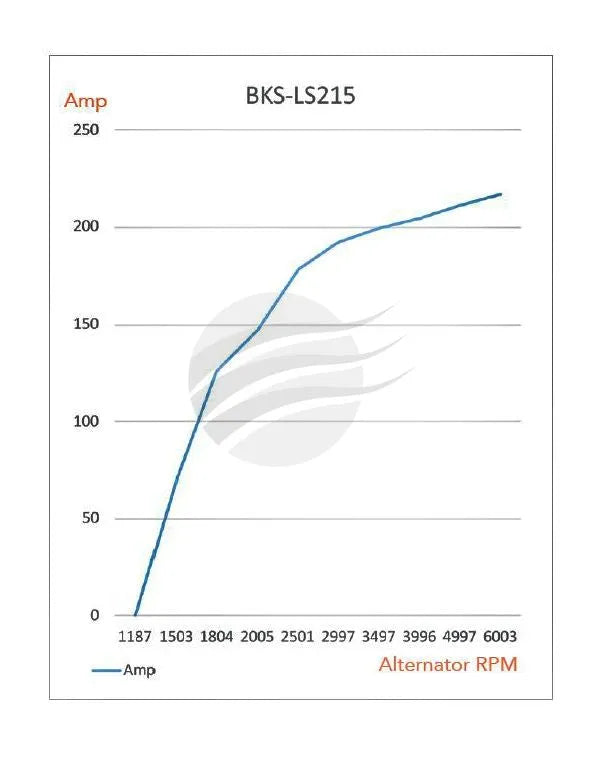

HAIR PIN STATOR HIGH CHARGE RATE AT LOW RPM.
WIRING MODIFICATION WILL NEED TO BE MADE ON STANDARD TYPE VEHICLES
| Voltage | 17MM |
| Amperage | 215A HOT (96C) 231A COLD (40C) |
| Mount Leg ID | 56MM |
| C-C Mounts | 139MM |
| Hole ID Top | 10MM |
| Hole ID Bottom | 10MM |
| Shaft Size | 17MM |
| Pulley Type | 6PV, FIXED |
| Pulley Belt Width | |
| Pulley Grooves | 6 |
| Pulley diameter | 61MM |
| Regulator Type | INTERNAL |
| Series | |

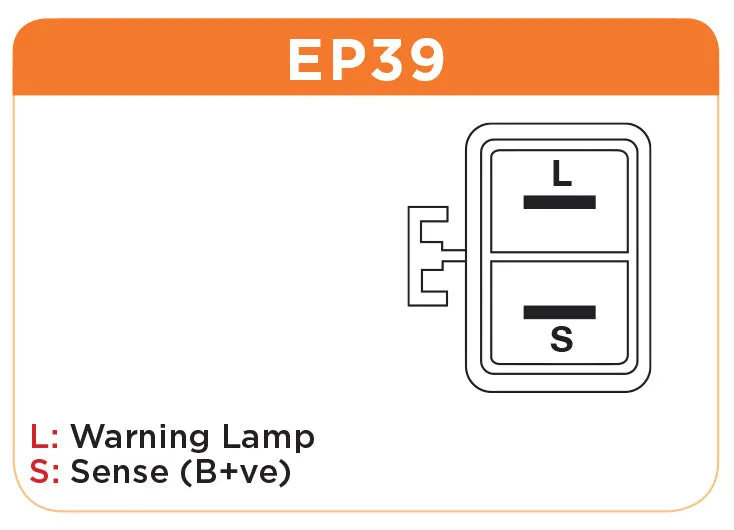

| Connections Plug # | EP39 |
| Terminals | B+. L, FR |
| Excitation | EXTERNAL |
| Ground | NEGATIVE |
| Weight (Kg) | 7.7KG |
