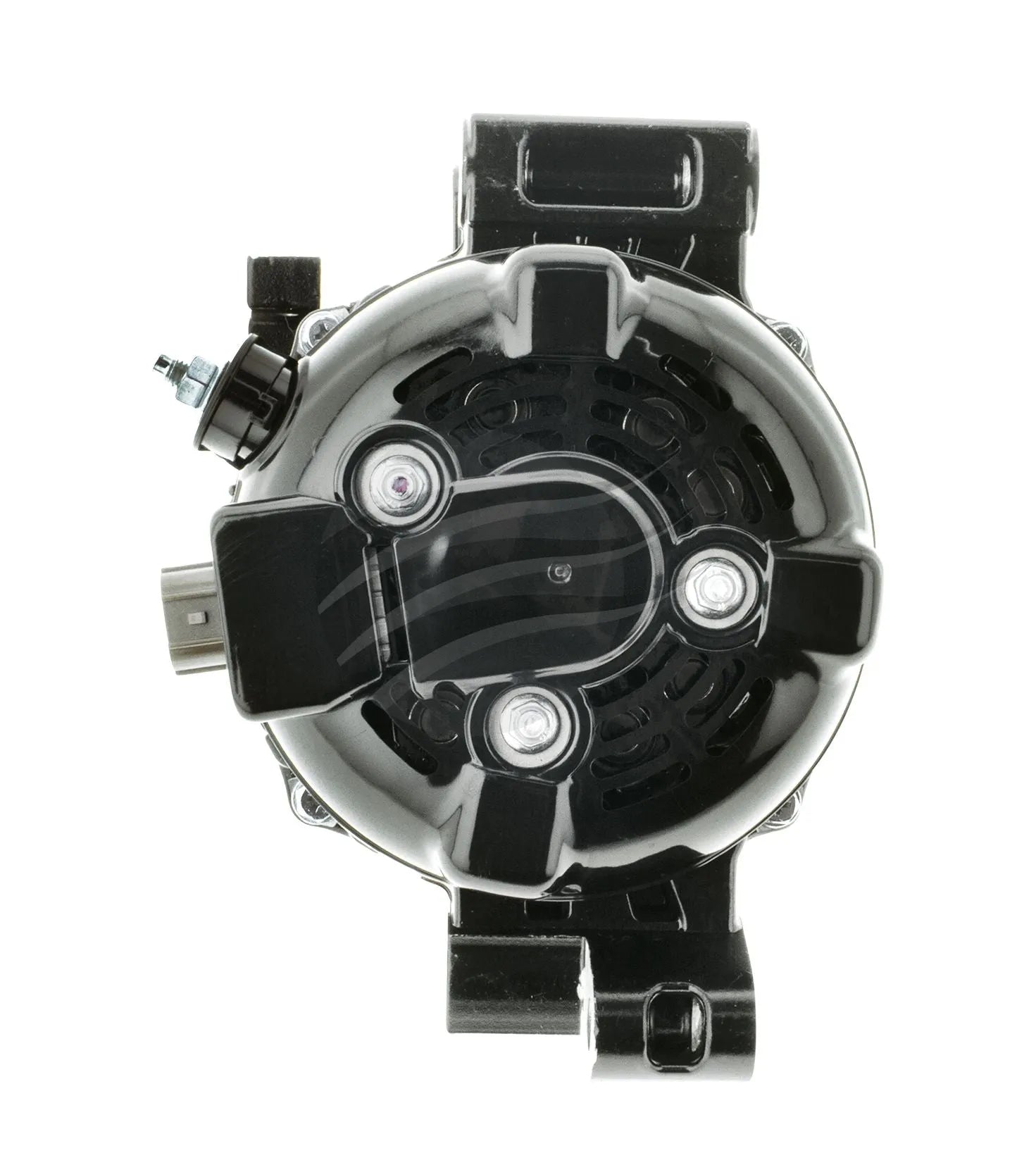

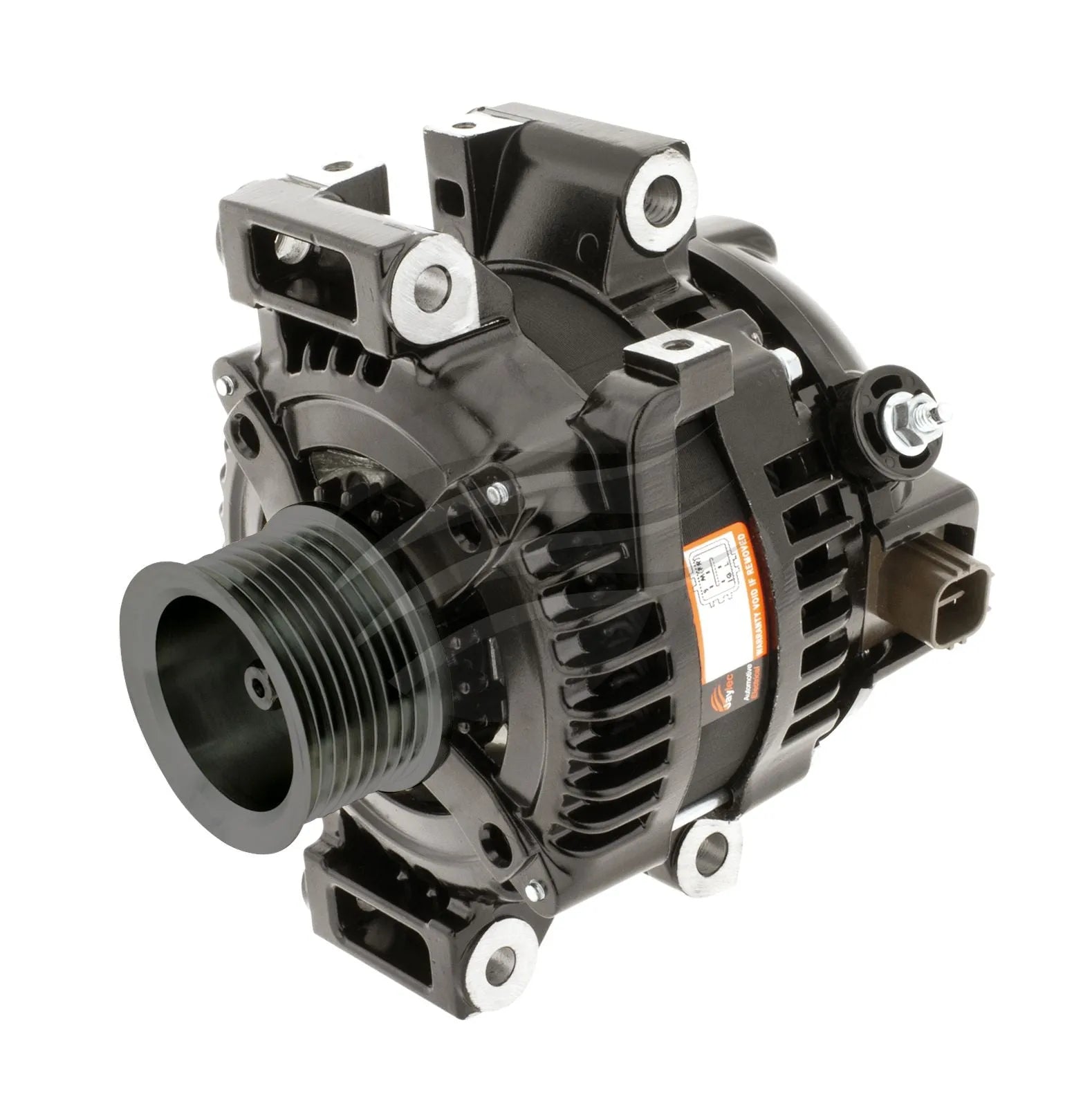

JAYLEC HIGH PERFORMANCE BLACK SERIES ALTERNATOR
ALT 12V 240A L/CRUISER V8 DSL TOTOTA 76,79 & 200 SERIES
| Voltage | 12V |
| Amperage | 240A |
| Mount Leg ID | 65MM |
| C-C Mounts | 160MM |
| Hole ID Top | 10MM |
| Hole ID Bottom | 10MM |
| Shaft Size | 17MM |
| Pulley Type | 9PV, FIXED |
| Pulley Belt Width | 53MM |
| Pulley Grooves | 9 |
| Pulley diameter | 58MM |
| Regulator Type | INTERNAL |
| Series | |

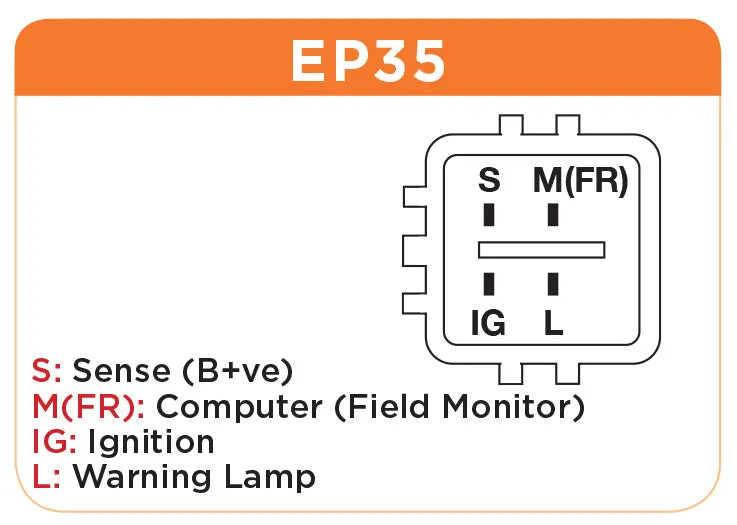

| Connections Plug # | EP35 |
| Terminals | B+, S, IG, M(FR), L |
| Excitation | EXTERNAL |
| Ground | NEGATIVE |
| Weight (Kg) | 10.0KG |
