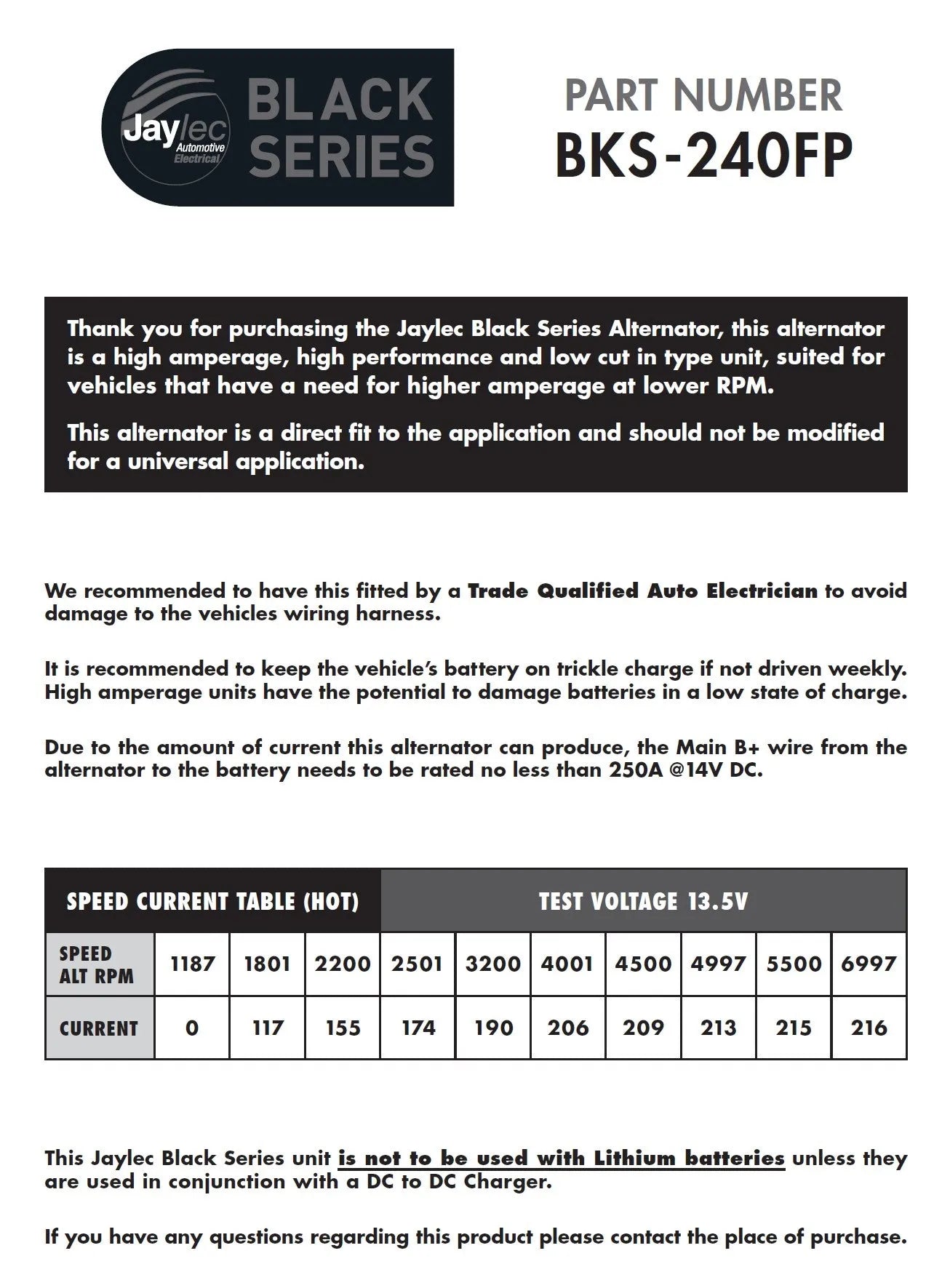

JAYLEC HIGH PERFORMANCE BLACK SERIES ALTERNATOR
ALT 12V 240A CW SUITS FORD PAD MOUNT
WIRING MUST BE UPDATED
| Inside Foot to Foot | 2 26MM |
| Pivot Hole Diameter | |
| Pivot Lug Length | |
| Voltage | 12V |
| Amperage | 240A COLD 218 AMP HOT |
| Mount Leg ID | |
| C-C Mounts | |
| Hole ID Top | |
| Hole ID Bottom | |
| Shaft Size | 17MM |
| Pulley Type | FIXED |
| Pulley Belt Width | |
| Pulley Grooves | 6PV |
| Pulley diameter | |
| Regulator Type | INTERNAL |
| Series | |
| Connections Plug # | EP39 |
| Terminals | B+, S, L. |
| Excitation | EXTERNAL |
| Ground | NEGATIVE |
