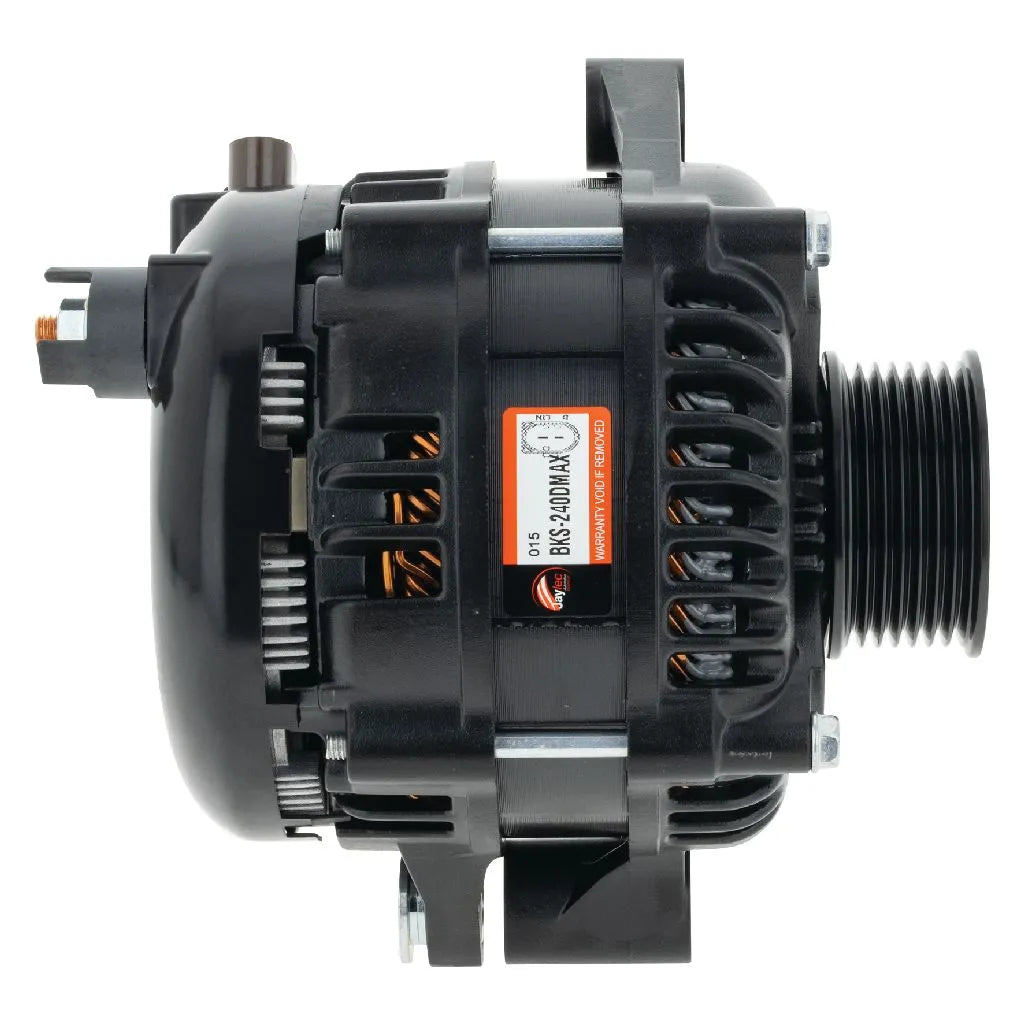

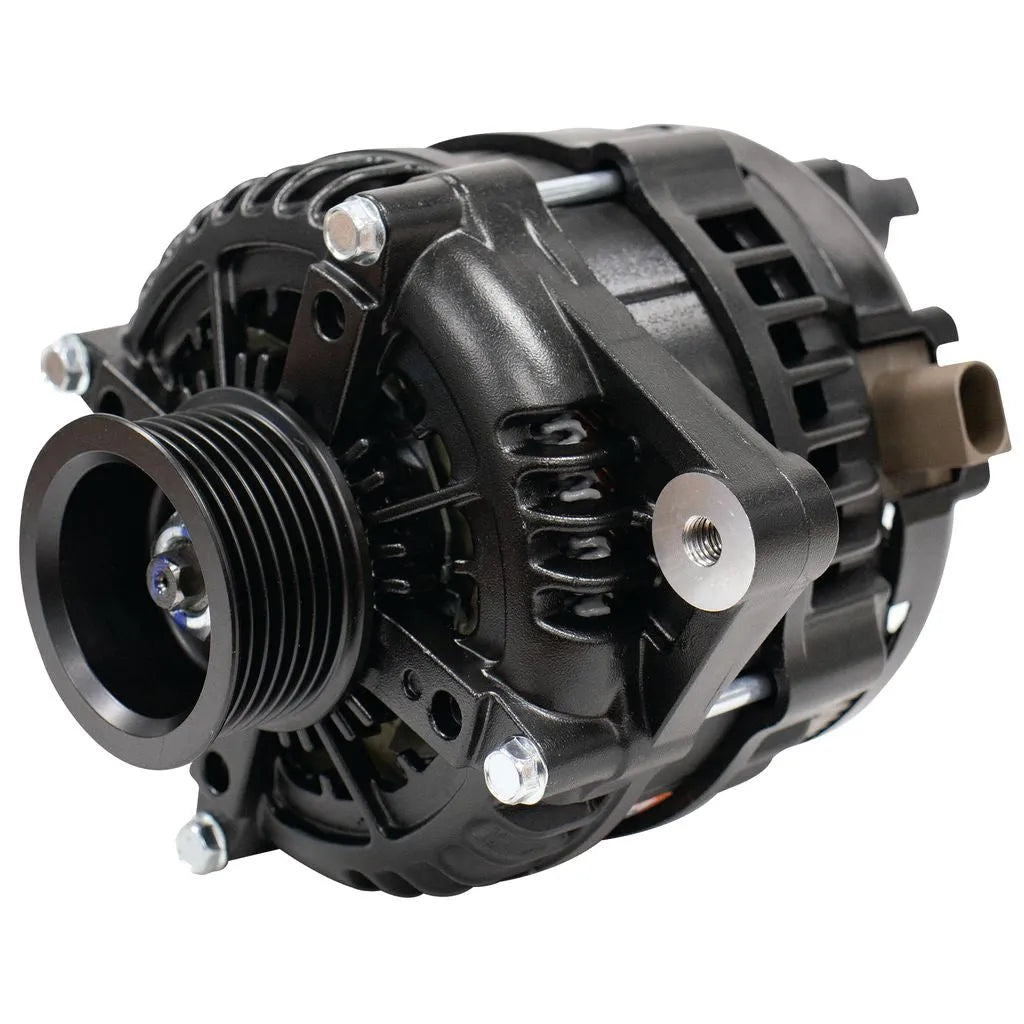

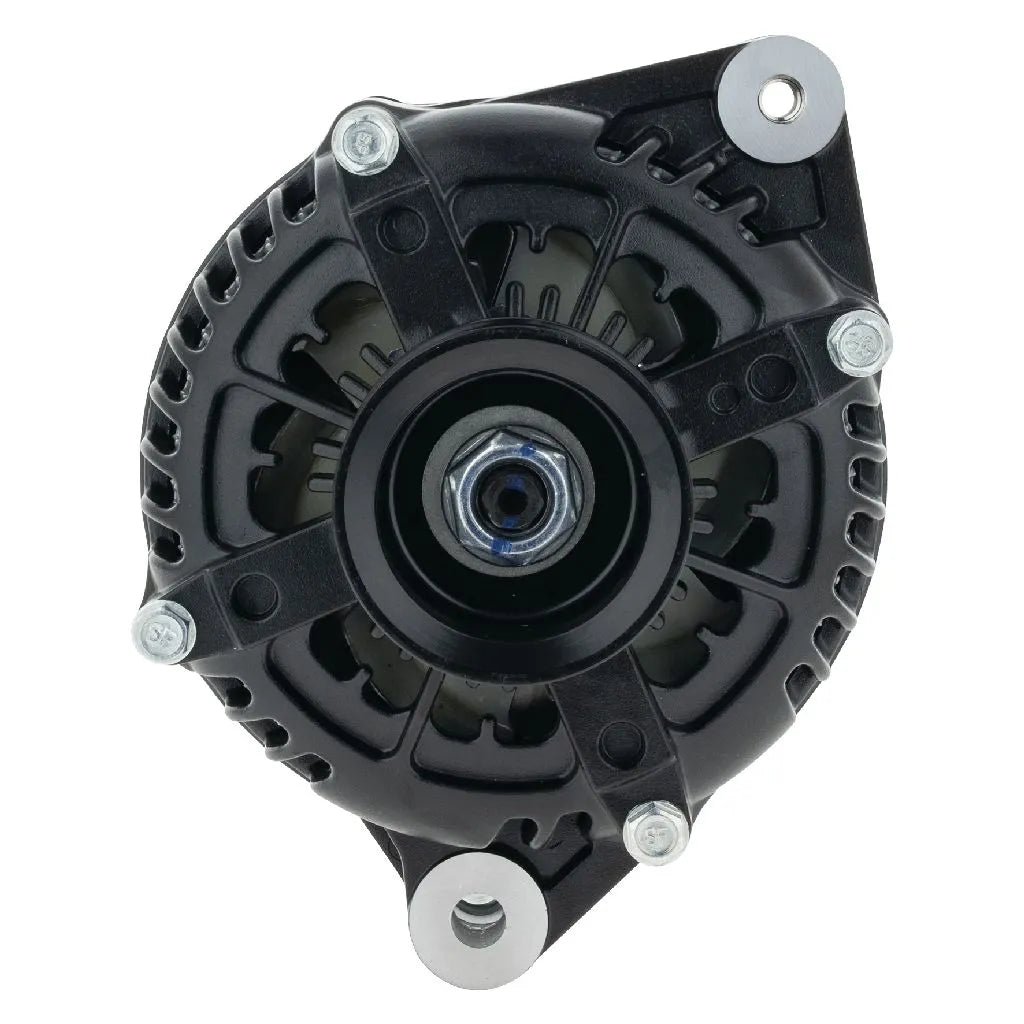

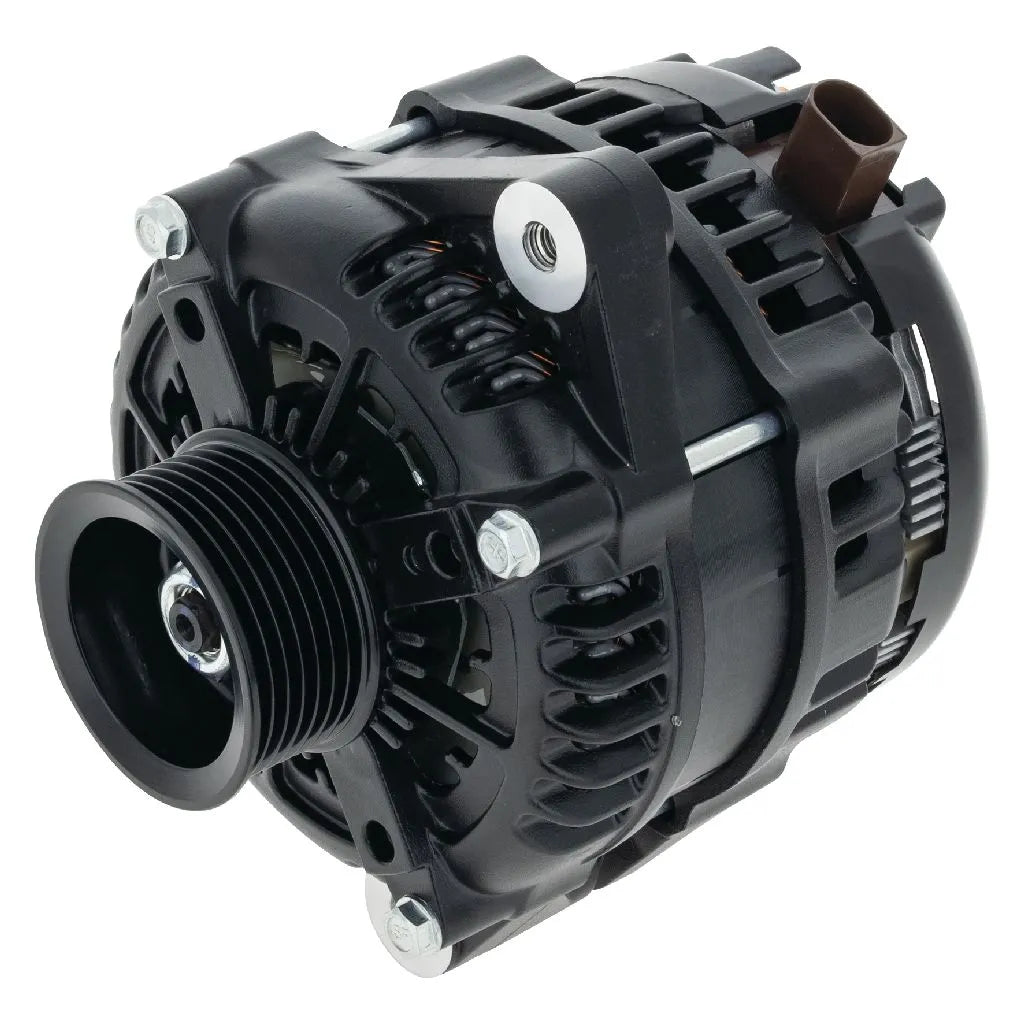

JAYLEC HIGH PERFORMANCE BLACK SERIES ALTERNATOR
ALT 12V 240A, ISUZU D-MAX, MU-X, W/- 4JJ1, 4JJ3-TCX DSL
WIRING MUST BE UPGRADED BEFORE FITMENT
| Voltage | 12V |
| Amperage | COLD 240A, HOT 217A |
| Mount Leg ID | 55MM |
| C-C Mounts | 161MM |
| Hole ID Top | M8 |
| Hole ID Bottom | 10MM |
| Shaft Size | 17MM |
| Pulley Type | 7PV FIXED |
| Pulley Belt Width | |
| Pulley Grooves | 7 |
| Pulley diameter | 62MM |
| Regulator Type | INTERNAL |
| Series | |
| Connections Plug # | |
| Terminals | B+ |
| Excitation | EXTERNAL |
| Ground | NEGATIVE |
