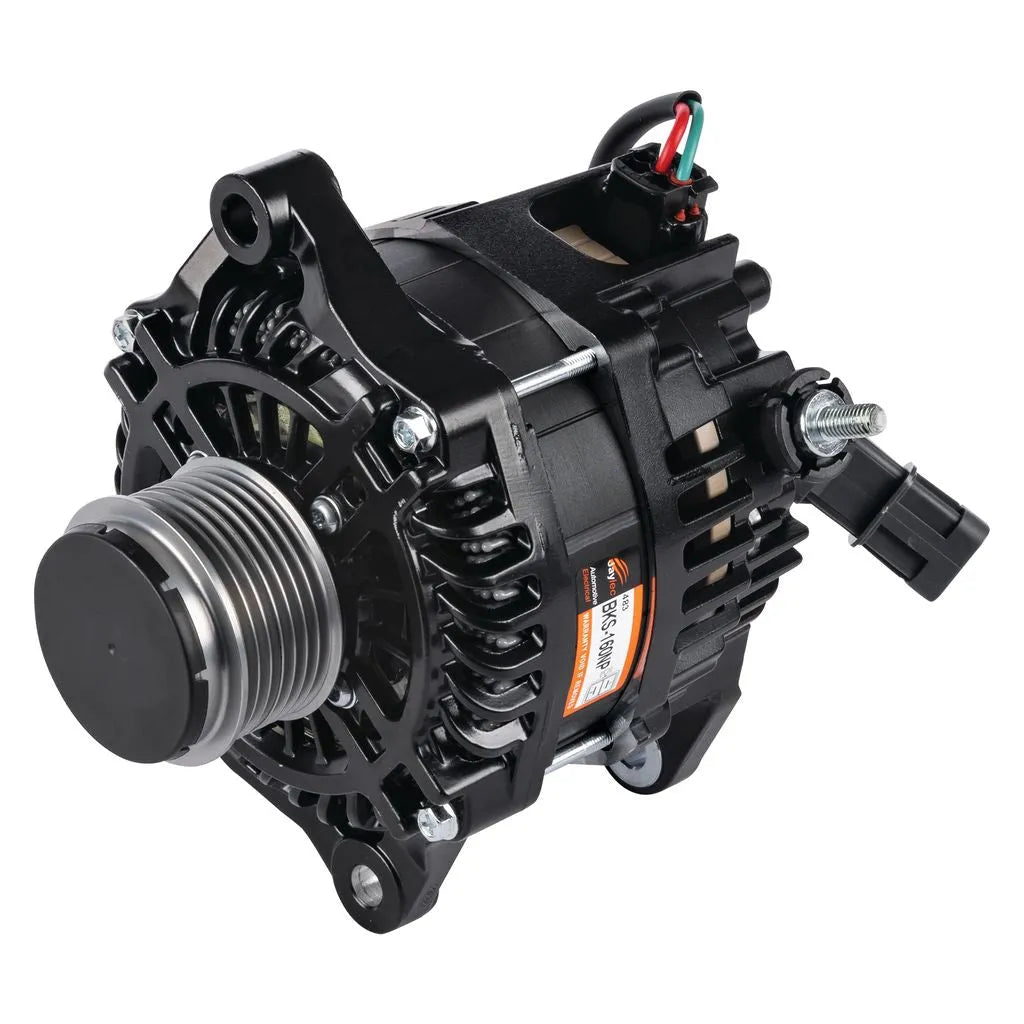

JAYLEC HIGH PERFORMANCE BLACK SERIES ALTERNATOR
ALT 12V 160A, NISSAN GU PATROL NAVARA 00-06 W/- ZD30, OE-
A WIRING UPGRADE IS REQUIRED FOR THIS ALTERNATOR
SHOULD BE FITTED BY A QUALIFIED AUTOMOTIVE TRADE PERSON
| Voltage | 12V |
| Amperage | 189 AMP (COLD) 157 AMP (HOT) |
| Mount Leg ID | |
| C-C Mounts | 169MM |
| Hole ID Top | M8 X 1.25MM |
| Hole ID Bottom | 10.5MM |
| Shaft Size | 17MM |
| Pulley Type | CLUTCH |
| Pulley Belt Width | |
| Pulley Grooves | 7PV |
| Pulley diameter | 64MM |
| Regulator Type | |
| Series | |
| Connections Plug # | |
| Terminals | B+ S, L. |
| Excitation | |
| Ground | |
| Weight (Kg) | 7.2KG |
