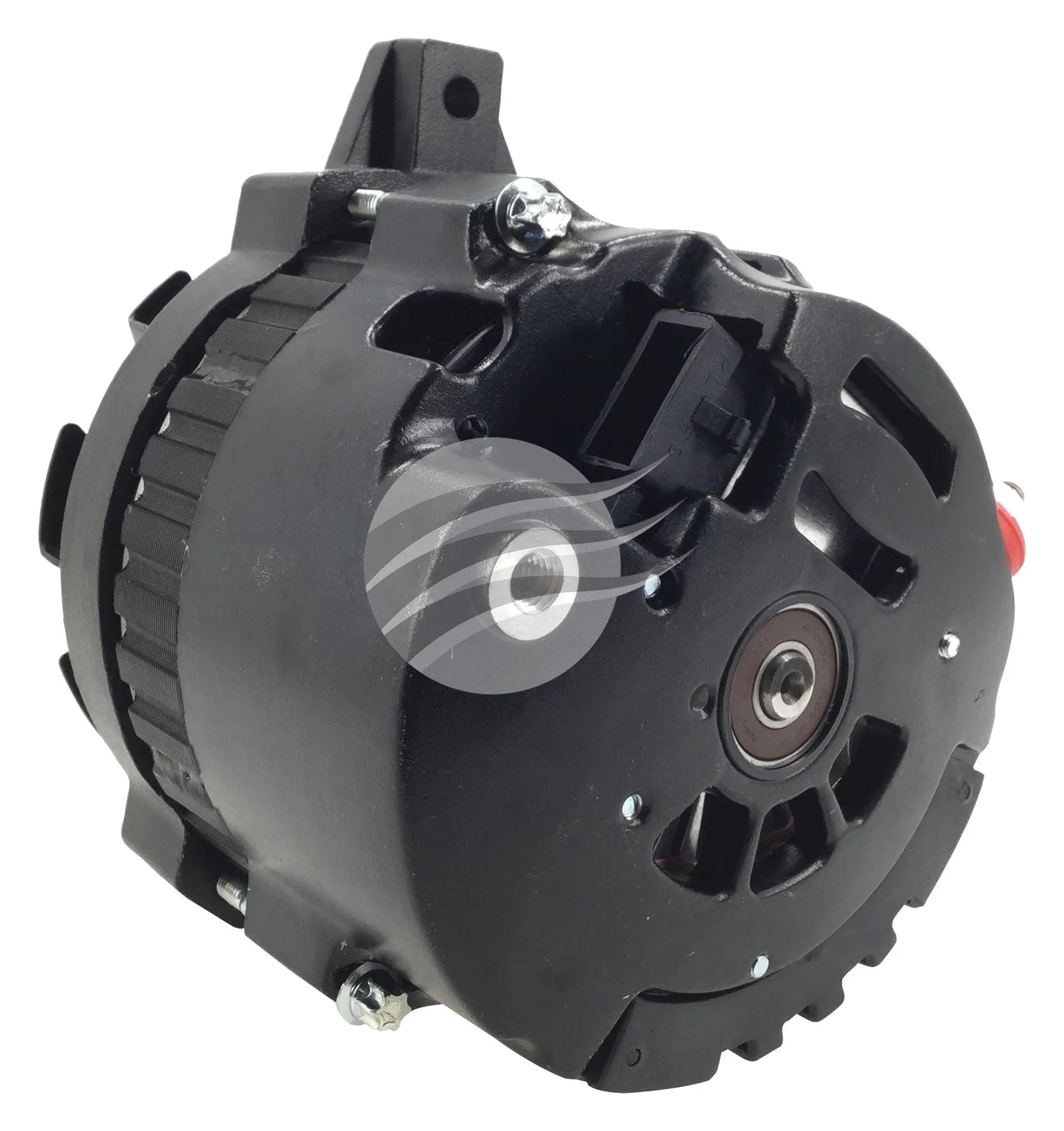

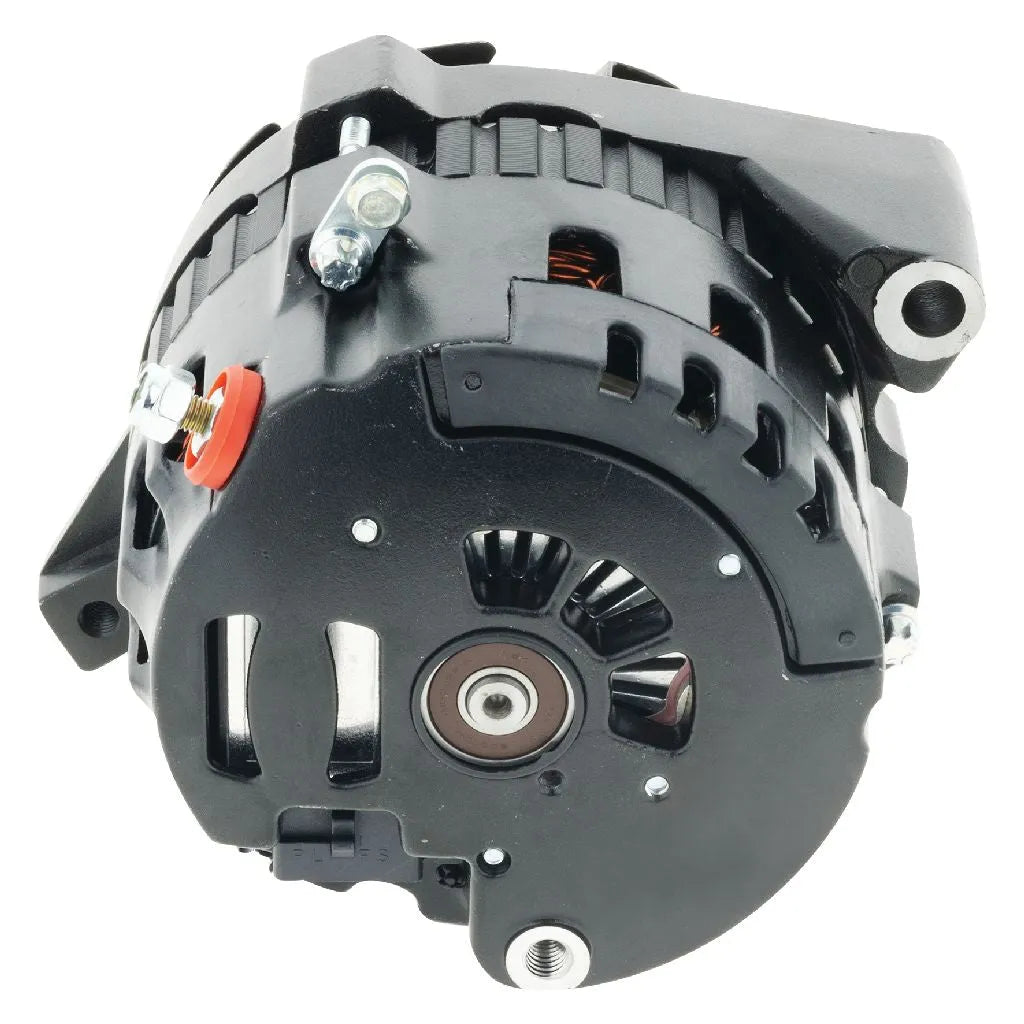

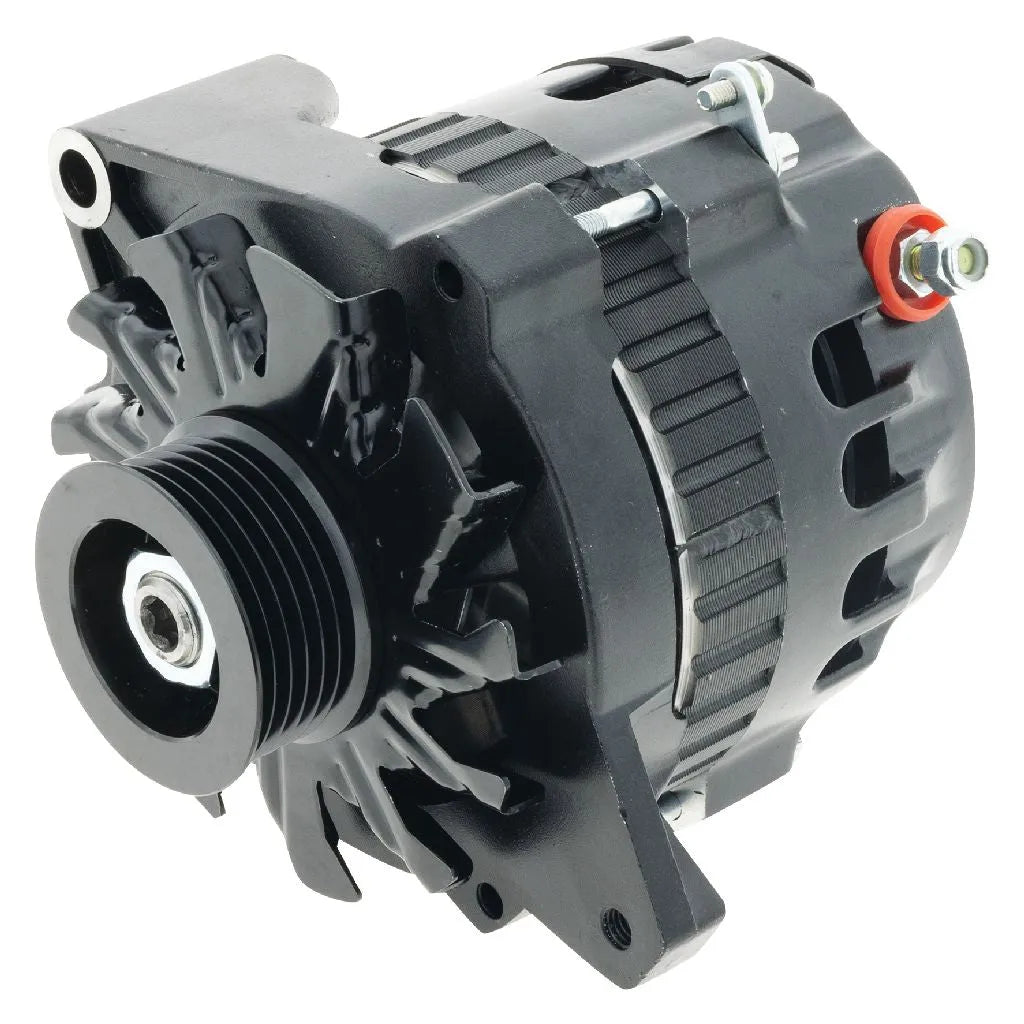

JAYLEC HIGH PERFORMANCE BLACK SERIES ALTERNATOR
ALT 12V 138A SELF EXCITING SUIT GM | BKS-140GM
SELF EXCITING
NSK BEARINGS
Notes:
Will need spacer for V8 Chev + Holden applications
| Voltage | 12V |
| Amperage | 132A (HOT) 148A (COLD) |
| Mount Leg ID | 51MM |
| C-C Mounts | 157MM |
| Hole ID Top | M8 |
| Hole ID Bottom | 10MM |
| Shaft Size | 17MM |
| Pulley Type | 6PV |
| Pulley Belt Width | |
| Pulley Grooves | 6 |
| Pulley diameter | 56MM |
| Regulator Type | INTERNAL |
| Series | C1S30 |

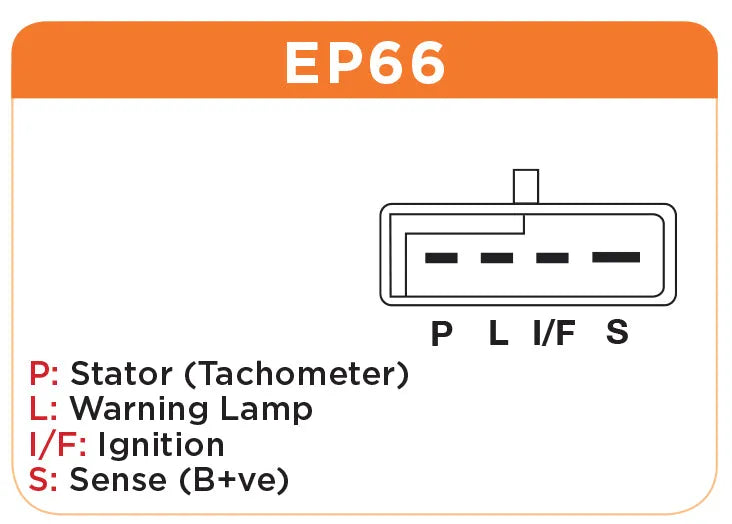

| Connections Plug # | EP66 (OPTIONAL) |
| Terminals | B+ P ,L ,I/F ,S |
| Excitation | INTERNAL |
| Ground | NEGATIVE |
