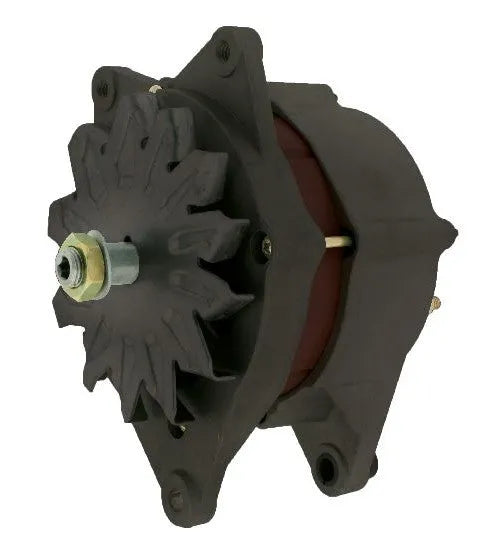

JAYLEC HIGH PERFORMANCE BLACK SERIES ALTERNATOR
ALT 12V 110A, CHRYSLER 6CYL, V8 APPLICATIONS
4 PHASE ALTERNATOR AND STATOR
ALTERNATOR HAS AN INTERNAL REGULATOR, ON US VEHICLES, A WIRING MODIFICATION WILL NEED TO BE MADE.
PULLEY OPTIONS V TWIN 53-918, V SINGLE 53-933, 53-900
NSK BEARINGS
ANTI-VIBRATION PROTECTION
| Inside Foot to Foot | 68MM |
| Pivot Hole Diameter | |
| Pivot Lug Length | |
| Voltage | 12V |

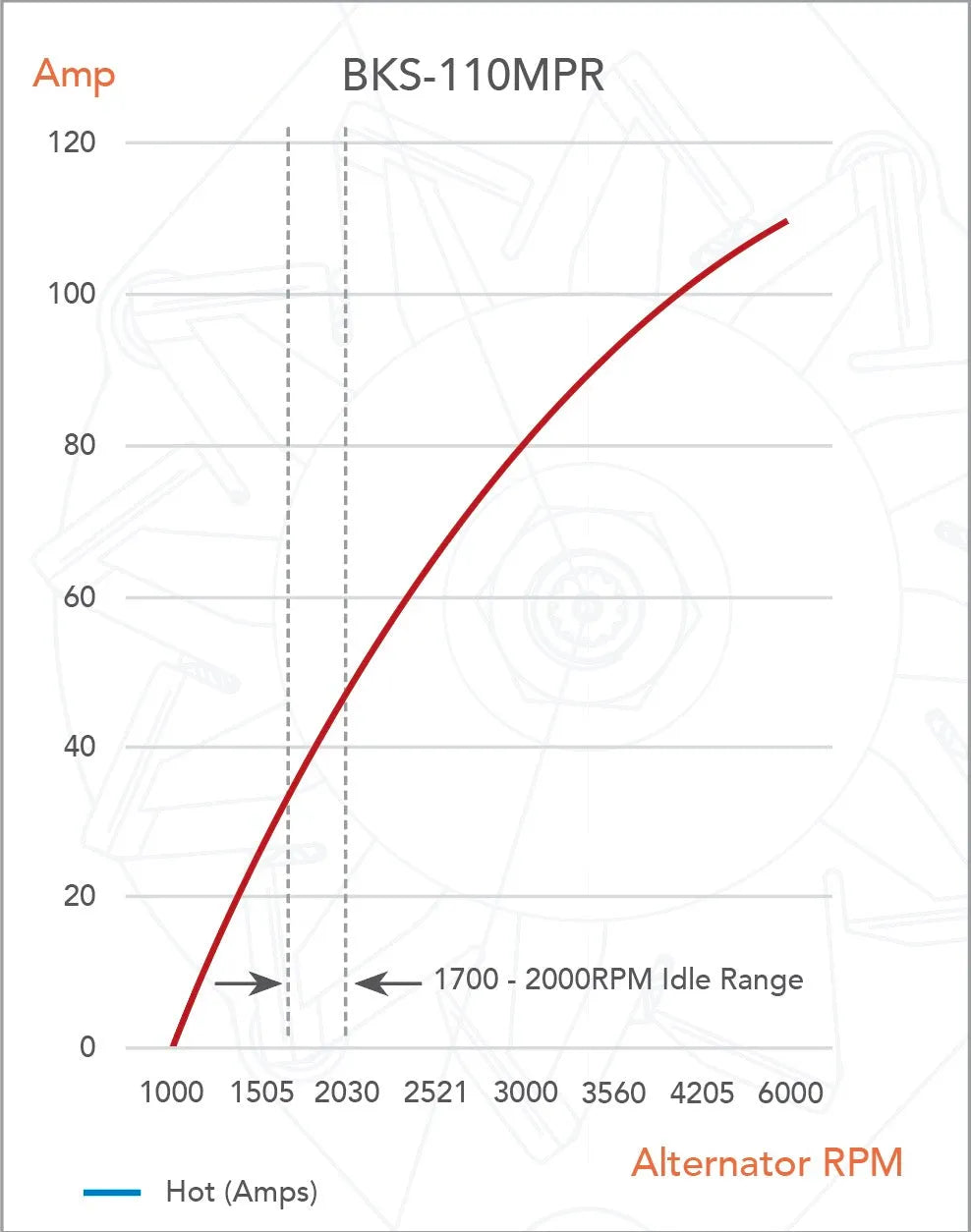

| Amperage | 110A HOT (96C) 126A COLD (40C) |
| Mount Leg ID | |
| C-C Mounts | 180MM |
| Hole ID Top | 3/8" UNC |
| Hole ID Bottom | 10MM |
| Shaft Size | 17MM |
| Pulley Type | |
| Pulley Belt Width | |
| Pulley Grooves | N/A |
| Pulley diameter | N/A |
| Regulator Type | INTERNIAL |
| Series | K1 TYPE |
| Connections Plug # | EP73 |
| Terminals | B+, D+, W. |
