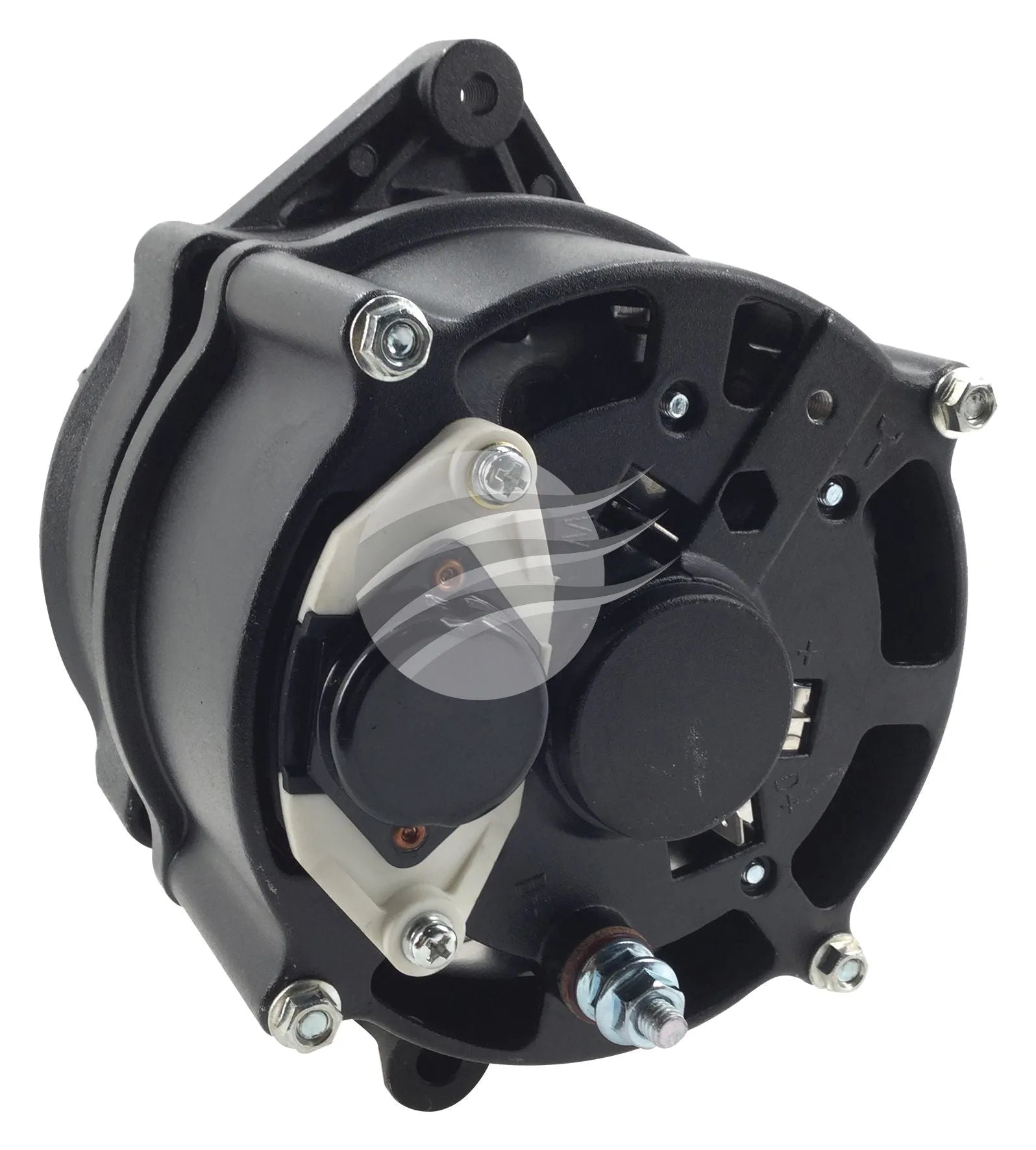

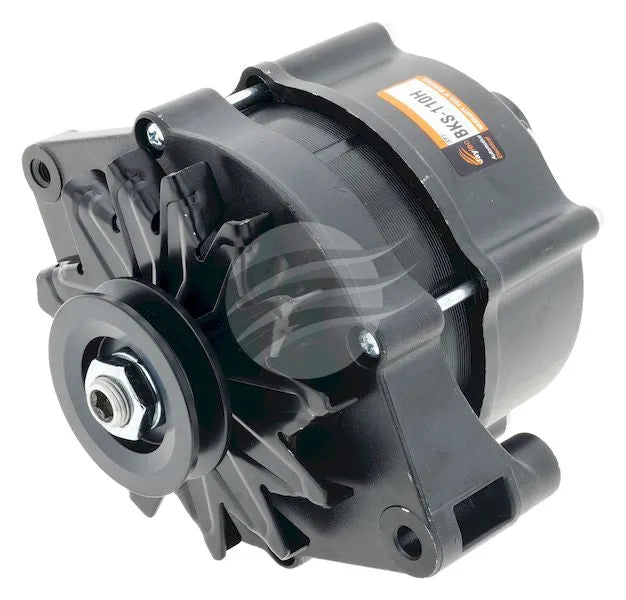

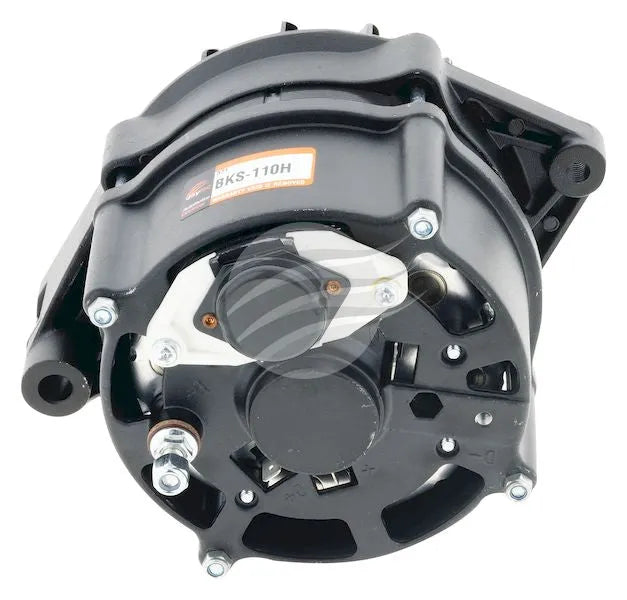

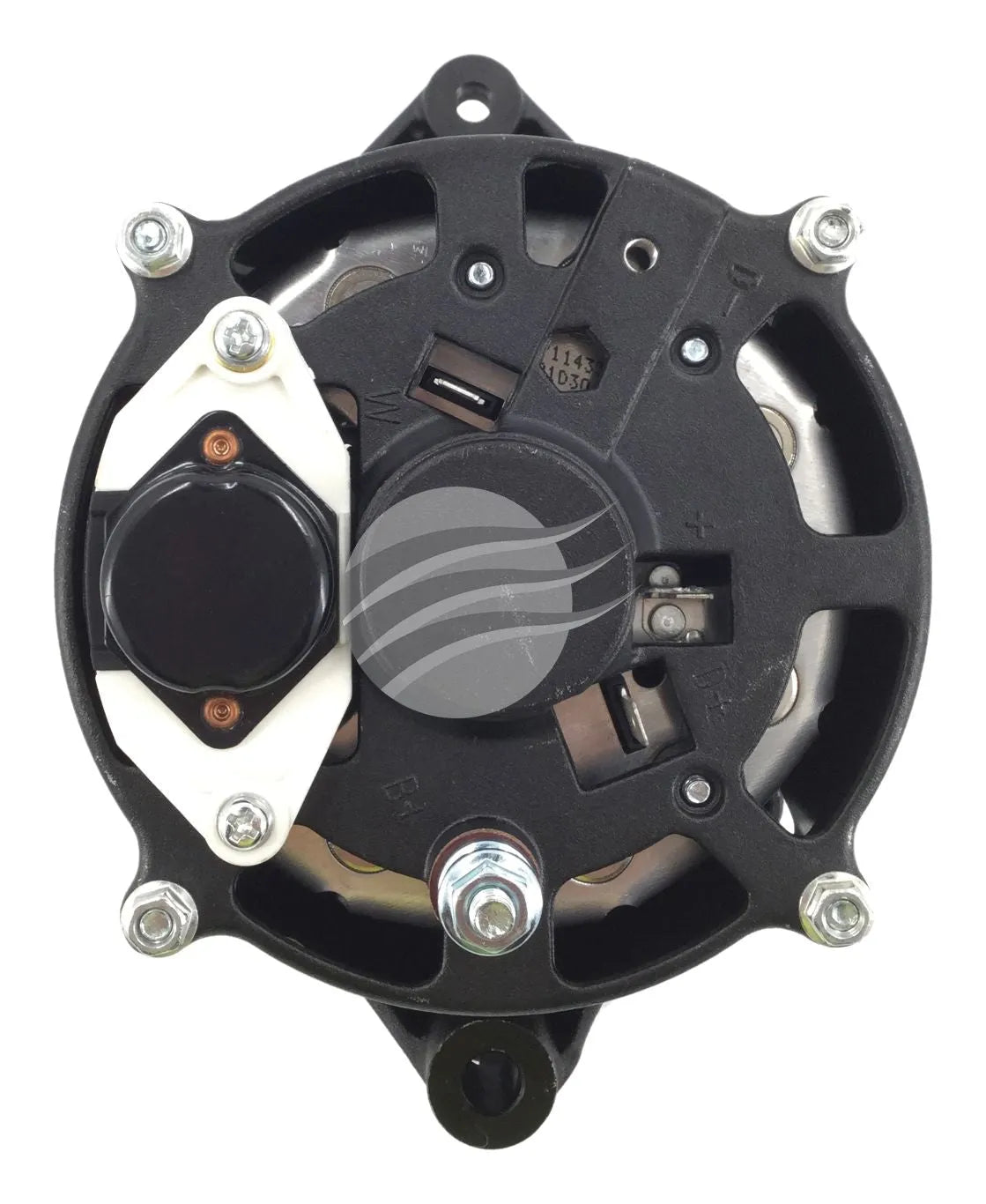

JAYLEC HIGH PERFORMANCE BLACK SERIES ALTERNATOR
ALT 12V 110A, GMH EH-WB, SUITS VB- VK 6 & 8CYL NATURAL
4 PHASE ALTERNATOR AND STATOR
NSK BEARINGS
ANTI VIBTAION PROTECTION
| Voltage | 12V |
| Amperage | 110A HOT (96C) 126A COLD (40C) |
| Mount Leg ID | 56MM |
| C-C Mounts | 170MM |
| Hole ID Top | M8 |
| Hole ID Bottom | 10MM |
| Shaft Size | 17MM |
| Pulley Type | SINGLE "A" |
| Pulley Belt Width | |
| Pulley Grooves | 1 |
| Pulley diameter | 64MM |
| Regulator Type | INTERNAL |
| Series | K1 |
| Connections Plug # | |
| Terminals | B+, D+ |
| Excitation | EXTERNAL |
| Ground | NEGATIVE |
| Weight (Kg) | 6.5KG |
