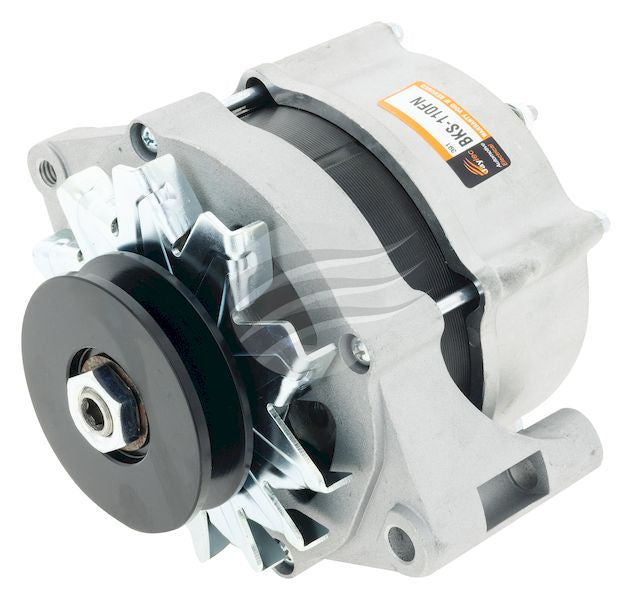

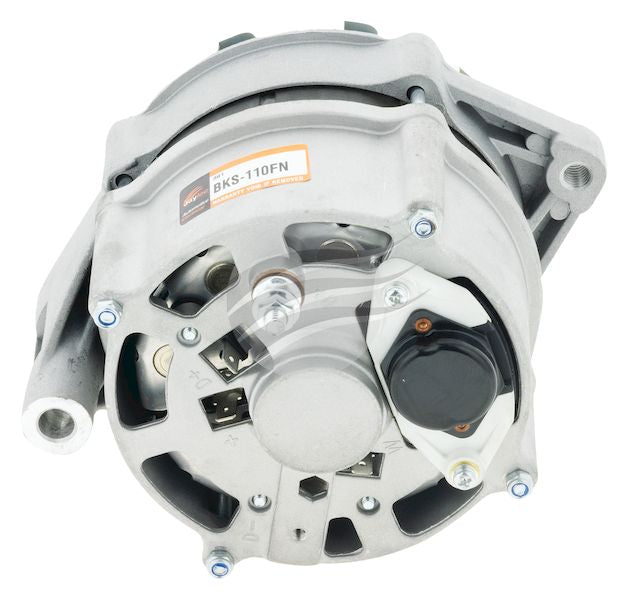

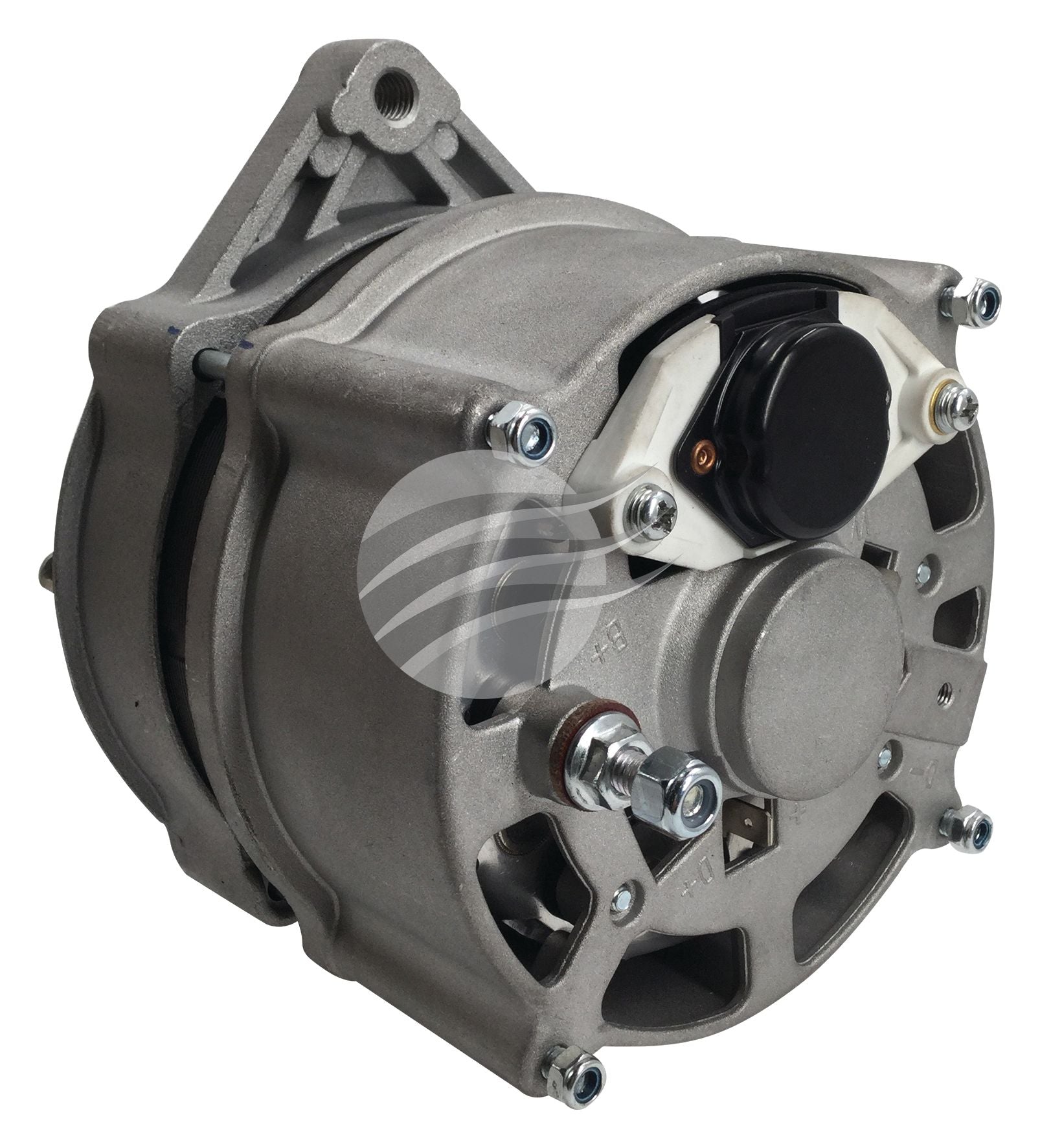

JAYLEC HIGH PERFORMANCE BLACK SERIES ALTERNATOR
ALT 12V 110A CW NATURAL COLOUR SUIT XP-XD 6 CYL & V8 ENG
| Voltage | 12V |
| Amperage | 110A HOT (96C) 126A COLD (40C) |
| Mount Leg ID | 76MM |
| C-C Mounts | 168MM |
| Hole ID Top | 3/8 UNC |
| Hole ID Bottom | 11MM |
| Shaft Size | 17MM |
| Pulley Type | SINGLE "A" |
| Pulley Belt Width | |
| Pulley Grooves | 1 |
| Pulley diameter | 82MM |
| Regulator Type | INTERNAL |
| Series | K1 |
| Connections Plug # | |
| Terminals | B+, D+, W |
| Excitation | EXTERNAL |
| Ground | NEGATIVE |
