FUEL CELL HANGER WITH FILLER SUITS 1-3 39-40MM PUMPS
Raceworks Hangers are an addition to our fuel cell range, allowing the use of modern high-flow intank fuel pumps. They suit a range of pump diameters from 37-40mm, and are height adjustable. They can be used with custom fuel tanks also, through the use of a steel or aluminium weld ring.
Drop in hanger with filler for Raceworks Fuel Cells. Adjustable in height
Can be configured with either a single, twin OR TRIPLE pumps(!)
Dual Stainless Electrical Terminals with PTFE Seals, allowing the pumps to be staged
AN-8 ORB
Anodised in Black, providing corrosion resistance when used with E85
Viton O-rings supplied with PTFE Intank Hose and stainless clamps

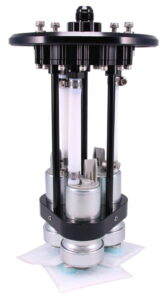

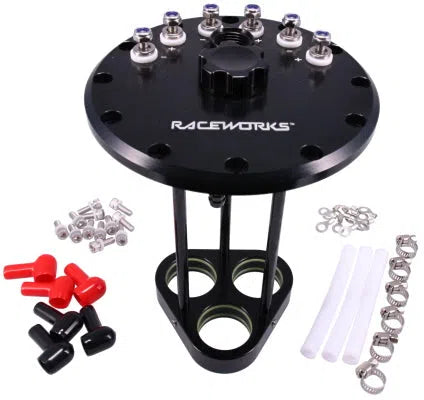

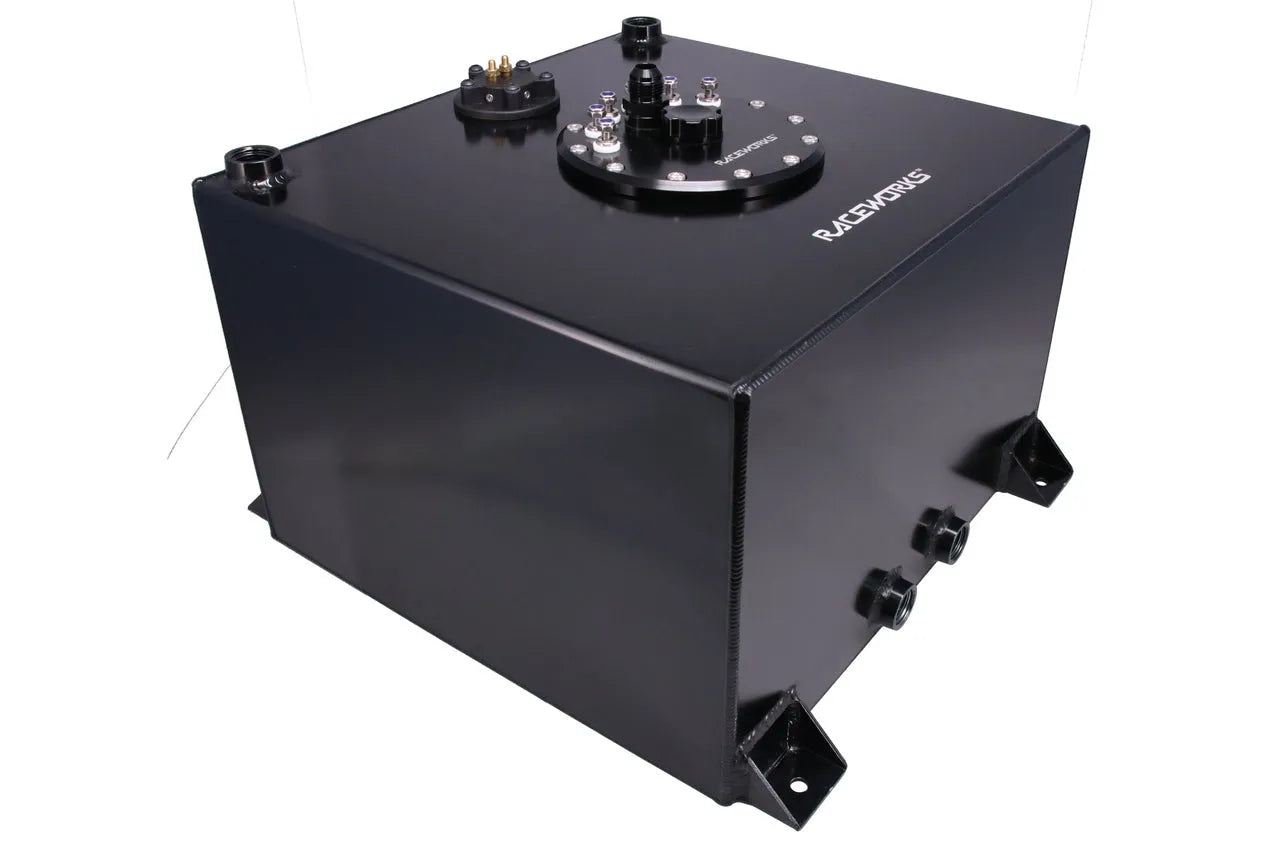

The Raceworks Hanger is designed for fitting into the ALY-27xBK range of Fuel Cells, or may be used in a custom fuel tank through the use of a steel or aluminium weld ring. It holds 1-3 pumps of diameter 39-40mm.
Adjustable in height.
Single AN-10 ORB Outlet
Triple AN-6 ORB pump inlets.
Includes 10mm barb inlet fittings, and PTFE hose.

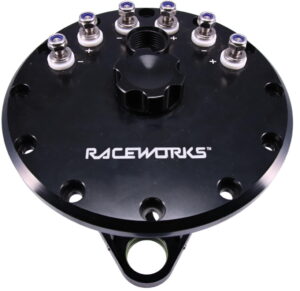

6 x Stainless Electrical Terminals with PTFE seals, allowing the pumps to be triple staged.
Anodised in Black, providing corrosion resistance when used with E85
When used with a weld ring, suits a tank height of 195mm to 265mm.
Tank and pumps sold separately
