Raceworks Hard Line Hose Ends
Raceworks 600 Series Hose Ends are all manufactured from 6061 T6 grade billet aluminium. All Raceworks hose ends are hard coat anodised for maximum protection and full flow to provide uninhibited fluid movement. The Raceworks 600 Series Hose Ends come in female swivel or male flare ends to ensure ease of fitment. All Raceworks products come with a 2 year warranty.
Hose End Fitting; Replacement

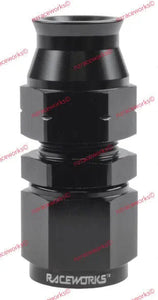

Fitting Instructions Replacement OlivesHard Line To Female AN
| AN | TUBE | Part Number |
|---|---|---|
| -6 | 5/16" | RWF-619-06-05BK |
| -6 | 3/8" | RWF-619-06-06BK |
| -8 | 1/2" | RWF-619-08-08BK |
| -10 | 5/8" | RWF-619-10-10BK |
Â
Â
Hard Line To Female AN 90 Degree
| AN | TUBE | Part Number |
|---|---|---|
| -6 | 3/8" | RWF-139-06-06BK |
| -8 | 1/2" | RWF-139-08-08BK |
| -10 | 5/8" | RWF-139-10-10BK |

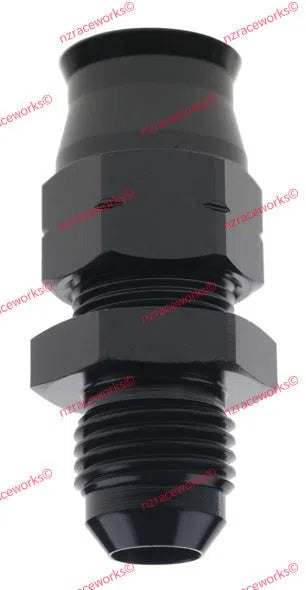

Hard Line To Male AN
| AN | TUBE | Part Number |
|---|---|---|
| -6 | 5/16" | RWF-618-06-05BK |
| -6 | 3/8" | RWF-618-06-06BK |
| -8 | 1/2" | RWF-618-08-08BK |
| -10 | 5/8" | RWF-618-10-10BK |

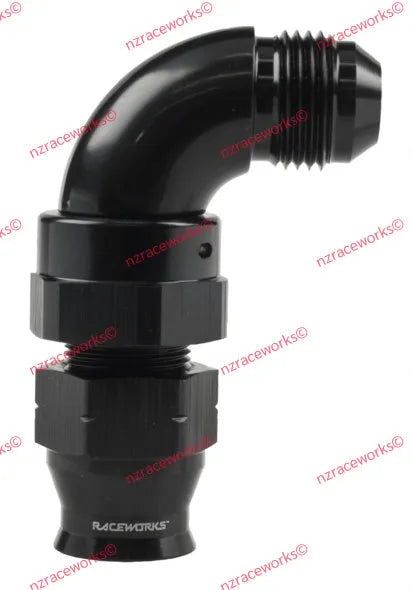

Hard Line To Male AN 90 Degree
| AN | TUBE | Part Number |
|---|---|---|
| -6 | 3/8" | RWF-137-06-06BK |
| -8 | 1/2" | RWF-137-08-08BK |
| -10 | 5/8" | RWF-137-10-10BK |

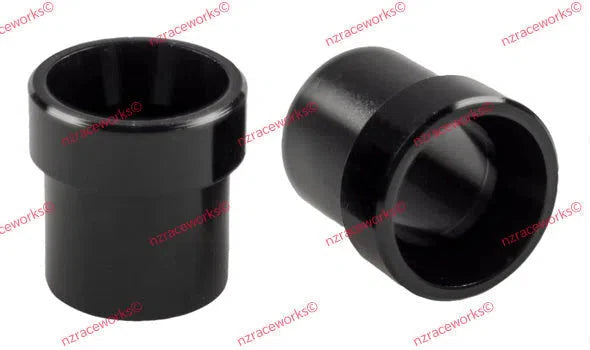

Aluminium Tube Sleeves
Aluminium Tube Sleeves are sold as a Pack of 2
| Suits Hard Line | Suits Tube Nut | Part Number |
|---|---|---|
| 5/16" | -6 | RWF-819-05BK |
| 3/8" | -6 | RWF-819-06BK |
| 1/2" | -8 | RWF-819-08BK |
| 5/8" | -10 | RWF-819-10BK |

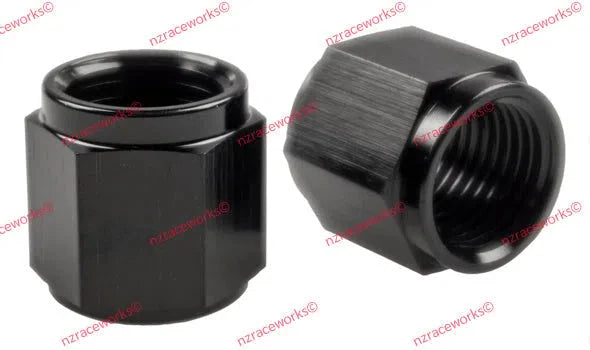

Aluminium Tube Nuts
Aluminium Tube Nuts are sold as a Pack of 2
| Size | Part Number |
|---|---|
| -6 | RWF-818-06BK |
| -8 | RWF-818-08BK |
| -10 | RWF-818-10BK |
