Prewired for Stop, Tail, Indicator, These lights are perfect for the Trailer, caravan or ute.
Sold individually.
For a number plate light, we recommend the 41BLMB
Fitting Instructions
Surface mount onto a flat surface horizontally with stainless steel bolts provided in assembly and run cable through a 12mm hole. Please refer to ADR 13/00.
The 207BAR9 is part of a more extensive trailer lighting system utilising plug and play connectors. Technically, these are Left side lights, to use as right side lights, Use either a BCC1 Y-splitter and 5C41B Trailer Plug > Or simply cut the connector off and hard wire conventionally.
| Part No. | 207BAR9 |
| Type | LAMP |
| Brand | LED AUTOLAMPS |
| Unit of Measure | EACH |
| Description |

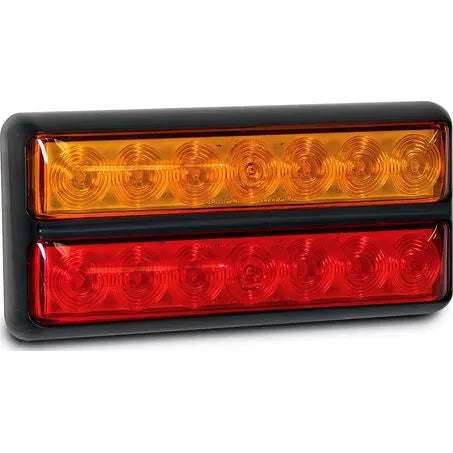

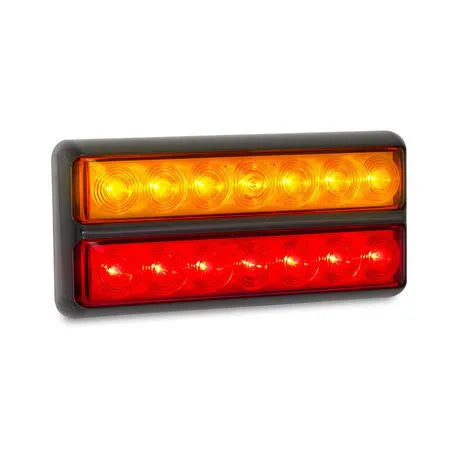

LED Autolamps - 12V Stop/Tail/Indicator Boat Trailer Lamp, Left Side with 9m Cable |
| Warranty | Five Years |
| Length | 5 |
| Width | 20.7 |
| Height | 10 |
| Operating Voltage | 12 |
| Housing Colour | black |
| Manufacturer Approval | ADR - CTA037371 |
| Manufactured in | China (Taiwan) |
| Packaging | Polybag |
| Weight | 0.532kg |

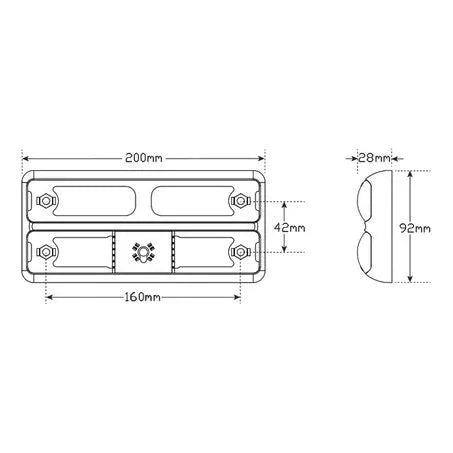

| Features | • Fully Submersible • Plug in Cable Kit Compatible • ADR Road Approved • IP67 Rated • 12 Volt Only • 5 Year Warranty • 200mm x 92mm x 28mm |
