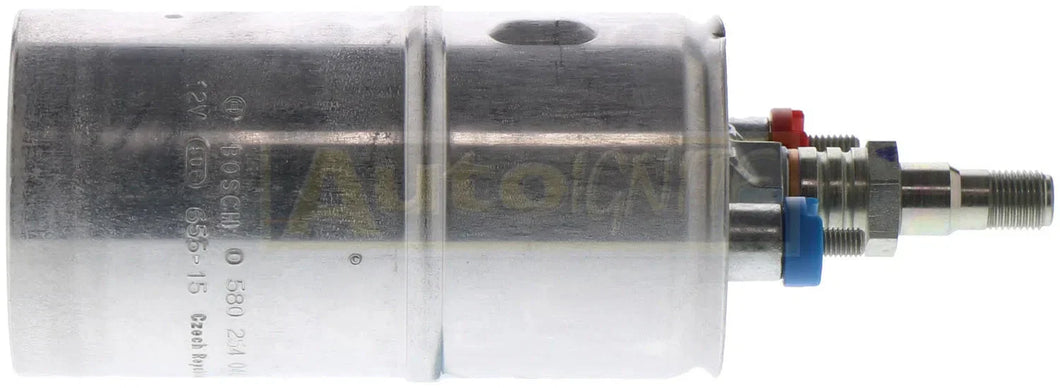

FUEL PUMP: BOSCH 0 580 254 040
Description
- 127l/h @ 6.5bar
- Open base inlet for in-tank installation
- M10x1.0 outlet fitting
- M5 and M6 -/+ screw terminals
- Draws ~11.0A @ 6.5bar
- Incl. Pressure relief valve check valve
- 60mm diameter body
- Open base inlet for in-tank installation
- M10x1.0 outlet fitting
- M5 and M6 -/+ screw terminals
- Draws ~11.0A @ 6.5bar
- Incl. Pressure relief valve check valve
- 60mm diameter body
-
Bosch part number: 0 580 254 040.
- Minimum current: 12 Volts.
- Operating pressure: up to 7 Bar.
- Delivery volume: 102 liter per hour @ 6.5 Bar.
- Mounts in-tank.
- Can be used with E85 fuel.
- Supply voltage 6 - 16.5 V.
- Operating voltage 13.8 V.
