BOSCH INJECTION VALVE
EV14 'Short' Injector. Add Injector extensions if required.

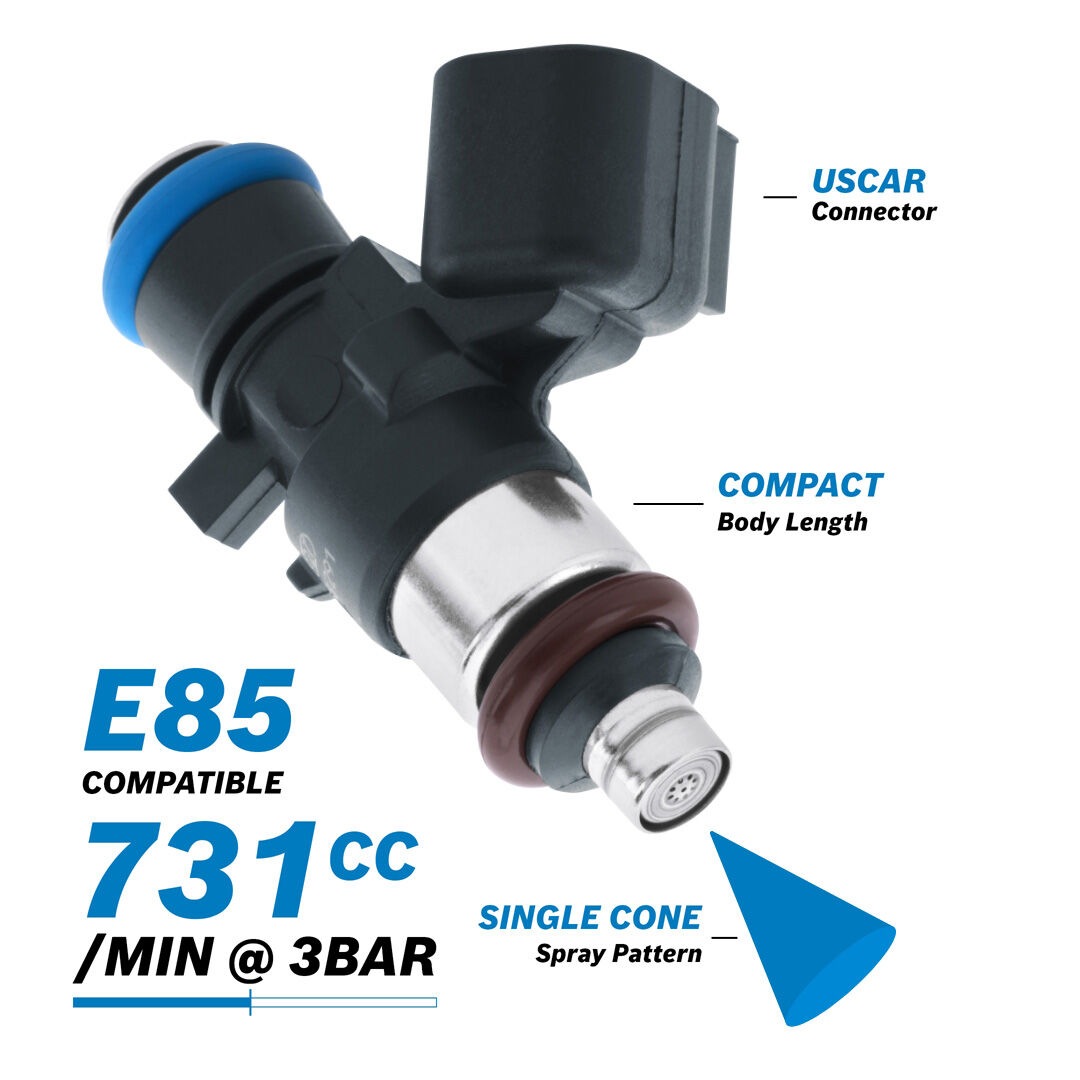

Description
| Volume | 731cc/min = 500g/min = 66lb/hr @ 3bar |
| Spray pattern | Single Cone |
| Body Length | Compact |
| Nozzle | Regular Tip |
| Resistance | 12 ohm |
| Connector | USCAR |
| E85 Compatible | Yes |
- Bosch Motronic brought electronic fuel injection to Formula One in 1982 and the technology established itself quickly, powering the 1983 world champion to victory.
- Today, Bosch fuel injection technology sets the standard in professional motorsport around the world. All Bosch Motorsport injectors are manufactured to the exacting standards of an Original Equipment Manufacturer (OEM): individual injector flow tolerances are less than +/- 1.5% compared to 'aftermarket' injectors approx. +/-5%
- EV 14 injection valves are the latest revision of the EV 6 injection valve technology.
- Bosch EV14 high precision injector internals are validated for use with E85 fuel.
- Bosch Motorsport has a comprehensive range of fuel injectors to suit almost any application. Size your injectors correctly for your goals to optimize drivability, efficiency and power.
THIS INJECTOR IS E85 COMPATIBLE.
118 HP Normally Aspirated - estimated (pump petrol)
98 HP Turbo up to 1 Bar Boost - estimated (pump petrol)
91 HP Turbo up to 2 Bar Boost - estimated (pump petrol)

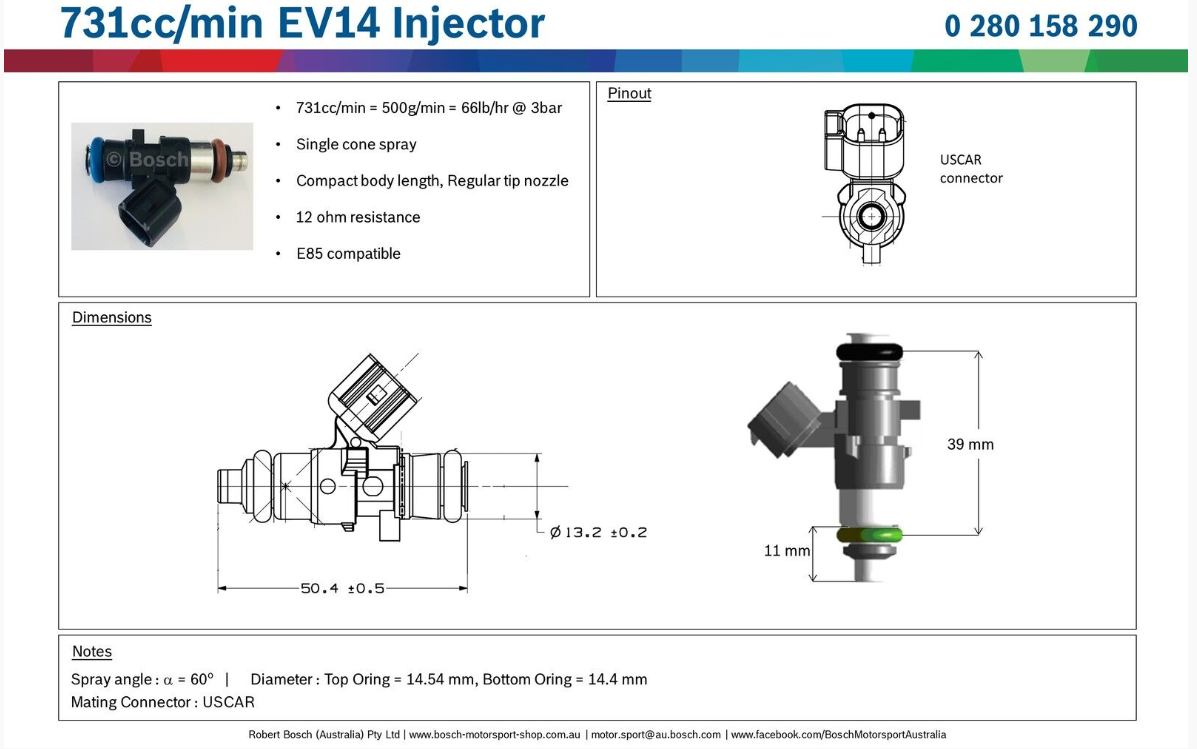

> Flow Rate - 731cc/min (66Lb/Hr) @3.0Bar
> O-Rings - 14mm Top / 14mm Bottom
> Connector Plug - USCAR (Oval)
> Impedance - 12.0 Ohms (High)

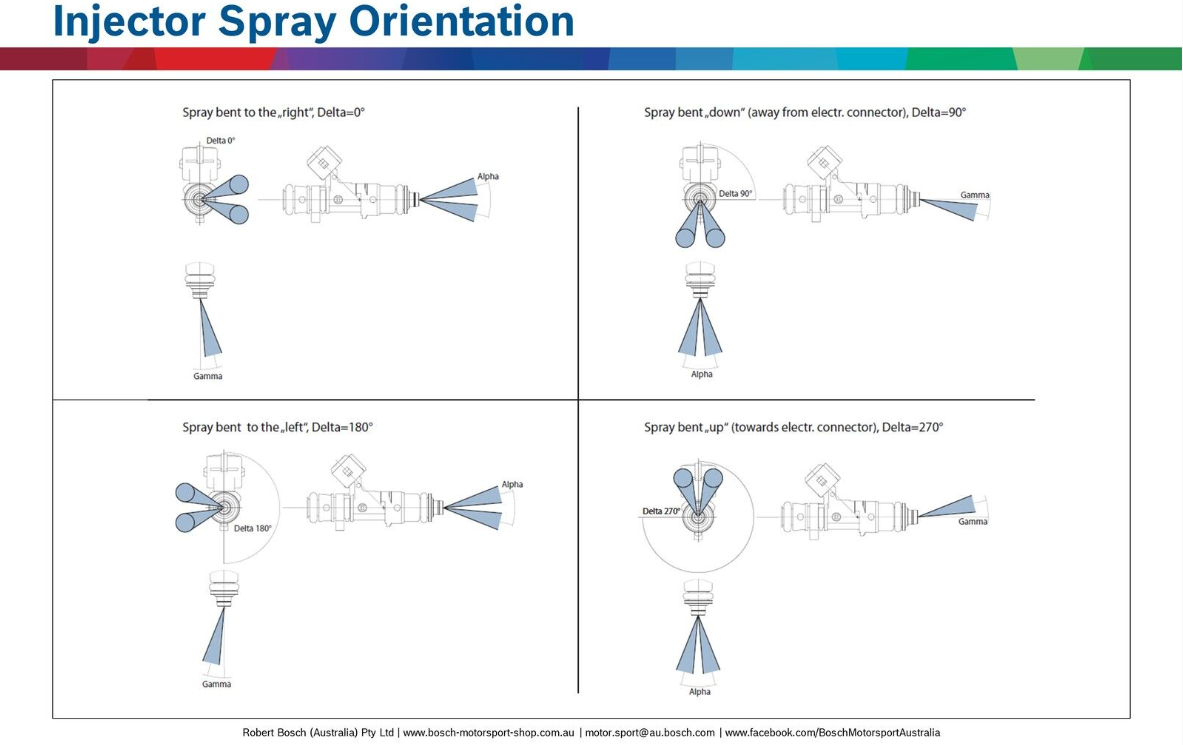

> Spray Pattern - 30 Degree Cone
> Manufacture - Bosch - Part Number 0 280 158 291, 0280158291, 0 280 158 290, 0280 158 290
Suits GM LS3.
