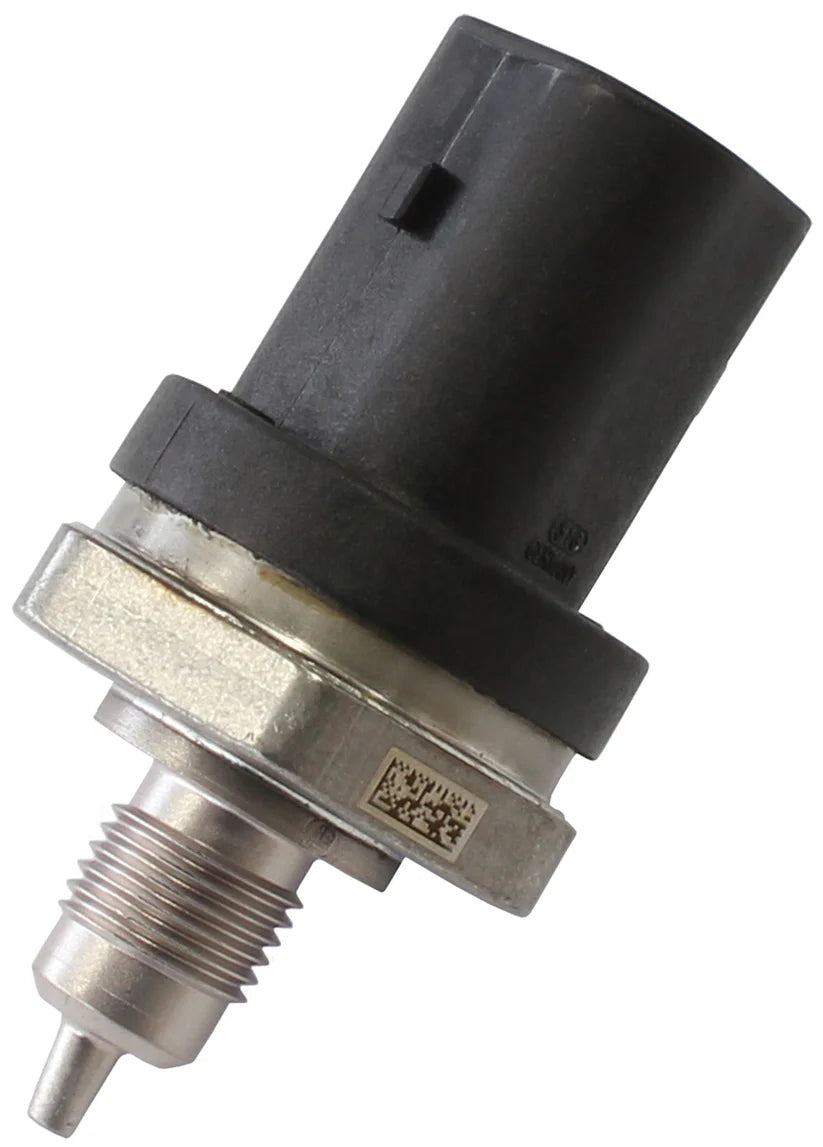

BOSCH PRESSURE SENSOR | 0261230482
Bosch Motorsport combined liquid pressure and temperature sensor is the one and only sensor you need for your race car. It features 2 sensors in one small compact unit. The liquid pressure reads 0-150 psi (0 to 10 bar) and the temperature rating is -40 to 140°C (-40 to 284°F). Using stainless steel internals means it is suitable for Diesel, petrol, alcohol-based fuels, water, engine oil and transmission oil.
Note- We highly recommend remote mounting these sensors as mounting straight onto an engine block can run vibrations through the sensor and cause premature failure of the sensor.
- 45° cone seat with Male M10 x 1.00mm fitting

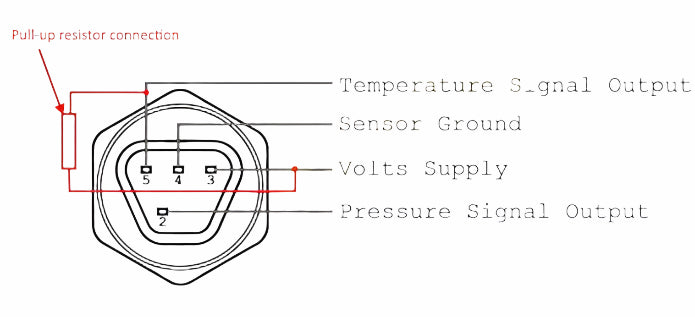

- Bosch Trapez 5-pin connector (4-used) (plug/pins sold separately CPS-151)
- Tightening torque 37.5Nm
